Product Overview
HES 1500 Grade 1 Electric Strike, For Cylindrical or Mortise Latchbolt Locks, Auto-Sensing 12/24 VDC, Field Selectable Fail Safe/Fail Secure
Works with all brands of cylindrical and mortise locksets without a deadbolt
The HES 1500 Series™ Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design available in eight finishes.
- Lock Type : Cylindrical Lock|Mortise Lock
- Latchbolt Accommodation : Up to 3/4"
- Includes 1J, 1K, 1KD, 1KM Options
- Stainless steel construction
- Tamper resistant
- Static strength 1500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
- Field adjustable integrated shim
- Electrolynx ® connectors
- Dual voltage 12/ 24 VDC/VAC
- LM – Lock monitor (detects when latchbolt is in a locked state)
- ANSI/ASTM E330
- ANSI/BHMA A156.31, Grade 1
- ANSI/SDI 250.13 Windstorm Resistant
- ASTM E152 Fire Door Compliant
- CAL FIRE, 3776-1654:0500
- California State Fire Marshal Listed (old)
- Environmental Product Declaration (EPD)
- Florida Building Code Approved TAS 201, 202, 203 (old)
- NFPA-252 fire door Compliant
- RoHS Compliant
- UL 1034 burglary-resistant listed
- UL 10C Fire-Rated, 1-1/2 Hour Double Door [Fail Secure only]
- UL 10C Fire-Rated, 3-Hour Single Door [Fail Secure Only]
- UL294 Listed

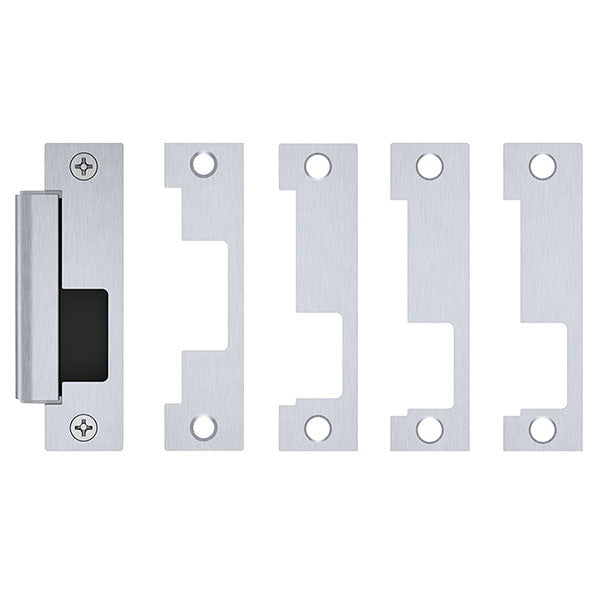

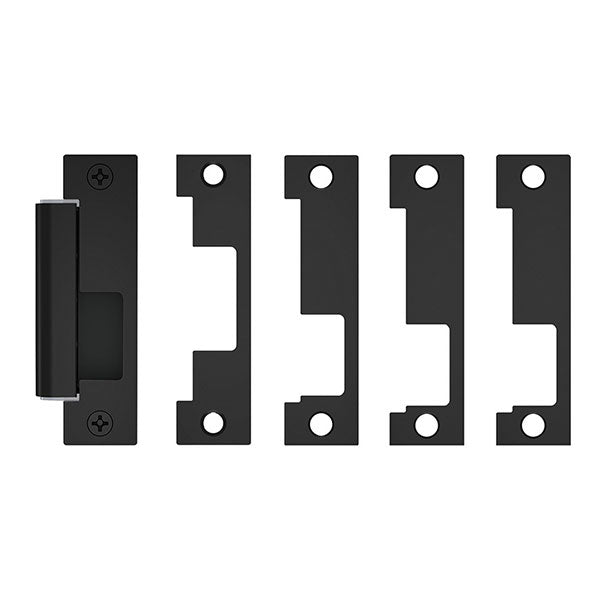

HES 1500C Complete Pac Fire-Rated Electric Strike for Mortise or Cylindrical Lock
