Product Overview

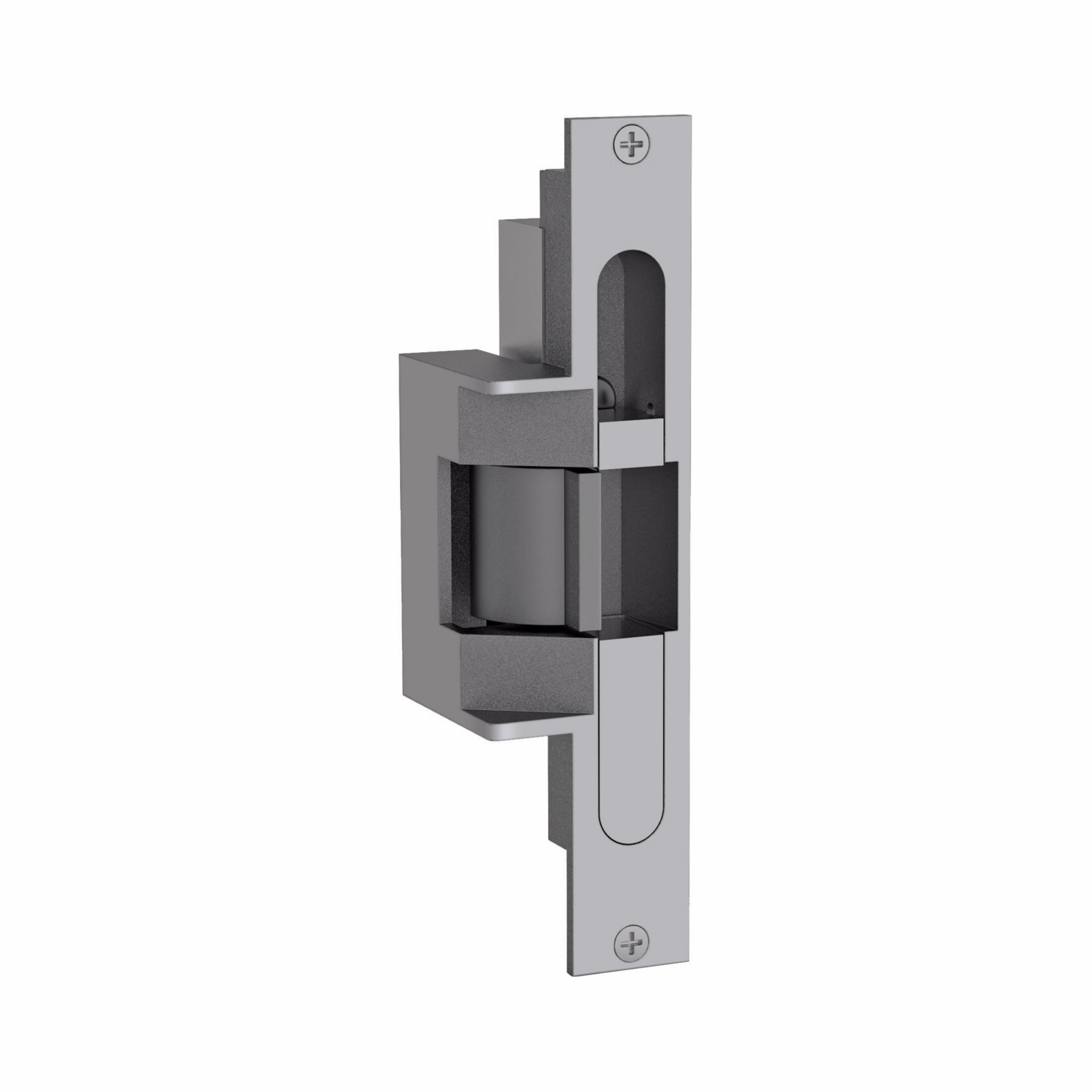

HES Folger Adam 310-3-1 Heavy-Duty Electric Strike, 1" Keeper, Satin Stainless Steel
The industrial-grade electric strike designed for extreme heavy-duty applications.
The 310 Series is a 3-hour fire-rated, industrial-grade electric strike designed for extreme heavy-duty applications. The all stainless steel construction of this device makes it ideal for high-abuse applications that would disable other electric strikes.
- For a lockset with both a 3/4" [19mm] throw latchbolt and a 1" [25.4mm] throw deadbolt - Deadbolt must be retracted manually - Position of block within cavity is adjustable for RH and LH applications
- 630 satin stainless steel finish
- Tamper-resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance rating 1,000,000 cycles
- Horizontally adjustable keeper allows for door and frame misalignment
- Non-handed
- Plug-in connector
- LCBMA – Latchbolt & Locking Cam Monitor with Auxiliary Switch
- ANSI/BHMA A156.31, Grade 1
- RoHS Compliant
- UL 1034 burglary-resistant listed
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- UL294 Listed
| Brand |
HES |
|---|---|
| Finishes |
630 Satin Stainless Steel |
| Fail Secure / Fail Safe |
-F Fail Safe, Fail Secure (standard) |
| Voltage |
12VDC, 24VDC |
| ANSI/BHMA Standard |
ANSI/BHMA A156.31, Grade 1 |
| Usage |
Heavy Duty |
| Fire Rating |
UL 10C fire rated, 3-hour double door (fail secure only), UL 10C fire rated, 3-hour single door (fail secure only) |
| Part Type |
Complete Electric Strike |
| Lock Type Compatibility |
Cylindrical Lock, Mortise Lock, Mortise Lock with Deadbolt |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
HES Folger Adam 310-3-1 Heavy Duty Electric Strike for a lock with both a 3/4" throw latchbolt and a 1" throw deadbolt
