HES Folger Adam 310-4-X Heavy Duty Electric Strike for Surface Vertical Rod Exit Devices

$1,158.12
This item ships FREE! Usually Ships:  2-3 Business Days
  • For use with double doors with surface vertical rod exit devices
  • Designed for extreme heavy-duty applications
  • Constructed entirely of stainless steel

Available Options:

Clear
Added to Cart

Product Overview

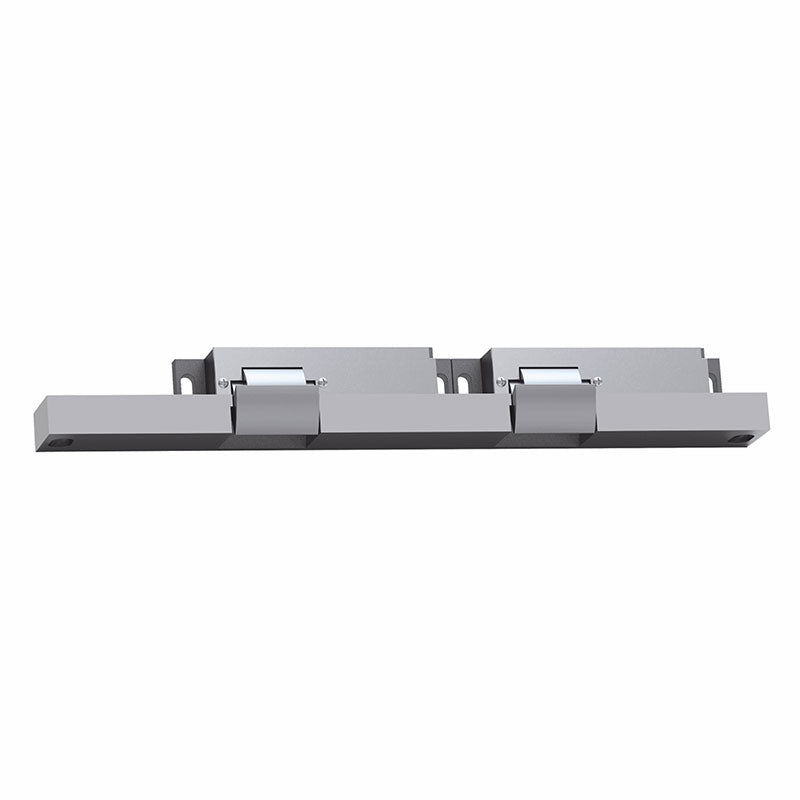

HES Folger Adam 310-4-X Heavy-Duty Electric Strike for Double Doors with Surface Vertical Rod Exit Devices, 630 Satin Stainless Steel


The 310-4-X vertical surface-mounted series is designed for heavy-duty applications on double doors
The 310-4-X vertical surface-mounted series is designed for heavy-duty applications on double doors. The all stainless steel construction of this device makes it ideal for high-abuse applications.
  • 630 satin stainless steel finish
  • Tamper-resistant, heavy-duty construction
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1,000,000 cycles
  • Adjustable keeper to allow for door and frame misalignment
  • Pullman keeper
  • Non-handed
  • Fail secure (standard)
  • Plug-in connector
Models

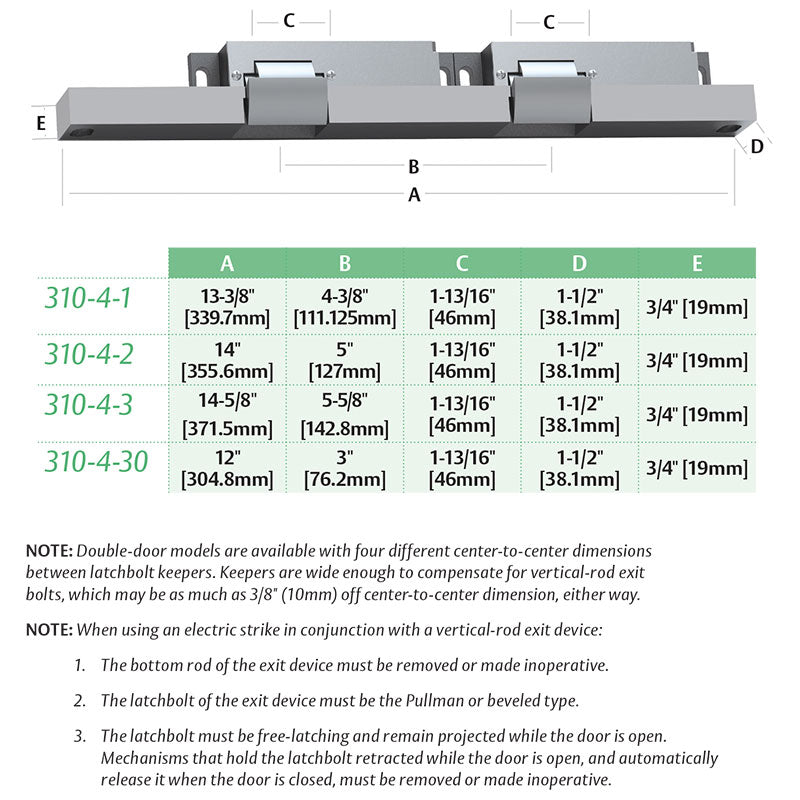

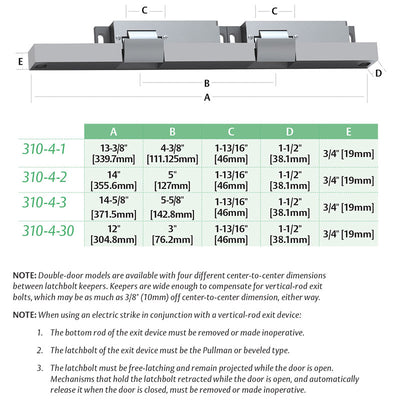

  • 310-4-1 For both leaves of a pair of doors when spacing of the vertical rod is between 4" [101.6mm] and 4-3/4" [120.65mm] PK keeper standard
  • 310-4-2 For both leaves of a pair of doors when spacing of the vertical rods is between 4-5/8" [111.125mm] and 5-3/8" [136.5mm] PK keeper standard
  • 310-4-3 For both leaves of a pair of doors when spacing of the vertical rods is between 5-1/4" [133.35mm] and 6" [152.4mm] PK keeper standard
  • 310-4-30 For both leaves of a pair of doors when spacing of the vertical rods is between 2-5/8" [66.675mm] and 3-3/8" [85.725mm] PK keeper standard
Optional Features
  • Fail-Safe
  • LCBMA – Latchbolt & Locking Cam Monitor with Auxiliary Switch
Certifications / Listings
  • UL 1034, burglary-resistant listed
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1
  • RoHS compliant
Models: 310-4-1-12D-630, 310-4-1-24D-630, 310-4-1-F-12D-630, 310-4-1-F-24D-630, 310-4-1-12D-630-LCBMA, 310-4-1-24D-630-LCBMA, 310-4-1-F-12D-630-LCBMA, 310-4-1-F-24D-630-LCBMA, 310-4-2-12D-630, 310-4-2-24D-630, 310-4-2-F-12D-630, 310-4-2-F-24D-630, 310-4-2-12D-630-LCBMA, 310-4-2-24D-630-LCBMA, 310-4-2-F-12D-630-LCBMA, 310-4-2-F-24D-630-LCBMA, 310-4-3-12D-630, 310-4-3-24D-630, 310-4-3-F-12D-630, 310-4-3-F-24D-630, 310-4-3-12D-630-LCBMA, 310-4-3-24D-630-LCBMA, 310-4-3-F-12D-630-LCBMA, 310-4-3-F-24D-630-LCBMA, 310-4-30-12D-630, 310-4-30-24D-630, 310-4-30-F-12D-630, 310-4-30-F-24D-630, 310-4-30-12D-630-LCBMA, 310-4-30-24D-630-LCBMA, 310-4-30-F-12D-630-LCBMA, 310-4-30-F-24D-630-LCBMA
Brand

HES
Finishes

630 Satin Stainless Steel
Fail Secure / Fail Safe

-F Fail Safe, Fail Secure (standard)
Voltage

12VDC, 24VDC
ANSI/BHMA Standard

ANSI/BHMA A156.31, Grade 1
Usage

Heavy Duty
Part Type

Complete Electric Strike
Lock Type Compatibility

Vertical Rod Exit Device
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
