Product Overview

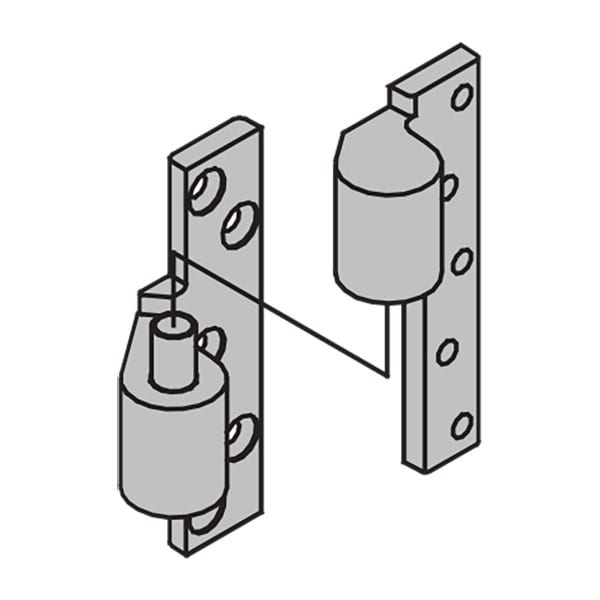

3/4" Offset Intermediate Pivot
- 7215-7226-7227 intermediate pivot is used with 7215, 7226, and 7227 offset pivots
- Use for door weight over the pivot set limit. Use one additional pivot for every additional 100 pounds
- Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
- Handed LH or RH
- Made from cast brass
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156.4 C07321 |
|---|---|
| Brand |
Ives |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL Listed 20 minute fire doors |
| Hand |
RH (Right Hand)LH (Left Hand) |
| Pivot Type |
Intermediate Pivots |
| Usage |
Standard Duty |
Ives 7215-7226-7227 INT 3/4" Offset Intermediate Pivot
