Ives

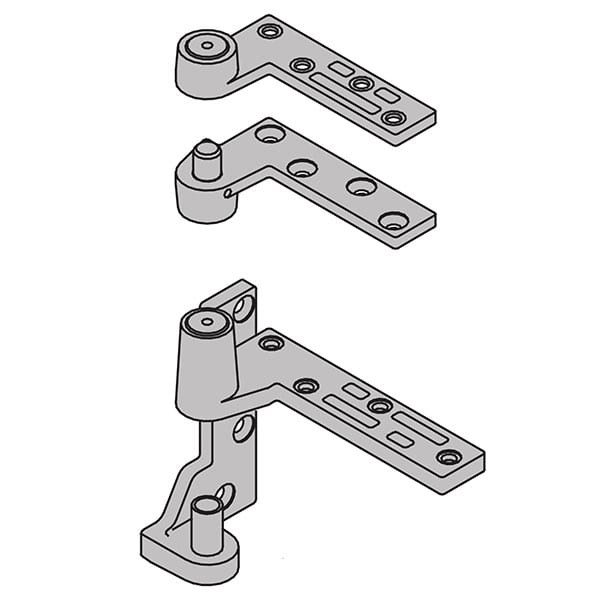

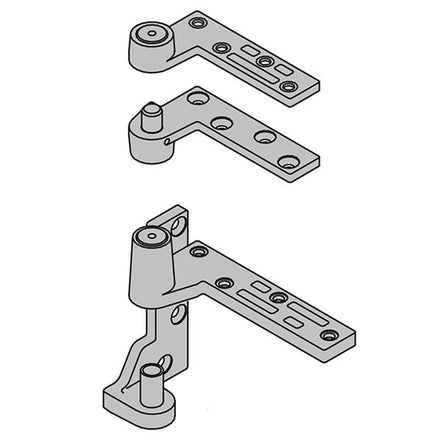

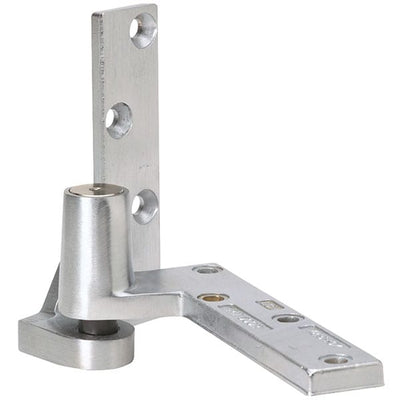

Ives 7215 Jamb Mount 3/4" Offset Pivot Set

$421.11
This item ships FREE! Usually Ships:  1-2 Business Days
  • For Doors up to 500 lbs.
  • Includes top and bottom pivot
  • UL Listed, 20 minute fire doors

Available Options:

Clear
Added to Cart

Product Overview

  • Maximum door load 500 pounds
  • Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
  • Vertical adjustment range 3/16", with positive locking
  • Handed LH or RH
  • Made from cast brass
  • 7215 Set (7215 Top and 7215 Btm)
  • Top, header mount
  • Bottom, jamb mount
ANSI/BHMA Standard

Meets ANSI/BHMA A156.4 C07131
Brand

Ives
Door Weight

up to 500 lbs.
Finish

Satin Chrome
Finishes

626 Satin Chrome
Fire Rating

UL Listed 20 minute fire doors
Hand

LH (Left Hand)RH (Right Hand)
Pivot Type

Offset Pivots
Usage

Standard Duty
7215 Jamb Mount 3/4" Offset Pivot Set
Ives 7215 Jamb Mount 3/4" Offset Pivot Set
