Product Overview

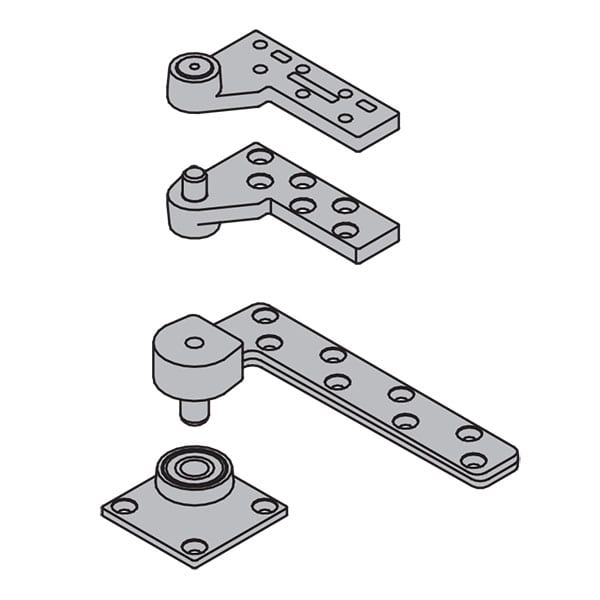

3/4" Offset pivot, 1000lb with top header mount and bottom base mount, fire rated - for Doors up to 1000 lbs.
- 630 Stainless Steel Finish
- For use with Heavy/High Traffic Doors
- Maximum door load 1000 pounds
- Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
- Vertical adjustment range 3/16", with positive locking
- Non-handed
- Made from 304 series stainless steel
- Use 7230F INT Intermediate Pivot (handed) as needed
- 7230F Set (7230F Top and 7230F Btm)
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156.4 C07162 |
|---|---|
| Brand |
Ives |
| Door Weight |
up to 1000 lbs. |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL Listed 3 hour fire doors |
| Handing |
Non-Handed |
| Pivot Type |
Offset Pivots |
| Usage |
Heavy Duty |
Ives 7230F 3/4" Offset Pivot Set, 1000 lb, Fire Rated
