Ives

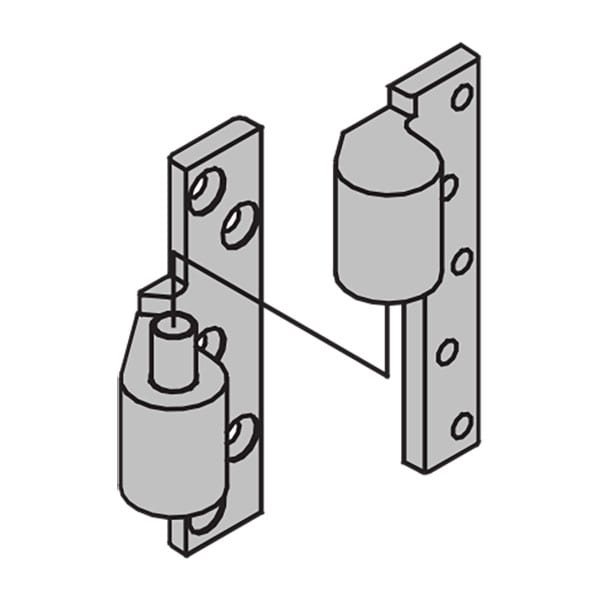

Ives 7230F-7237F INT 3/4" Offset Intermediate Pivot, Fire-Rated

$421.11
This item ships FREE! Usually Ships:  5-10 Business Days
  • Full Mortise
  • Handed - 626 Satin Chrome Finish
  • UL Listed, 3 Hour Fire-Rated

Available Options:

Clear
Added to Cart

Product Overview

  • This intermediate pivot is used with 7230F and 7237F offset pivotsƒ
  • Use for door weight over the pivot set limit. Use one additional pivot for every additional 100 pounds
  • Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"ƒ
  • Handed LH or RH
  • Made from 304 series stainless steel
ANSI/BHMA Standard

Meets ANSI/BHMA A156.4 C07311
Brand

Ives
Finish

Satin Chrome
Finishes

626 Satin Chrome
Fire Rating

UL Listed 3 hour fire doors
Hand

RH (Right Hand)LH (Left Hand)
Pivot Type

Intermediate Pivots
Usage

Standard Duty
7230F-7237F INT 3/4" Offset Intermediate Pivot, Fire-Rated
Ives 7230F-7237F INT 3/4" Offset Intermediate Pivot, Fire-Rated
