Product Overview
- 626 Satin Chrome Finish
- Maximum door load 500 pounds
- Recommended for use with 1-3/4" minimum door thickness
- Not recommended for doors larger than 4'0" X 8'0
- Easy installation, tilt on bearing and bearing pin
- Adjustable floor to door clearance 3/16" to 3/4"
- Vertical adjustment range 3/16", with positive locking
- Made from cast brass
- UL Listed, 20 minute fire doors
- 7255 Set (7255 Top and 7255 Btm)
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156.4 C07032 |
|---|---|
| Brand |
Ives |
| Door Weight |
up to 500 lbs. |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL Listed 20 minute fire doors |
| Hand |
Non-handed |
| Pivot Type |
Center Hung Pivots |
| Usage |
Standard Duty |

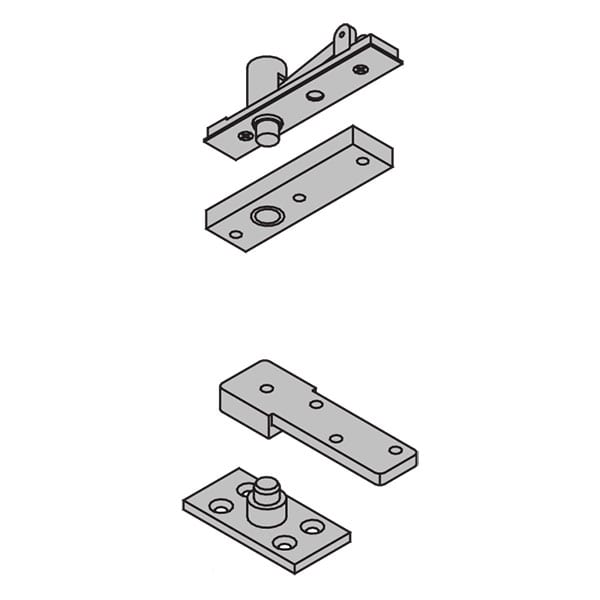

Ives 7255 Center Hung Pivot Set
