Locknetics

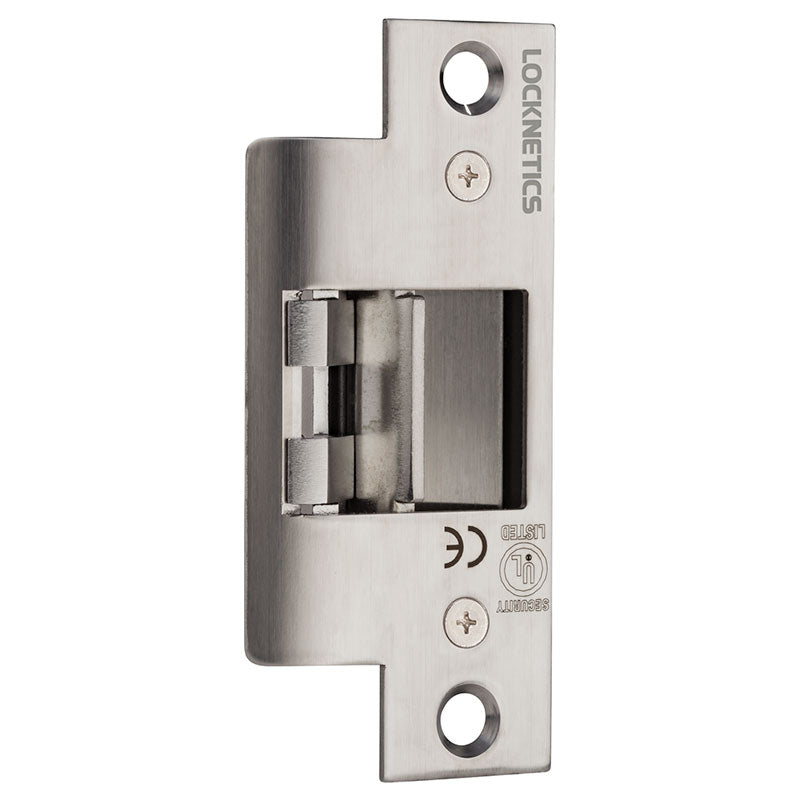

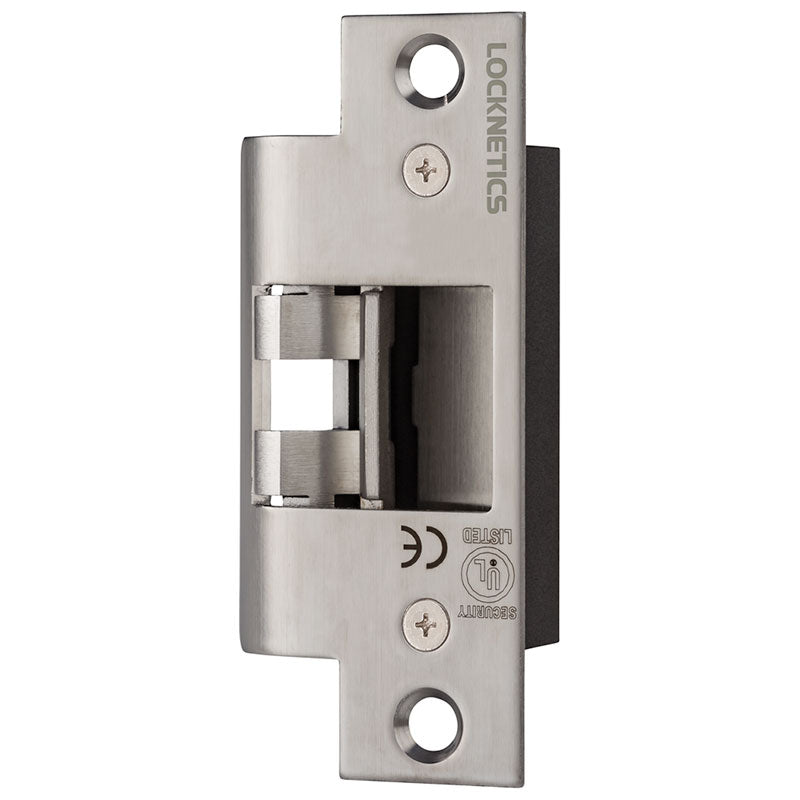

Locknetics NC450 No Cut Electric Strike for Cylindrical Locks

$152.12
Usually Ships:  1-2 Business Days
  • Includes radius and square edge stainless steel faceplates (4 7/8" x 1 1/4")
  • Field selectable 12/24 VDC
  • Voltage spike suppressor included

Available Options:

Clear

Product Overview

Locknetics NC Series Electric Strike, 12/24DC, Fail Safe/Fail Secure, Satin Stainless Steel


The no cut electric door strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. No cutting on the frame is required. Simply adjust the vertical alignment feature to the latch bolt centerline and install.
  • No frame cutting is required
  • Low profile
  • Field selectable fail-safe and fail-secure (fail-secure default) with simple and easy screw reversal
  • Two face plates included: Radius and square edge stainless steel (4 7/8” x 1 ¼”)
  • Field selectable 12/24 VDC
  • Voltage spike suppressor included
Specifications
  • UL1034 Burglar-resistant electric locking mechanisms, listed
  • UL294 (indoor), listed
  • Static strength of 1500 lb. static load, UL certified
  • Dynamic strength of 70 ft.-lb. dynamic load, UL certified
  • 250,000 cycles endurance, UL certified
Electrical
  • Dual voltage: 12VDC @ 0.3A/24VDC @ 0.15A
Brand

Locknetics
Finishes

630 Satin Stainless Steel
Usage

Standard Duty
Part Type

Complete Electric Strike
Lock Type Compatibility

Cylindrical Lock
