Product Overview

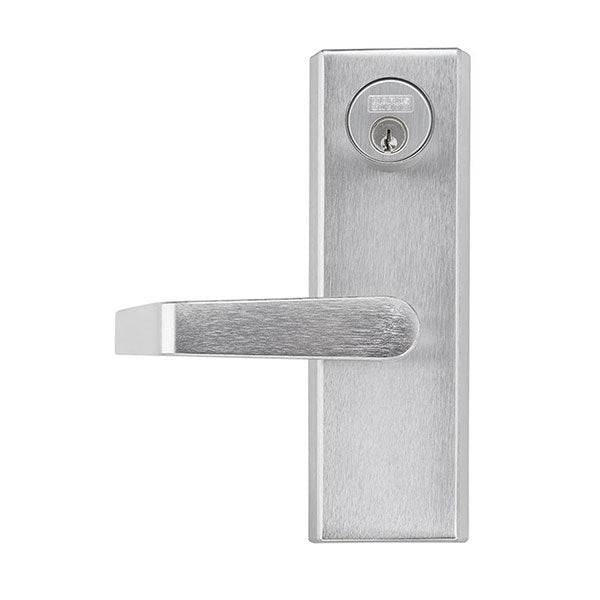

Marks USA MESC600F EL/EU Electrified Escutcheon Lever Trim for M9900 Series Exit Device, Includes Cylinder, US26D Satin Chrome Finish
- Available Fail Safe (EL) or Fail Secure (EU)
- Standard Voltage 24VDC 150mA
- Optional 12V 250mA
- 26D Finish
- For use with rim and vertical rod exit devices (X-it M9900 Series)
- Thru bolt design
- Non Handed design, easily field reversible
- Standard 1-3/4” door thickness
- Standard Marks or Schlage “C” Keyway 1-1/4" mortise cylinder with special cam
| Brand |
Marks USA |
|---|---|
| Finishes |
US26D (626) Satin Chrome |
| Voltage |
12V 250mA, 24VDC 150mA |
| Usage |
Heavy Duty |
| ANSI Grade |
ANSI Grade 1 |
| Handing |
Non Handed – Completely Reversible |
| Cylinder |
Mortise Cylinder (included) |
| Keyway |
Schlage C Keyway |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Door Thickness |
1-3/4" |
| Compatible Devices |
M9900 Series |
| Cylinder Format |
Conventional |
