Product Overview

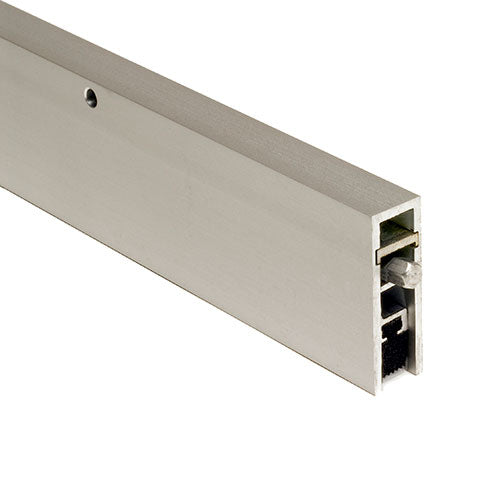

National Guard Products (NGP) 223N Surface EZ-Touch Automatic Door Bottom with Neoprene Seal
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
- Very good abrasion resistance, tensile strength and memory
- Flame resistant
- Moisture resistant
- Temperature range -20°F to 200°F
- Good resistance to ozone, sunlight and aging
- The EZ-Touch door bottom requires only 3 to 5 pounds of pressure to activate
- Perfect for accessibility applications and still provides an effective seal
- Available 23-1/4" net to 48" in length
- End caps furnished standard

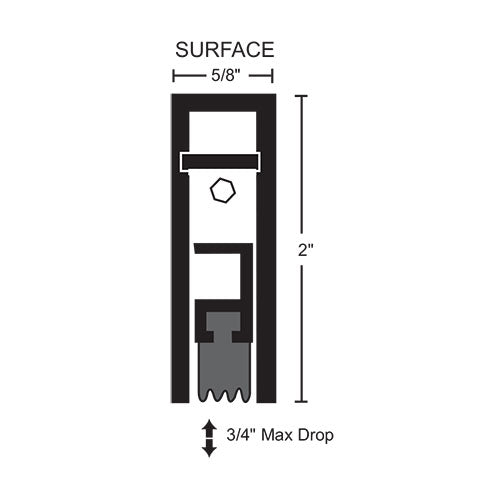

- 3/4" max drop
- Anodized aluminum or DKB finish
| Brand |
NGP (National Guard) |
|---|---|
| Finish |
Dark BronzeAnodized Aluminum |
| Finishes |
DKB - Dark BronzeClear Anodized Aluminum |
| Fire Rating |
Fire Rated – UL10C – Positive Pressure |
| Insert/Seal Type |
Neoprene or EPDM |
| Length |
48"36" |
NGP (National Guard) 223N E-Z Touch Surface Mounted Automatic Door Bottom
