Product Overview

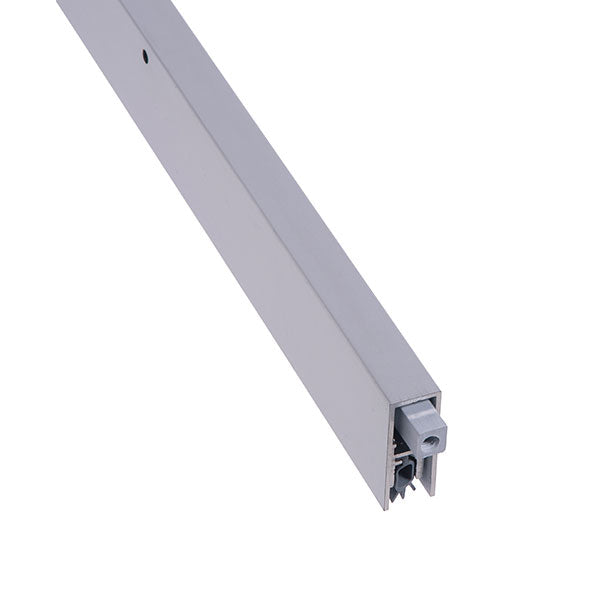

National Guard Products (NGP) 780S Anodized Aluminum Slimline Automatic Door Bottom with Silicone Seal
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer: Siloxane
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Mounts on push side of door
- Use with a threshold for maximum sealing capability
- Specify exact net length required to avoid field sizing
- 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
- End caps furnished standard
- Will work half mortised on swing or sliding doors
- Endurance tested to 5 million cycles

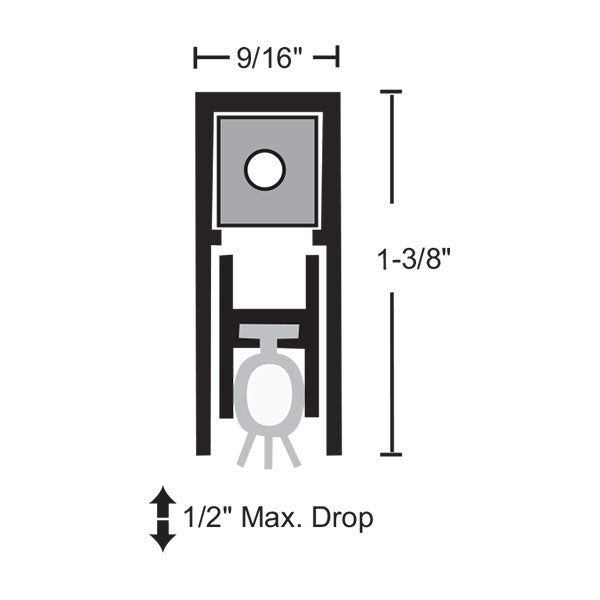

- 1/2" max. drop
- Silicone is gray
- Anodized aluminum
| Brand |
NGP (National Guard) |
|---|---|
| Finish |
Anodized Aluminum |
| Fire Rating |
Fire Rated – UL10C – Positive Pressure |
| Insert/Seal Type |
Silicone |
| Length |
48"36" |
NGP (National Guard) 780S Slimline Surface Mounted Automatic Door Bottom
