NGP (National Guard) L-GLF100-TB Thru-Bolted Vision Lite Frame for 3/16", 1/4", or 5/16" Thick Glass, 1-3/4" Thick Door

$82.87

Usually Ships: 10-15 Business Days

Available Options:

Finish
Order Size

Quantity:

Added to Cart

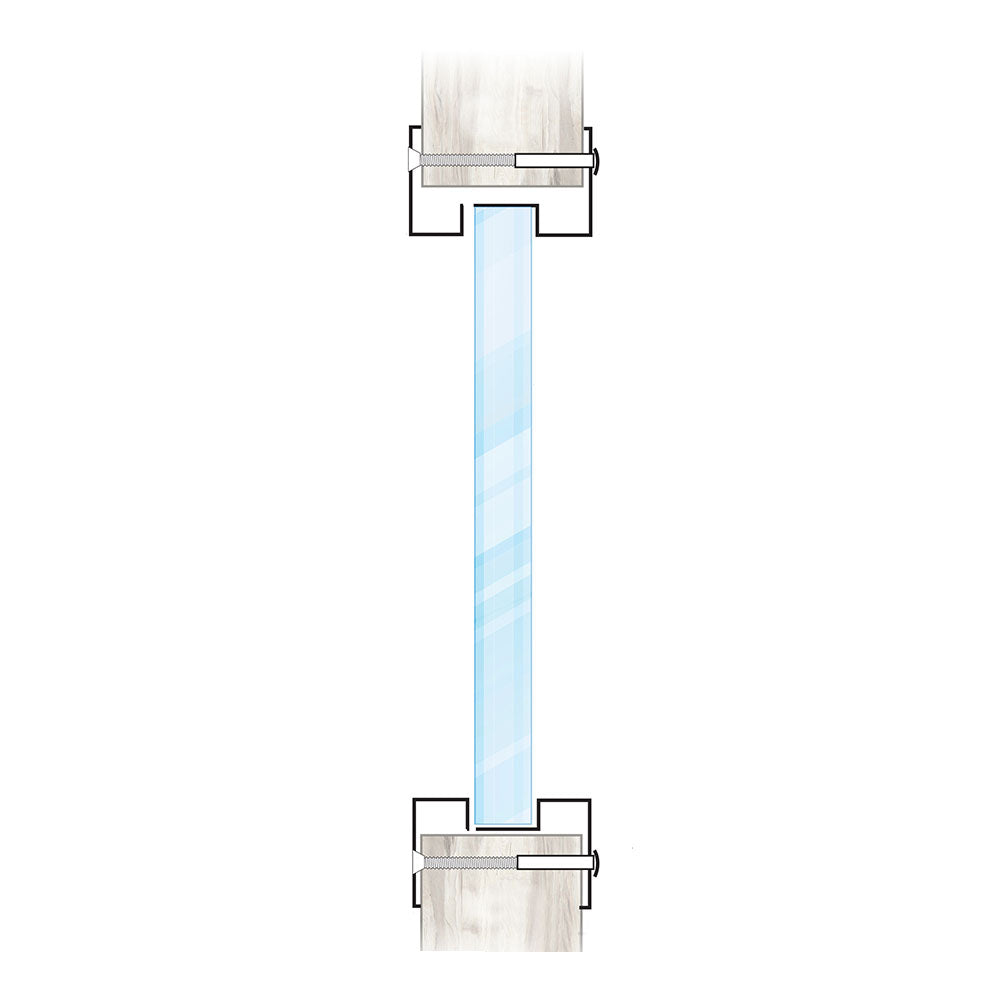

NGP L-GLF100-TB Thru-Bolted Vision Lite Frame for 1-3/4" Thick Doors and 3/16" to 5/16" Glass

For 1-3/4" Thick Doors and 3/16", 1/4", or 5/16" Glass
18 Ga. Cold Rolled Steel
Mitered and Welded Corners
Welded Reinforcing Clips at Corners
Countersunk Mounting Screw-Holes
Thru-Bolts for 1-3/4" Door
Door Prep Requires Square Cut Corners
Gray Primer (GPZ) Powder Coat Finish
Designed for Use on 1-3/4" Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16"
Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
Glass / Glazing Tape Not Included - 1" thick insulated glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
Fire-rated up to 3 hours

Brand	NGP (National Guard)
Finishes	GPZ - Gray Primer
Order Size	12" x 12", 18" x 18", 18" x 24", 18" x 30", 18" x 32", 18" x 60", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56", 24" x 60", 24" x 64", 5" x 35", 6" x 27", 7" x 22", 8" x 18", 8" x 32", 8" x 36"
Frame Profile	Standard
Frame Construction	18 Gauge Cold Rolled Steel
Frame Fasteners	Thru-Bolts for 1-3/4" Door
Frame Fire-Rating	3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed
Glass Thickness	3/16", 1/4" or 5/16"
Door Thickness	1-3/4"
Buy American Act Compliance	Meets Buy Amercian Act - Made in USA

L-GLF100-TB_cutsheet

NGP (National Guard) L-GLF100-TB Thru-Bolted Vision Lite Frame for 3/16", 1/4", or 5/16" Thick Glass, 1-3/4" Thick Door
