PBB

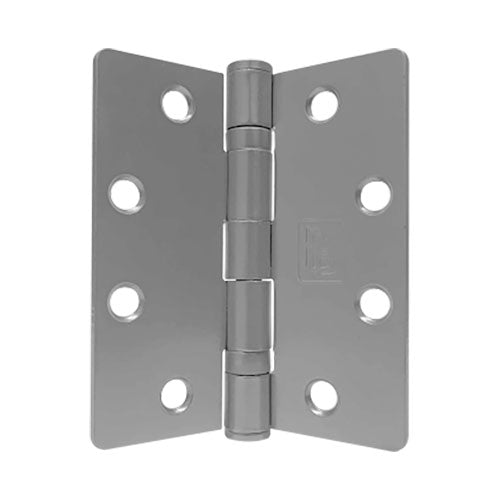

PBB BB51 4540 NR2 4.5″ x 4.0″ Storefront Ball Bearing Hinge, 5/32” Radius Corner

$22.66
Usually Ships:  2-3 Business Days
  • Meets ANSI/BHMA A156.1 standards
  • .134 standard weight, ball bearing
  • Typically used with aluminum storefront doors

Available Options:

Clear

Product Overview

PBB BB51-4540-NR2 4-1/2 x 4 Standard Weight Ball Bearing Hinges for Storefront Doors, Five Knuckle, 5/32” Radius Corner, Non-Removable Pin, Stainless Steel Base


PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).
Hinge Swaging: A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16” clearance between leaves.
  • For use on medium weight doors or doors requiring average frequency service
  • Ball bearing hinges must be used on doors in conjuction with door closers and on all fire-rated openings
  • All hinges are ANSI template
Models: BB51-4540-630-NR2, BB51-4540-800-NR2, BB51-4540-810-NR2
Brand

PBB
Finishes

630 Satin Stainless Steel, 810 Dark Bronze Powder Coat, US1D/800 Black Powder Coat
Hinge Type

Full Mortise
Special Feature

Non-Removable Pin, Radius Corner
Size

4.5" x 4"
Knuckles

Five
Bearings

Ball Bearing
Material

Stainless Steel
Gauge

0 .134
Usage

Medium Duty
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
