Product Overview

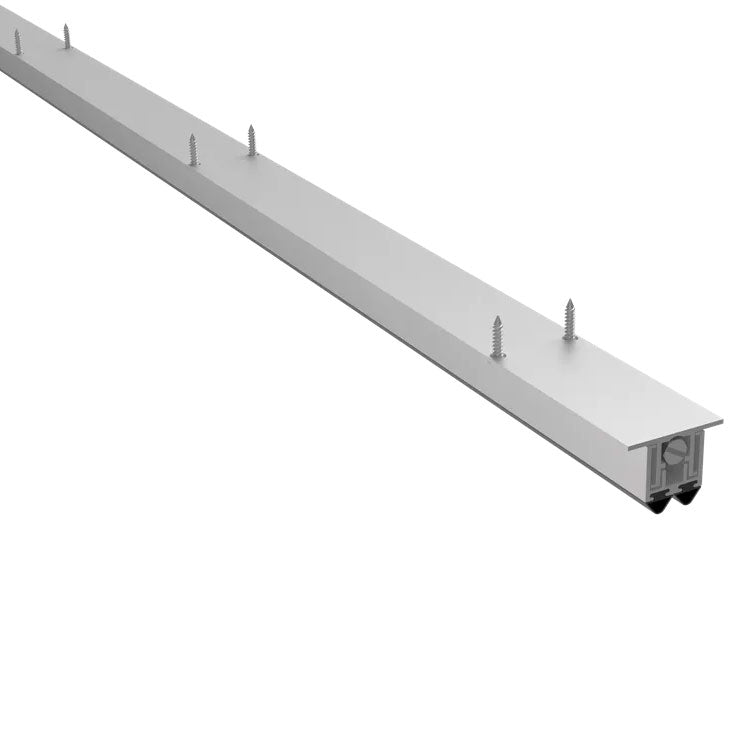

Pemko 420APKL Full Mortise Automatic Door Bottom for Hollow Metal Doors with PemkoPrene Insert

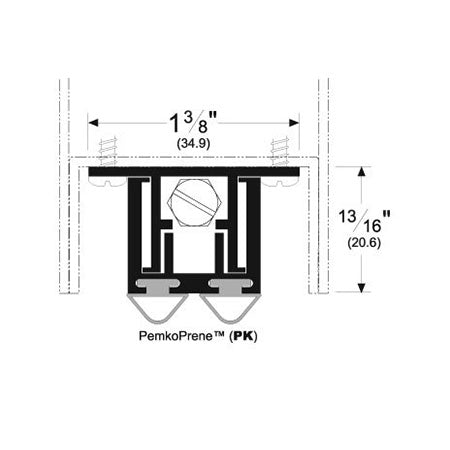

The 420 Series Full Mortise Automatic Door Bottom is specifically designed for hollow metal doors with a 13/16" inverted channel. It features a heavy-duty mechanism for smooth operation and is fitted with two fire-rated rubber seals. This door bottom prevents drafts, dust, moisture, smoke, fire, and sound from entering the gap under the door. It can be easily cut in the field for additional adjustment. The aluminum casing is fully mortised, maintaining the appearance of the door alleviating the need for end plates.
420APKL: A - Mill Finish Aluminum Aluminum with Black PemkoPrene insert
- For Hollow Metal Doors
- Maximum drop is 1/2"
Ratings
- Air Infiltration Tested Air Infiltration Tested
- Sound Tested - ASTM E90 Sound Tested - ASTM E90
- Smoke Tested - UL1784 Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10 Underwriters Laboratory 4L10
- GREENGUARD Gold Certified GREENGUARD Gold Certified
| Brand |
Pemko |
|---|---|
| Finish |
Aluminum |
| Finishes |
A - Mill Finish Aluminum |
| Fire Rating |
Fire Rated - UL10C - Positive Pressure |
| Insert/Seal Type |
Neoprene or EPDM |
| Length |
48"42"36" |
Pemko 420APKL Full Mortise Automatic Door Bottom for Hollow Metal Doors with PemkoPrene Insert
