Pemko

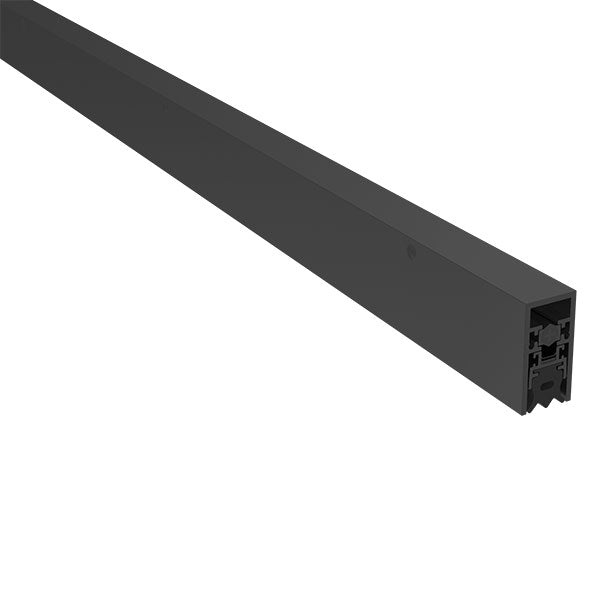

Pemko 4301BSPRL Black Surface Applied or Semi-Mortise Automatic Door Bottom with Sponge Neoprene Insert

$180.71
Usually Ships:  10-20 Business Days
  • Surface and Semi-Mortise, Black Finish
  • Sound and Air Infiltration Tested
  • Fire-Rated and Smoke Tested

Available Options:

Clear
Added to Cart

Product Overview

Pemko 4301BSPRL Black Surface Applied or Semi-Mortise Automatic Door Bottom with Sponge Neoprene Insert

Smoother action positive seal mechanism. All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger that contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold.

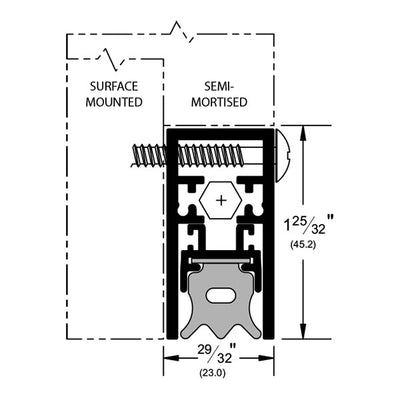

  • WIDTH: 29/32” (23.0 mm)
  • HEIGHT: 1-25/32” (45.2 mm)

4301BSPRL: BSP - Black Suede Powder Coat with Black Sponge EPDM insert

Ratings

  •  Air Infiltration Tested
  •  Sound Tested - ASTM E90
  •  BHMA Certified
  •  Smoke Tested - UL1784
  •  Fire Rated - UL10C - Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

Brand

Pemko
Finish

Black
Finishes

BSP Black Suede Powder Coat
Fire Rating

UL/cUL listed
Insert/Seal Type

Neoprene or EPDM
Length

48"36"
