Product Overview

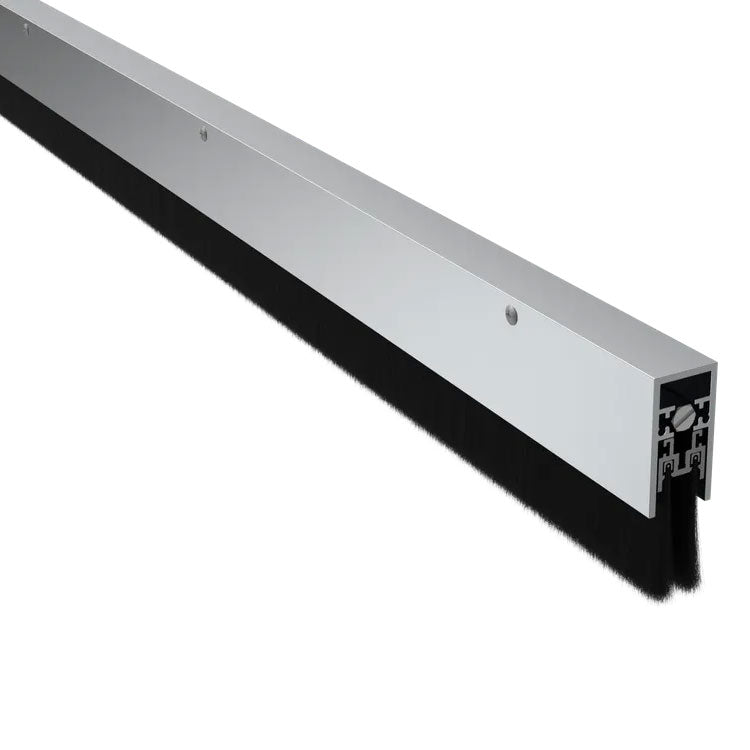

Pemko 4301_NBL Surface Applied or Semi-Mortise Automatic Door Bottom with Dual Nylon Brush Inserts
The 4301 Series Non-Handed, Semi-Mortise and Full Surface Automatic Door Bottom is a heavy-duty solution for preventing air, light, sound, fire, smoke, dust, and moisture from entering the gap under doors. It features a drop-down seal that is lowered when the door is closed. It can be surface mounted or semi-mortised applied to the face of the door.
- BHMA logo represents products that meet the requirements of ANSI/BHMA 156.22-2012 for latching force and air infiltration.
- Smoother action positive seal mechanism.
- All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal.
- The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold.
- All Pemko automatic door bottoms are provided at NET length.
- All Pemko automatic door bottoms can be trimmed down by as much as 2" in the field (stock lengths only).
- The drop-bar seal actuation mechanism causes the drop-bar seal to always actuate on the hinge side first.
- This feature prevents the seal from skidding along the floor / threhold while the door is being closed.
- Door hang-up will not occur.
- This automatic door bottom is supplied with a Nylon Brush ("NB") insert

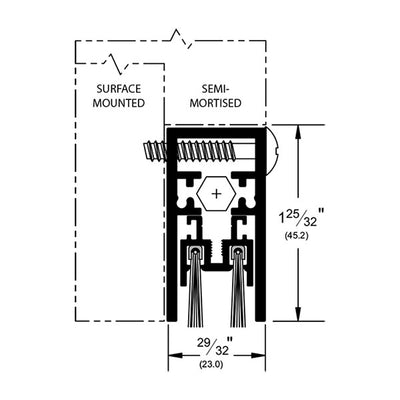

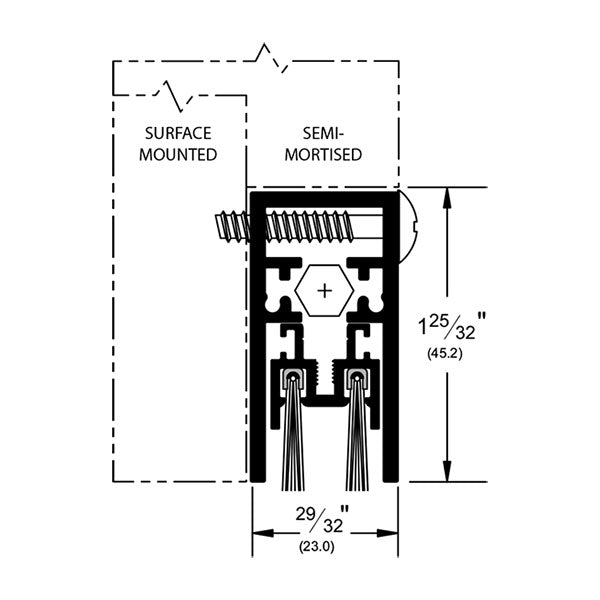

- WIDTH: 29/32” (23.0 mm)
- HEIGHT: 1-25/32” (45.2 mm)
- 4301CNBL: C - Clear Anodized Aluminum with Gray Nylon Brush insert
- 4301BSPNBL: BSP - Black Suede Powder Coat Aluminum with Black Nylon Brush insert
- 4301DNBL: D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
- Air Infiltration Tested
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand |
Pemko |
|---|---|
| Length |
36", 48" |
| Finishes |
BSP Black Suede Powder Coat, C – Clear Anodized Aluminum, D - Dark Bronze Anodized Aluminum |
| Fire Rating |
UL/cUL listed |
