Product Overview

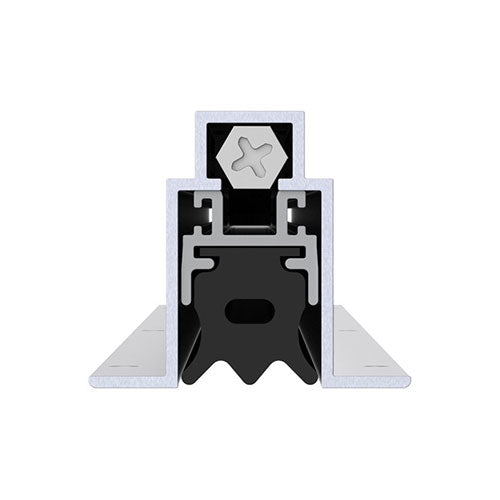

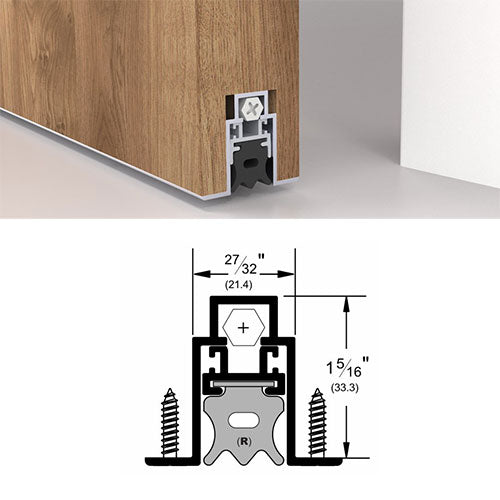

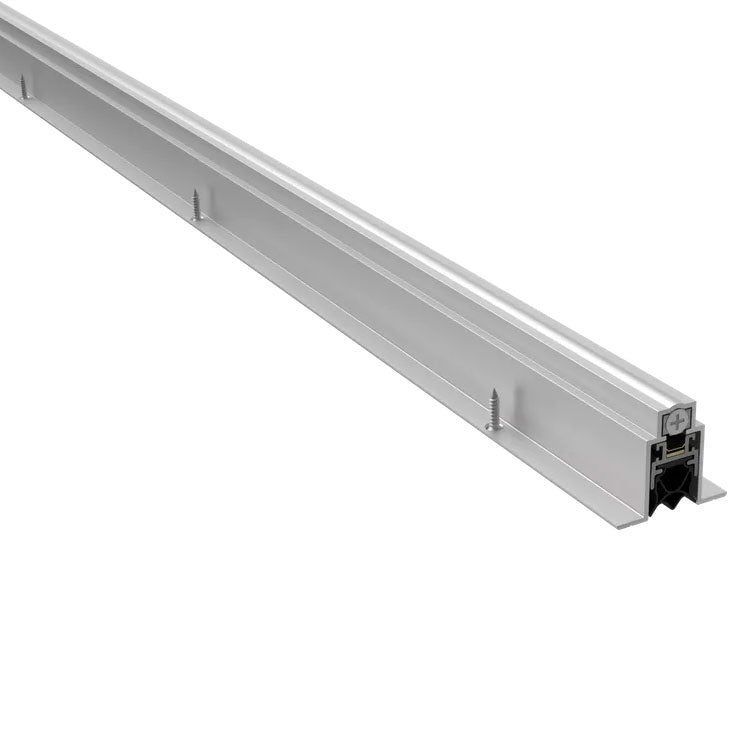

Pemko 434ARL Full Mortise Automatic Door Bottom, Mill Finish Aluminum, Black Sponge EPDM insert
All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger that contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold.
- Smooth action, positive seal mechanism.
- All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal.
- The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold.
- Low Closing Force and Fully Mortise Application means this Drop Seal satisfies requirements for ANSI A117.1 and ADAAG 2010
- This automatic door bottom is supplied with a EPDM Sponge ("R") insert - item number E4303BL (black color, only)
434ARL: A - Mill Finish Aluminum Aluminum with Black Sponge EPDM insert
Ratings
- Air Infiltration Tested
- Sound Tested - ASTM E90
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand |
Pemko |
|---|---|
| Finish |
Aluminum |
| Finishes |
A - Mill Finish Aluminum |
| Fire Rating |
Fire Rated - UL10C - Positive Pressure |
| Insert/Seal Type |
Neoprene or EPDM |
| Length |
48"36" |
Pemko 434ARL Full Mortise Automatic Door Bottom with Sponge Neoprene Insert
