Product Overview

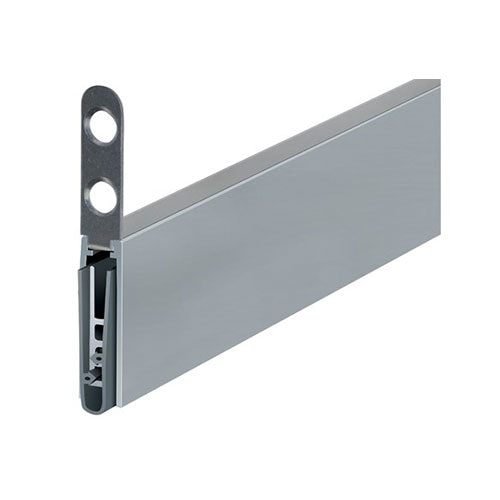

Pemko US-FHRD Narrow Case Automatic Door Bottom, Mill Aluminum with Gray Silicone insert
The versatile solution in a small package
The Planet GDZ's US automatic door bottom features a narrow case which enables installation with face- or edge-mounted flush bolts. Since it requires minimal space within the door’s thickness and does not intrude on the bottom rail, both the drop seal and the flush bolts can be used on the same door.
- Small profile with many uses
- For use with wood doors
- For use with narrow doors
- Can be used on doors in conjunction with flush bolts
- Mortised application
- Edge mounted end plates leaves bottom rail unobstructed
- Use two lengths on same door for added sound and energy protection
- Gasket is self-extinguishing silicone material

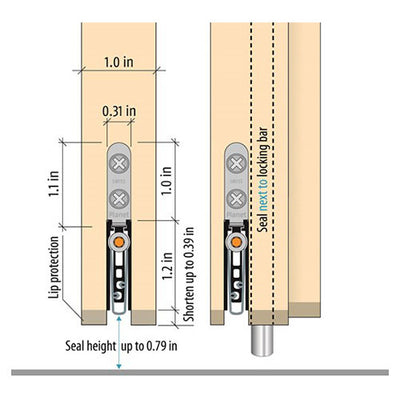

- Recommended gap is 3/8" to 11/16"; maximum gap is 3/4"
- Automatic compensation for uneven gaps (linear)
- 36" Length
- Can be trimmed up to 4-1/2" in the field
- Fire Rated: Meets UL10c as a Category J gasket
US-FHRD-A: A – Mill Finish Aluminum with Gray Silicone insert
| Brand |
Pemko |
|---|---|
| Finish |
Aluminum |
| Finishes |
A - Mill Finish Aluminum |
| Fire Rating |
Meets UL10c |
| Insert/Seal Type |
Silicone |
| Length |
36" |
Pemko Planet US-FHRD Narrow Case Automatic Door Bottom for Wood Doors, 36" Length
