Product Overview
Best Precision 2103-1703A Grade 1 Rim Exit Device, Wide Stile Pushpad, Hex Key Dogging, Field Reversible
The Precision 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Precision for it’s aesthetic design and efficient engineering. All Precision 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
- Deadlocking Latchbolt Standard

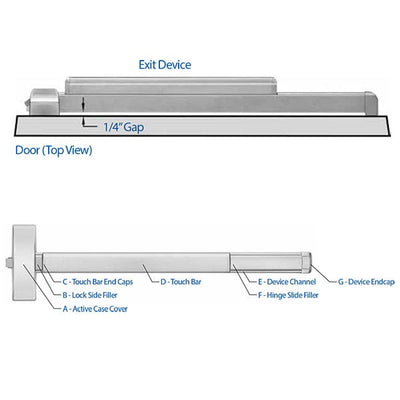

- Touchbar Clearance - Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
- Quiet Operation - Sound dampeners reduce the noise associated with exit device operation on the depression and return stroke of the touchpad
- Stock Sizes: 3′ (2'7" to 3'0" Doors)
- ANSI Function: 03 - (Entrance by lever when latchbolt is retracted by key – Key is removable only when it’s locked)

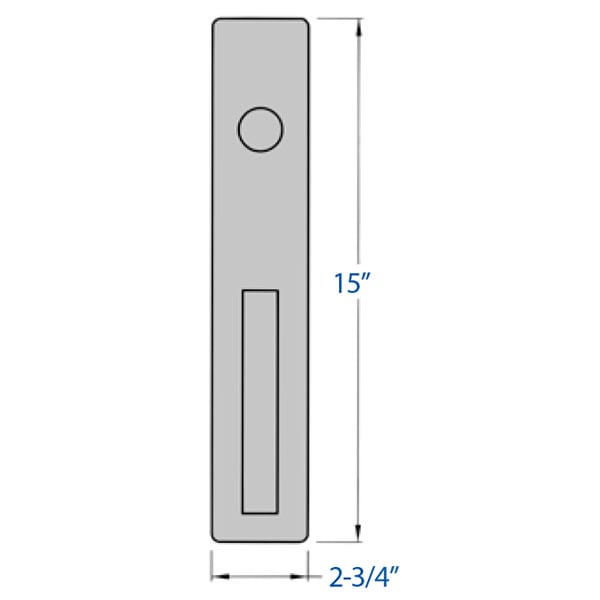

- Escutcheon plate size: 15" x 2-3/4"
- Projection: 2-1/8″
- Pull center to center: 6″
- Rim cylinder must be ordered separately
| Brand |
Best Precision |
|---|---|
| Finishes |
628 Anodized Aluminum, 630 Satin Stainless Steel |
| Length |
3'0" (2'7" to 3'0" Doors) |
| ANSI Grade |
ANSI Grade 1 |
| Usage |
Heavy Duty |
| Fire Rating |
Non-Fire-Rated |
| Trim |
1703A Night Latch Pull |
| Cylinder |
1-1/8" Rim Cylinder (Sold Separately) |
| Stile Type |
Wide (Standard) |
| Handing |
Non Handed – Completely Reversible |
| Dogging Feature |
Half turn hex dogging standard |
| Latchbolt |
Stainless steel, 3/4" throw - Deadlocking |
| Strike |
S300, stainless steel, black powder coated |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |

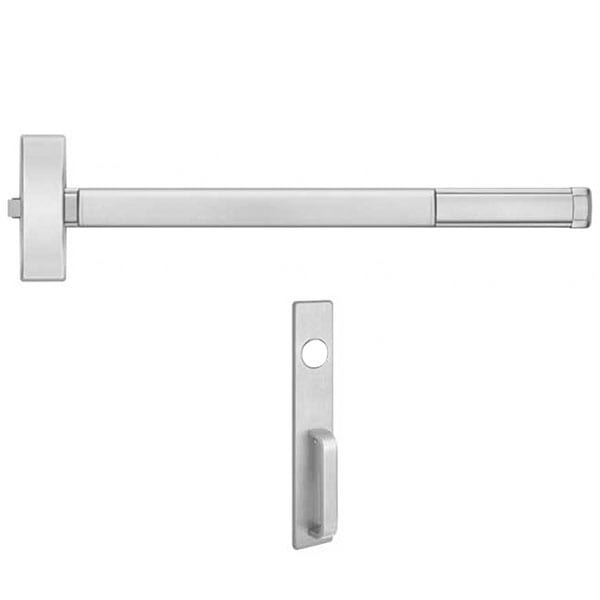

Best Precision 2103-1703A Rim Exit Device with Nightlatch Pull
