Rixson

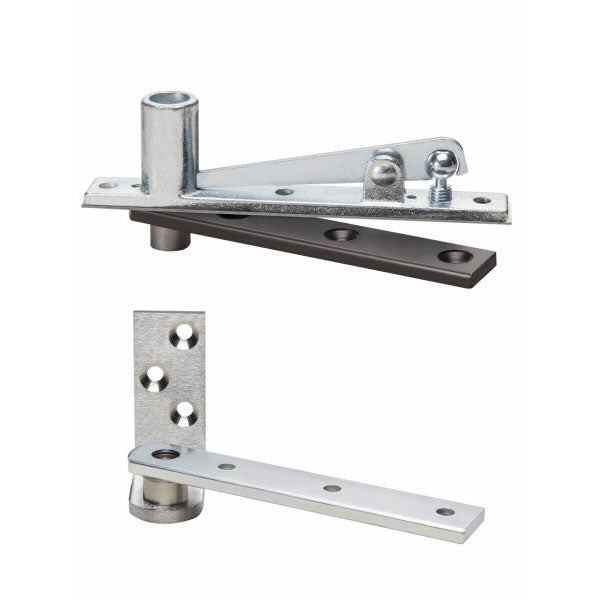

Rixson 127-3/4 Center Hung Side Jamb Attached Pivot Set

$287.83
Usually Ships:  1-2 Business Days
  • For doors up to 200 lbs.
  • Door width up to 3'6"
  • Light duty pivot set

Available Options:

Clear
Added to Cart

Product Overview

The 127-3/4 is a center-hung, light-duty, jamb-mounted pivot set designed for interior doors weighing up to 200lbs.

  • Interior doors
  • Weight to 200 lbs.
  • Door sizes up to 3'6"x 8'6" (1067 x 2591mm)
  • Non-handed
  • 320 top pivot included
  • Bottom pivot mortised into side jamb
  • Weight of door borne by floor
  • Pivot point centered in thickness of door
  • Door must have radius on pivot edge
  • Not allowed for use on labeled doors and frames
  • Pivot point remains constant at 1-1/4" (32mm) from the edge of the door
  • Furnished with wood and machine screws
Brand

Rixson
Door Weight

up to 200 lbs.
Finish

Satin ChromeOil Rubbed Bronze
Finishes

613 Oil Rubbed Bronze626 Satin Chrome
Handing

Non Handed – Completely Reversible
Pivot Type

Center Hung Pivots
Usage

Light Duty
