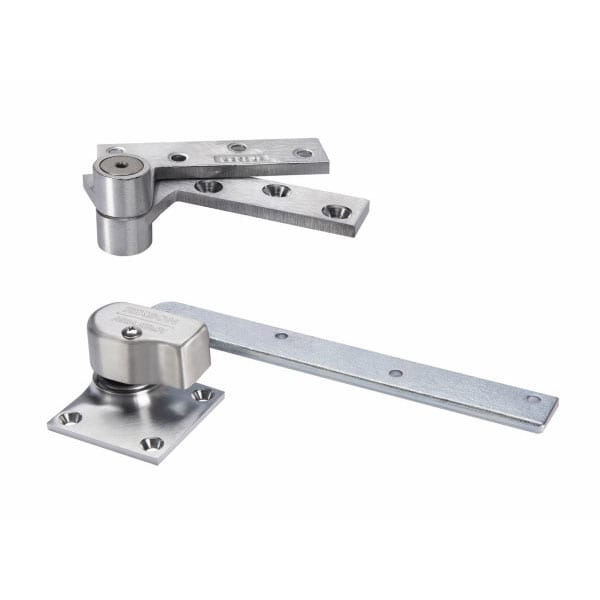

Rixson 147 Offset Pivot Set

$619.12
This item ships FREE! Usually Ships:  1-2 Business Days
  • For Doors up to 600 lbs.
  • Door Width up to 4'0"
  • Standard-Duty Pivot Set

Available Options:

Clear
Added to Cart

Product Overview

3/4" Offset Pivot Set - for Interior or Exterior Doors up to 600 lbs.

  • 626 Satin Chrome Finish
  • Standard top pivot L180 included
  • M19 Intermediate Pivot(s) sold separately
  • Bottom pivot mounts directly to floor
  • Uses same arm and cap as 27 floor closer
  • Non-ferrous base metal
  • 3/4" offset (measured from center-line of pivot to face of door)
  • Door edges must be beveled 1/8" in 2"
  • Doors will swing 180 degrees, trim permitting
  • Furnished with wood and machine screws
  • Doors up to 90" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
Brand

Rixson
Door Weight

up to 600 lbs.
Finish

Oil Rubbed BronzeSatin Chrome
Finishes

626 Satin Chrome613 Oil Rubbed Bronze
Hand

LH (Left Hand)RH (Right Hand)
Pivot Type

Offset Pivots
Usage

Standard Duty
