Rockwood

Rockwood 2949 Self Latching Flush Bolt with Bottom Fire Bolt for Wood Doors

$154.84
Usually Ships:  3-5 Business Days
  • For use with wood doors
  • Self latching top bolt
  • UL Listed up to 20 Minutes (fire-rated)

Available Options:

Clear

Product Overview

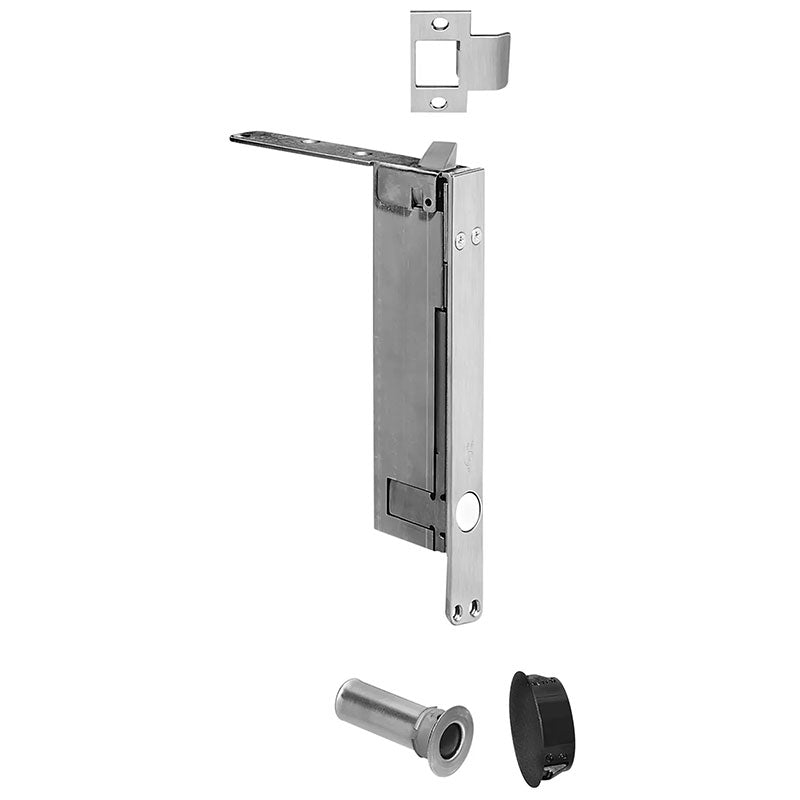

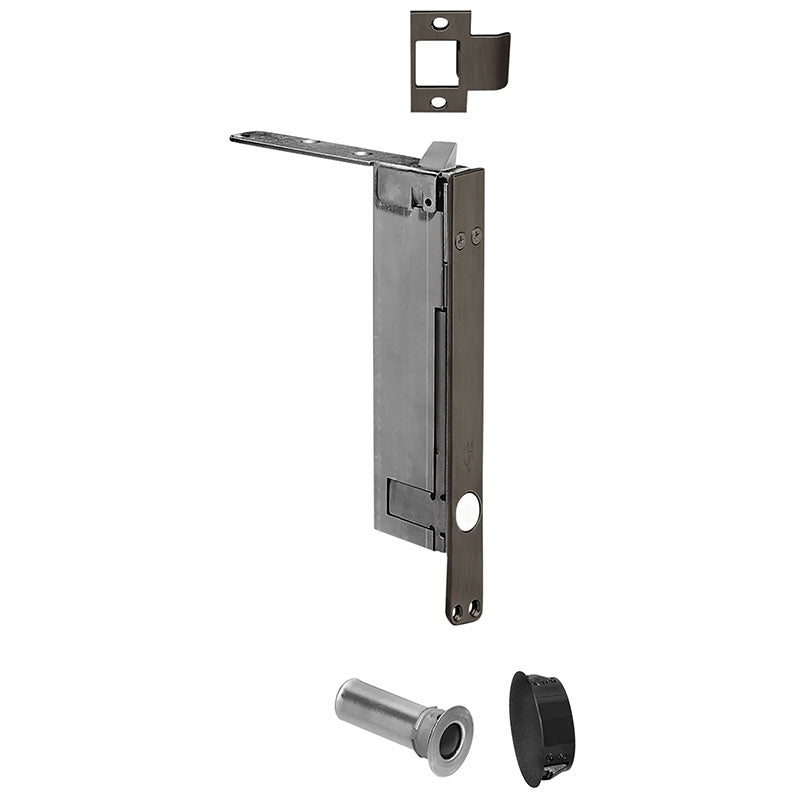

Rockwood 2949 Self Latching Flush Bolt with Bottom Fire Bolt for Wood Doors


The non-handed 2949 Self Latching Flush Bolt with Bottom Fire Bolt is for use on fire rated wood doors. This product features low (5 lbs. maximum) closing force, an override feature that prevents damage to doors or bolt if bolt head is blocked from entering strike, and a thermal lock that automatically locks the inactive door under high heat conditions due to fire. Its bottom fire bolt eliminates the need for floor prep and oversized fire bolt strike hole allows for slight door misalignment.
Features
  • Low (5 lbs. maximum) closing force
  • Self latching top bolt
  • Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike
  • Bolt head rod is adjustable up to 1/2"
  • Thermal lock automatically locks the inactive door under high heat conditions due to fire
  • Wood door flush bolts can not be extended in size. Extension rods are not available.
  • Non-handed
Benefits
  • For fire rated UL listed 20-minute wood core and composite doors up to 4'w x 9'h
  • Bottom fire bolt eliminates need for floor prep
  • Oversize fire bolt strike hole allows for slight door misalignment
  • Can be used on doors that swing in either direction
  • Adjustable bolt head rod provides precise fit during installation
  • Thermal lock provides enhanced fire safety
Brand

Rockwood
Finishes

BSP Black Suede Powder Coat, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US3 (605) Bright Brass, US32 (629) Bright Stainless Steel, US32D (630) Satin Stainless Steel, US4 (606) Satin Brass
Fire Rating

UL Listed 90 Min fire doors 8’0" X 8’0"
Fasteners

6 ea. #8 x 3/4" FH combo screws, 2 ea. plastic anchors, 3 ea. #10 x 1" FH WS
