Product Overview
Available while supplies last (No returns allowed)

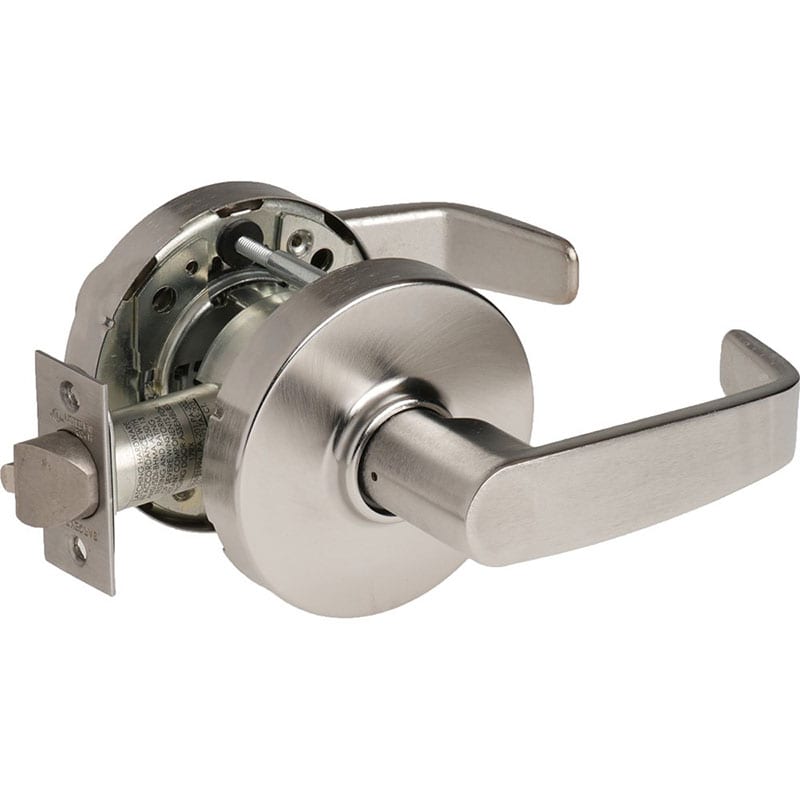

Sargent 28-10U15-LL Grade-1 Cylindrical Lock, Passage Function, L Lever, L Rose, ASA Strike
The 10 Line lock is a heavy-duty handle lockset that exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles.
- Installs in one minute or less
- Adapts to fit multiple thru-bolt positions
- Efficient Installation: Pre-assembled components make installation quick and easy
- Flexible: accommodates retrofit applications and a variety of door preparations

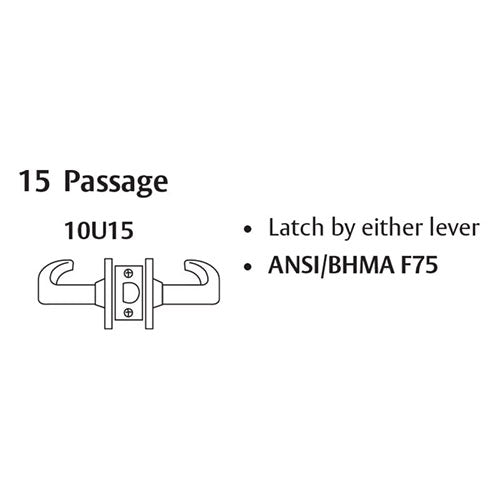

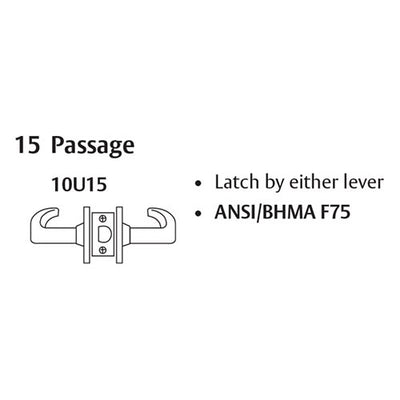

ANSI F75 Passage
- Latch by either lever
Applications
- Heavy-duty commercial and institutional interior and exterior doors
- Offices
- Schools/Universities
- Hospitals
- Manufacturing facilities
| ANSI/BHMA Standard |
Certified ANSI A156.2 Series 4000 — Grade 1 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Sargent |
| Door Thickness |
1-3/4" to 2" |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
Fire Rated - UL10C - Positive Pressure |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |

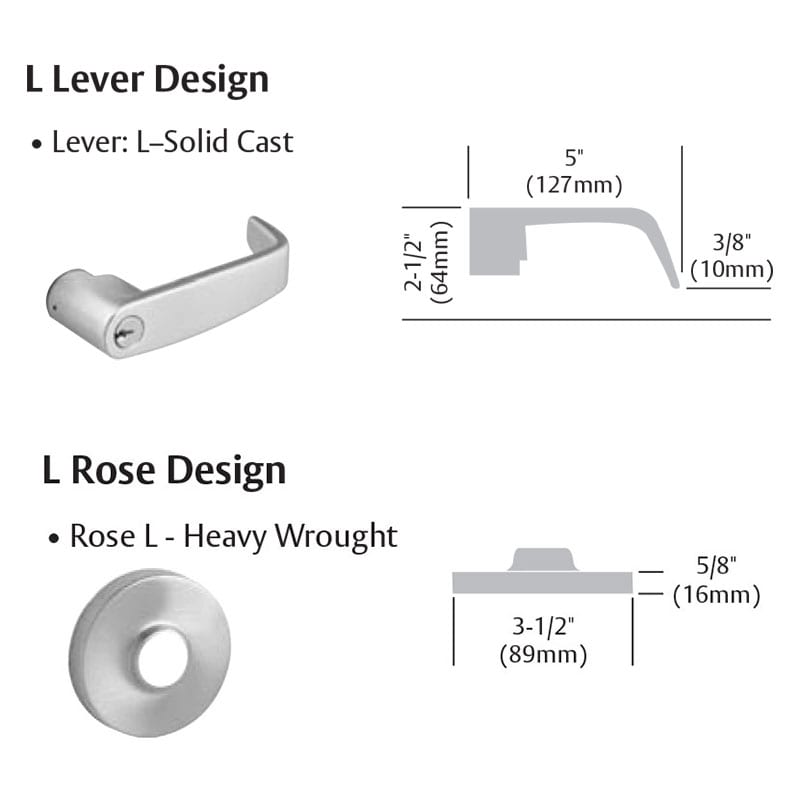

| Lever Design |
L |
| Lock Function |
Passage |
| Rose Design |
L |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
Sargent 28-10U15-LL Heavy Duty Passage Latch Lever Set, L Lever, L Rose
