Product Overview

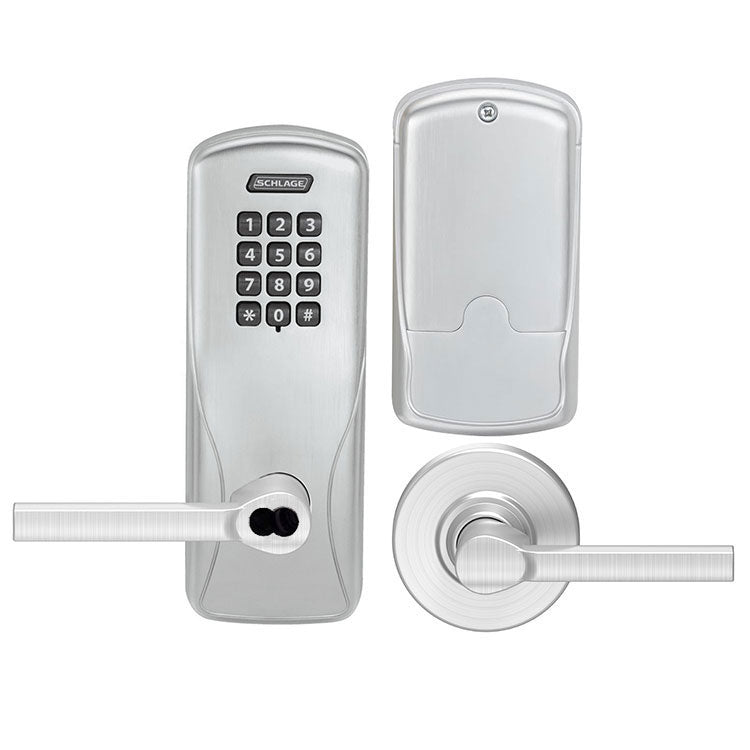

Schlage CO-100-CY-70-KP-LAT_B Grade 1 Standalone Electronic Cylindrical Lock, Storeroom Function, Keypad Reader, Latitude Lever, Prepped for (FSIC) Full Size Interchangeable Core
This simple, standalone keypad-entry lock is designed for up to 500 unique users using PIN codes only. The CO-100 is an economic alternative when trying to minimize key distribution. User rights are stored on the lock with unique PINs assigned to each user. This minimizes the number of mechanical keys issued, protecting the integrity of a facility’s key system. Administrator level users program the CO-100 using its keypad at the door to add or delete user PINs or change preferences or functions at any time.

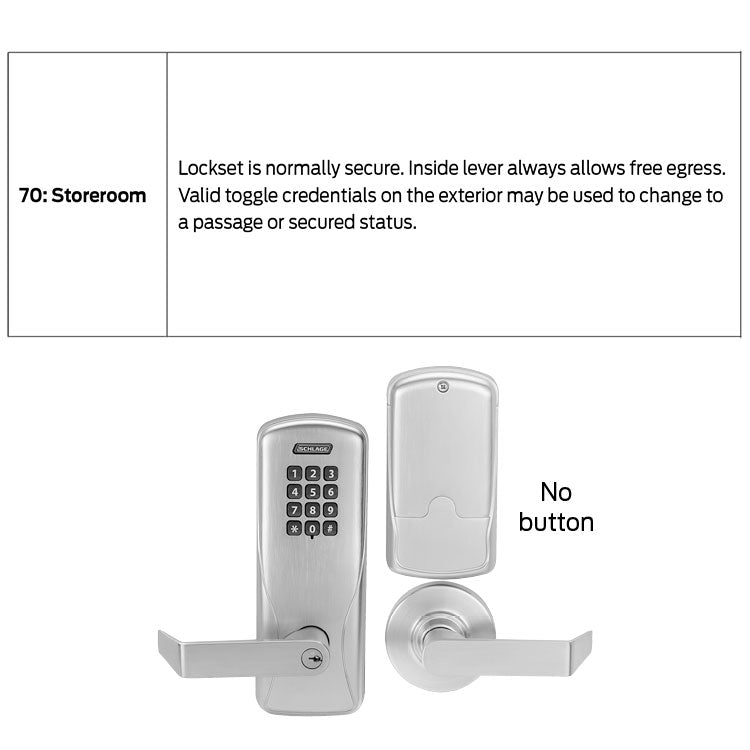

Storeroom Function (70): Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status.
- 4 AA batteries included – up to 2-year battery life
- Helps to minimize key distribution to ensure the integrity of the key system over time
- Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
- ANSI/BHMA Grade 1 certified and UL 294 Listed
- Interior or Exterior Use - ANSI/BHMA A156.25 full outdoor (70 function)
- 23-030 Full Size Interchangeable Core Sold Separately
| Brand |
Schlage |
|---|---|
| Finishes |
605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze |
| Usage |
Heavy Duty |
| Lock Function |
Storeroom |

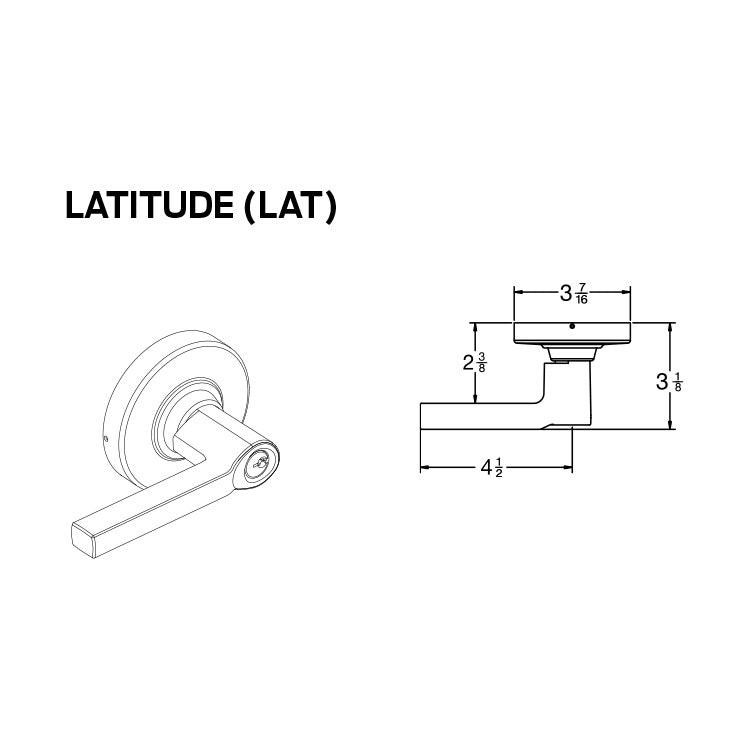

| Lever Design |
LAT (Latitude) |
| Cylinder |
Prepped for (FSIC) Full Size Interchangeable Core (less core) |
| Latch |
1/2” throw, deadlocking - 1-1/8" x 2-1/4" face |
| Backset |
2-3/4" |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Certifications |
ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294 |
| Handing |
Non-Handed |
| Door Thickness |
1-3/4" |
| Users |
Up to 500 |
| Power |
4 AA batteries |
| Battery Life |
Up to 2 yrs with 4 AA batteries |
| Door Applications |
Interior or Exterior Doors - ANSI/BHMA A156.25 full outdoor |
| Cylinder Format |
Full Size Interchangeable Core (FSIC) |
| Warranty |
1 Year |
Schlage CO-100-CY-70-KP-LAT_-J Electronic Keypad Lock, Storeroom Function, Latitude Lever, Prepped for FSIC
