Product Overview

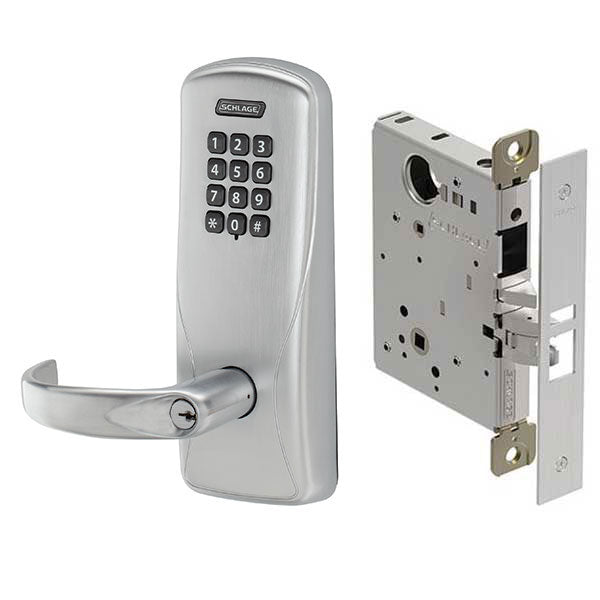

Schlage CO-100-MS-50-KP-SPA Grade 1 Standalone Electronic Mortise Lock, Office/Classroom Function, Keypad Reader, Sparta Lever, With Schlage Standard Cylinder
This simple, standalone keypad-entry lock is designed for up to 500 unique users using PIN codes only. The CO-100 is an economic alternative when trying to minimize key distribution. User rights are stored on the lock with unique PINs assigned to each user. This minimizes the number of mechanical keys issued, protecting the integrity of a facility’s key system. Administrator level users program the CO-100 using its keypad at the door to add or delete user PINs or change preferences or functions at any time.

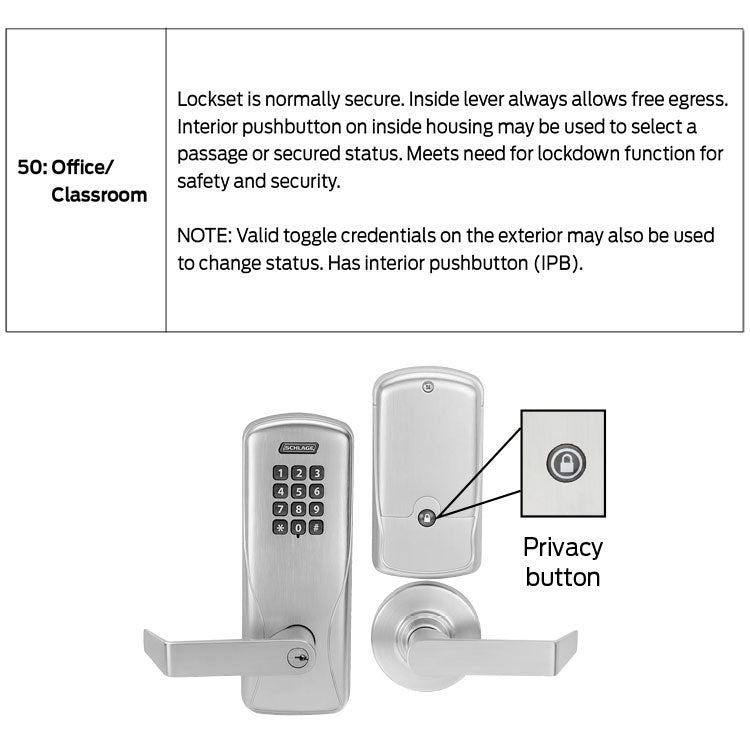

Office/Classroom Function (50): Lockset is normally secure. Inside lever always allows free egress. Interior pushbutton on inside housing may be used to select a passage or secured status. Meets need for lockdown function for safety and security. NOTE: Valid toggle credentials on the exterior may also be used to change status. Has interior pushbutton (IPB).
- 4 AA batteries included – up to 2-year battery life
- Helps to minimize key distribution to ensure the integrity of the key system over time
- Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
- ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed
The CO-100 is ideal for:
- Visitor pass through/common areas
- Vestibules or reception area doors controlled by remote release
- Maintenance areas
- Supply/equipment rooms
- Workout/exclusive use spaces
- Private spaces such as restrooms, nursing, or fitting rooms – anywhere visual occupancy indication is desired
| Armored Front |
1-1/4" x 5 19/32" x 7/32" |
|---|---|
| Backset |
2-3/4" |
| Battery Life |
Up to 2 yrs with 4 AA batteries |
| Brand |
Schlage |
| Case Size |
4-7⁄16" x 6-1⁄16" x 1" |
| Certifications |
ANSI/BHMA A156.25 ANSI/BHMA Grade 1 UL 294 |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Applications |
Interior or Exterior Doors - ANSI/BHMA A156.25 full outdoor |
| Door Thickness |
1-3/4" |
| Finish |
Satin BrassAged BronzeBright BrassSatin BronzeBright ChromeSatin ChromeSatin Nickel |
| Finishes |
619 Satin Nickel625 Bright Chrome605 Bright Brass612 Satin Bronze626 Satin Chrome643e Aged Bronze606 Satin Brass |
| Handing |
Handed - Field Reversible |
| Keyway |
Schlage S123 KeywaySchlage C Keyway |
| Latchbolt |
3⁄4" throw stainless steel latch with anti-friction tongue |
| Lever Design |
SPA (Sparta) |
| Lock Function |
ClassroomOffice |
| Lock Type |
Mortise Lock |
| Power |
4 AA batteries |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Users |
Up to 500 |
| Warranty |
1 Year |
