Product Overview

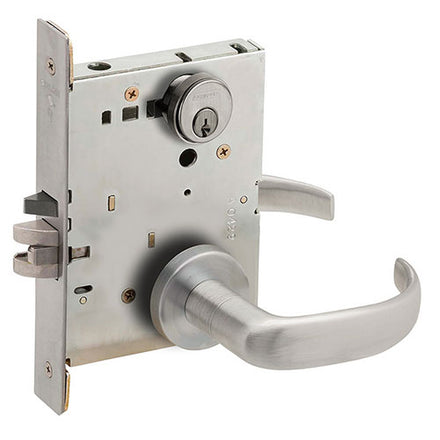

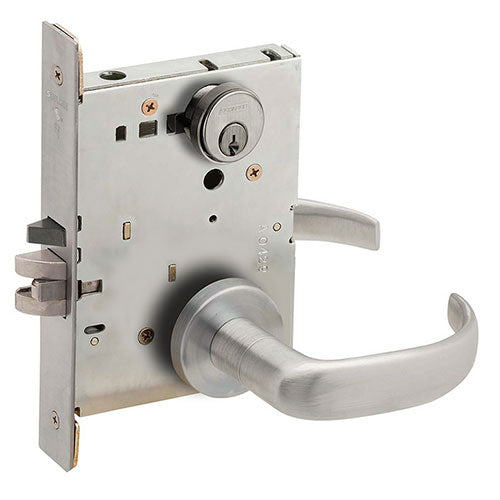

Schlage L9080P Storeroom Mortise Lock, 17 Lever, A Rose, Conventional Cylinder
Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

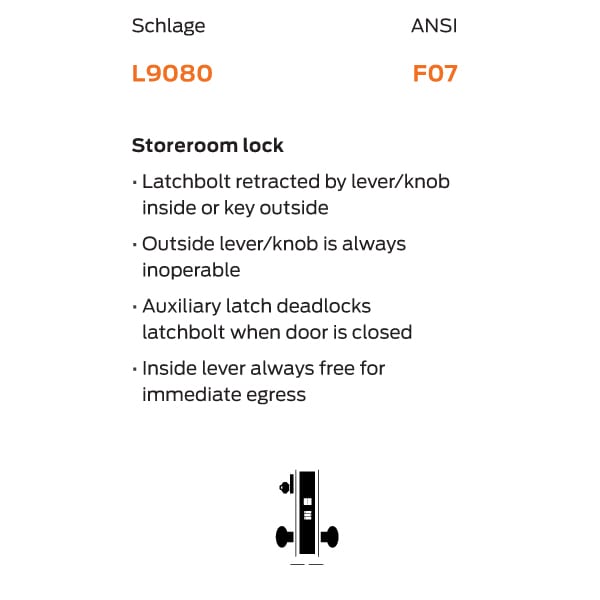

ANSI F07 – Storeroom – Latchbolt retracted by key outside or by lever inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
| ANSI Function |
F07 |
|---|---|
| ANSI Grade |
ANSI A156.13 Series 1000 Operational Grade 1 and Security Grade 1 |
| Armored Front |
1-1/4" x 8" x 7/32" standard |
| Backset |
2-3/4" |
| Brand |
Schlage |
| Case |
Steel case and parts are corrosion resistant |
| Case Size |
4-7⁄16" x 6-1⁄16" x 1" |
| Cylinder & Keys |
30-001 cylinder keyed different with 2 keys |
| Door Thickness |
1-3/4" |
| Finish |
Satin ChromeOil Rubbed BronzeSatin NickelBlackStainless SteelBright ChromeBright BrassSatin BronzeSatin Brass |
| Finishes |
630 Satin Stainless Steel612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass |
| Fire Rating |
“A” Label 3 Hour Fire Doors UL10C Positive Pressure Rated |
| Handing |
Field-reversible handing without opening lock case |
| Keyway |
Schlage C KeywaySchlage S123 Keyway |
| Latchbolt |
3⁄4" throw stainless steel latch with anti-friction tongue |

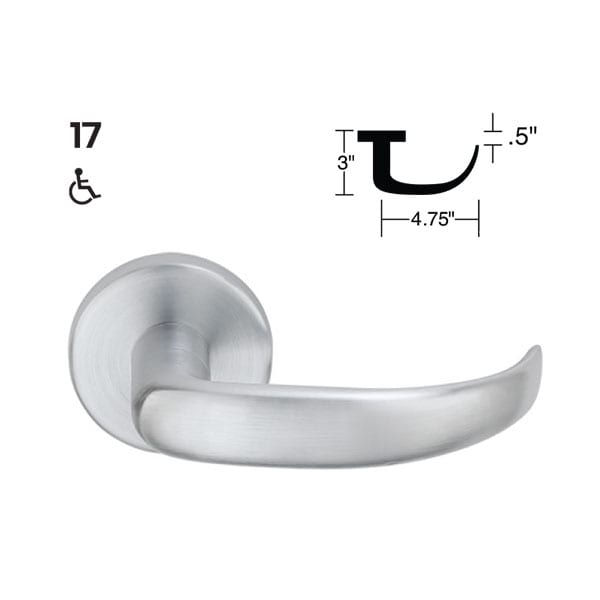

| Lever Design |
17 |
| Lock Function |
Storeroom |
| Rose Design |
A Rose |
| Strike |
ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Usage |
Heavy Duty |
