AUTOS2 Low Energy Surface Mounted Automatic Door Operator, Pull Side Mount

$2,193.08
This item ships FREE! Usually Ships:  2-3 Business Days
  • Track Arm - PULL Side mount
  • Built-in 1 amp+ power supply
  • Heavy-duty for high-traffic use

Available Options:

Clear

Product Overview

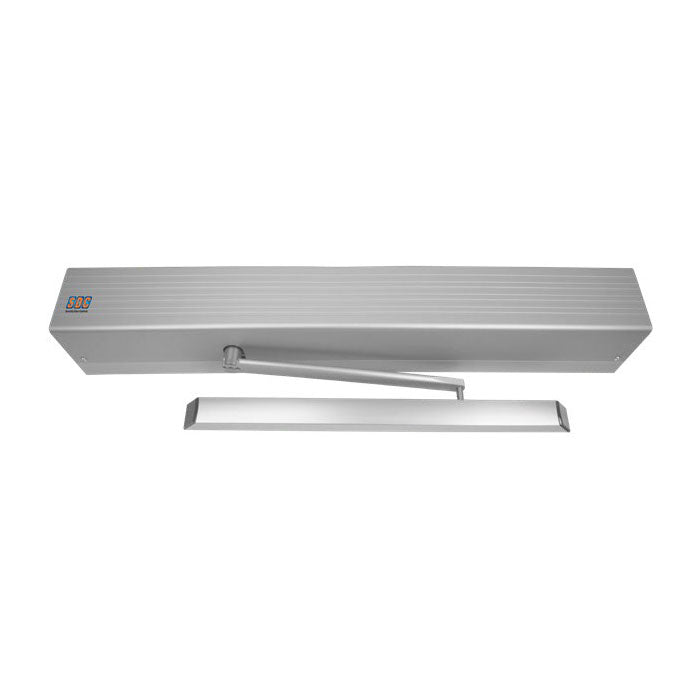

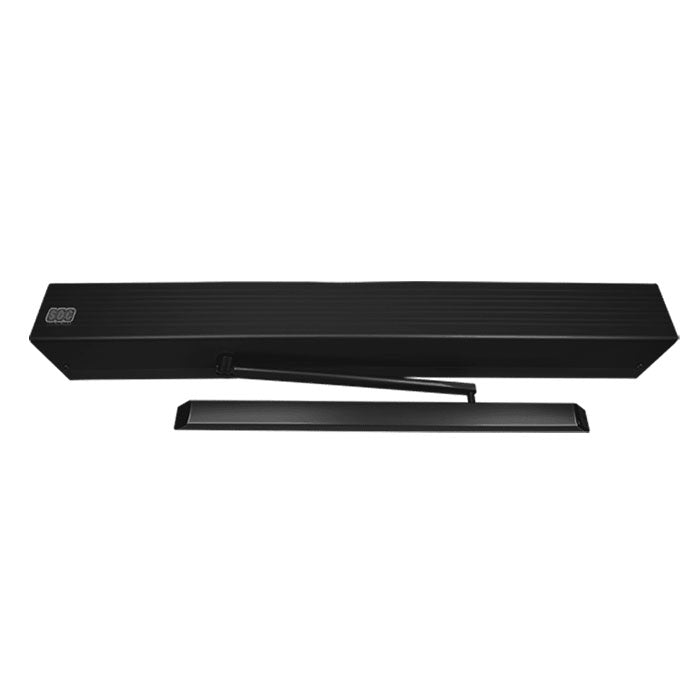

SDC AUTOS2 Low Energy Surface Mounted Automatic Door Operator, Pull Side Mount


SDC's Auto Entry-Control low-energy swing door operators are designed for applications requiring ADA compliance or user convenience.
SDC’s operator is built with a state-of-the-art microprocessor-based unit that is self-tuning and self-learning while offering nonhanded operation, full-mechanical stops, and a variety of interface options for sensors, push-plates, fire alarms and electrified locks.
SDC’s operator is belt driven with a combination of gears and pulleys which requires less torque, less power, absorbs more abuse, and is quieter than other automatic door openers while complying with all US and Canadian ADA requirements. Onboard diagnostics simplifies troubleshooting for ease of installation and all SDC operators can be easily configured for surface mounted push/pull applications. ANSI certified not required for initial installation.
  • Single button, self-tuning setup
  • Extremely quiet operation
  • Momentary back pressure relief
  • Obstruction detection
  • Power close option
  • Hold-open timer
  • External function switches
  • Built-in 1 amp+ power supply
  • Onboard lock sequencing
  • Preset dip switches for alternative functions
  • Customizable programming for system design
  • USB port to easily upload customized programming
  • Non-handed
  • 20mm spindles included
  • High traffic use
Brand

SDC
Finishes

355 Black, 628 Anodized Aluminum
Length

36" (for single door)
Usage

Heavy Duty
Mounting

Surface Mount - Pull Side
Handing

Non-Handed
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
