Product Overview

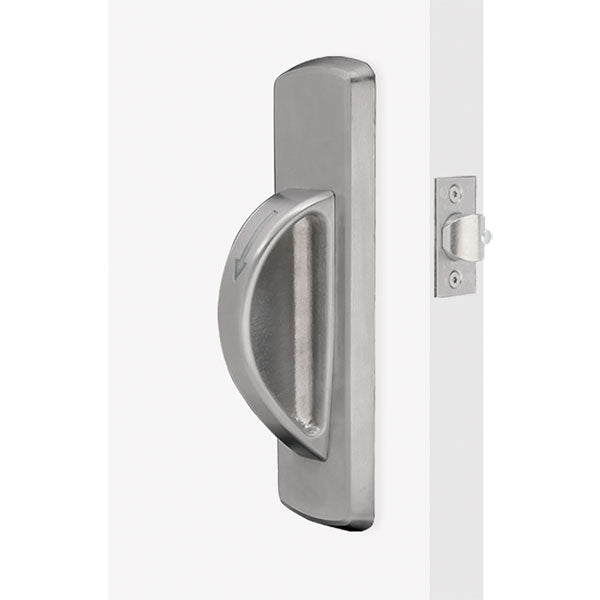

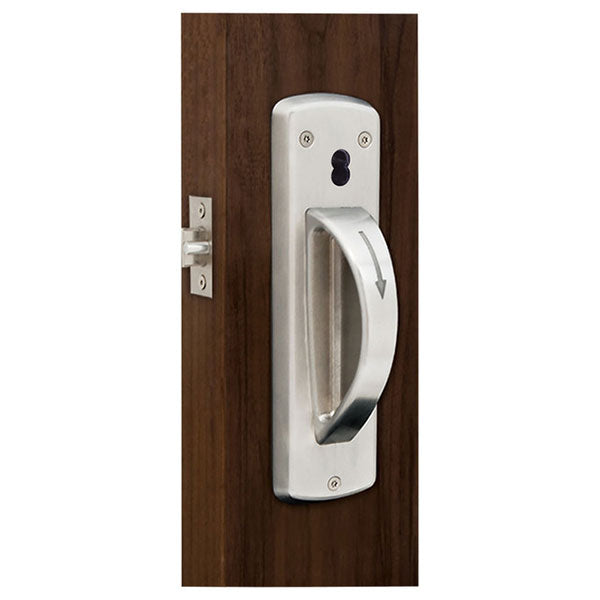

Townsteel CRX-A-86-630-IC Storeroom Lock, Grade-1 Heavy Duty 5-Point Ligature Resistant Arch Trim, Prepped for (SFIC) Small Format Interchangeable Core, Less Core, US32D/630 Satin Stainless Steel Finish
ANSI Grade 1 Cylindrical Lock with Ligature Resistant Trim-Arch. CRX-A is recommended for high-risk areas in facilities housing patients at risk. This product is equipped with a 5-point ligature-resistant stainless steel arch lever and tamper-resistant mounting screws. The CRX-A can be mounted on both a wood and metal door.
Features:
- Equipped with a 5 point ligature resistant arch lever
- Meets all ligature resistant requirements
- Various cylinder and keying options
- Through-bolt mounting with tamper-resistant screws
Code Compliance:
- ANSI/BHMA A156.2‐2011 Grade 1 certified
- UL 10C Listed 3‐Hour Fire Rating
- Meets guidelines of The Americans with Disabilities Act
- Meets requirements of The Buy American Act
- OMH of New York State Approved
| ANSI/BHMA Standard |
Grade 1 Listed Certified ANSI/BHMA |
|---|---|
| Backset |
5"2-3/4" |
| Brand |
TownSteel |
| Cylinder |
Prepped for (SFIC) Small Format Interchangeable Core (less core) |
| Cylinder Format |
Small Format Interchangeable Core (SFIC) |
| Door Thickness |
1-3/4" |
| Finish |
Stainless Steel |
| Finishes |
US32D (630) Satin Stainless Steel |
| Fire Rating |
UL Listed up to 3 Hours |
| Hand |
RH (Right Hand)LHR (Left Hand Reverse)LH (Left Hand)RHR (Right Hand Reverse) |
| Handing |
Handed |
| Latchbolt |
1/2" throw stainless steel |
| Lock Function |
Storeroom |
| Strike |
4-7/8" ASA Strike |
| Usage |
Heavy Duty |
