005 Light Commercial Electric Strike

$56.77
Usually Ships:  1-2 Business Days
  • For use with cylindrical locks with up to a 5/8" throw
  • Fail secure standard (unlocks with power)
  • For use with wood jambs and iron gates

Available Options:

Clear
Added to Cart

Product Overview

Trine 005/005C Electric Strike, Fail Secure, 3-1/2" x 1-3/8" Faceplate


For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.
  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part Locking Mechanism
  • Non-Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure Standard (Unlocks with Power)

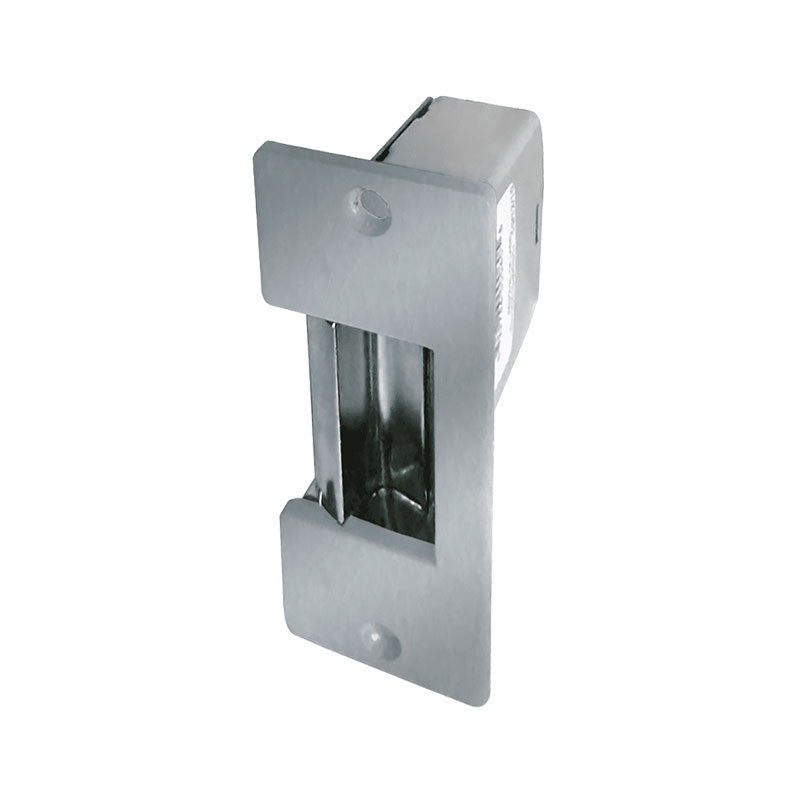

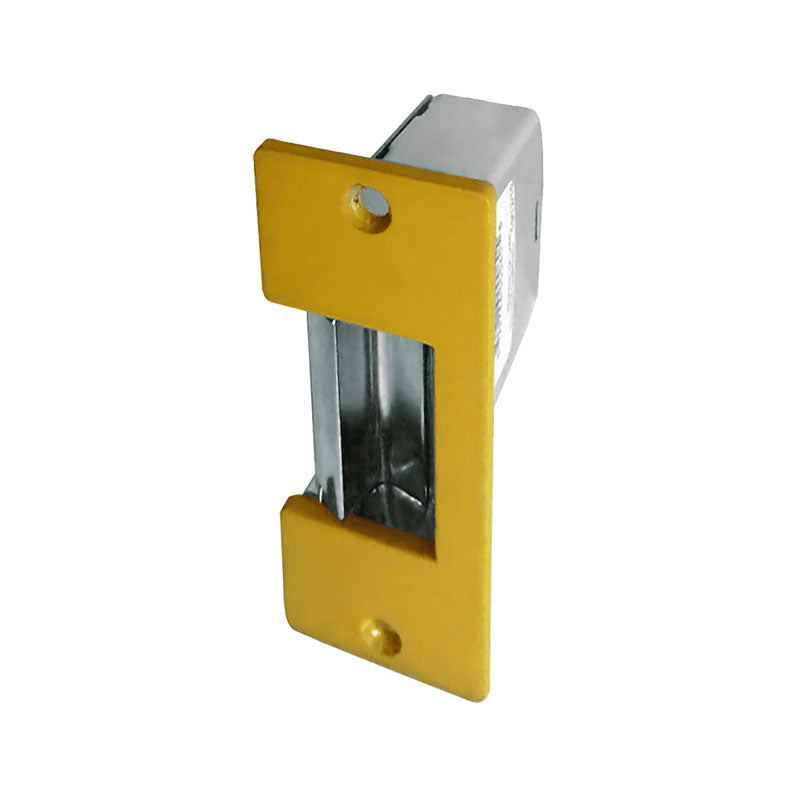

  • Available Finishes: 005 (Brass Powder Coated) -- 005C (Satin Chrome or - BHMA652)
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
Models: 005-8-16VAC, 005-24AC, 005-24DC, 005C-8-16VAC, 005C-12DCm 005C-24AC, 005C-24DC
made-in-usa
Brand

Trine
Finishes

Brass Powder Coated, US26D Satin Chrome
Usage

Light Duty
Lock Type Compatibility

Cylindrical Lock
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
