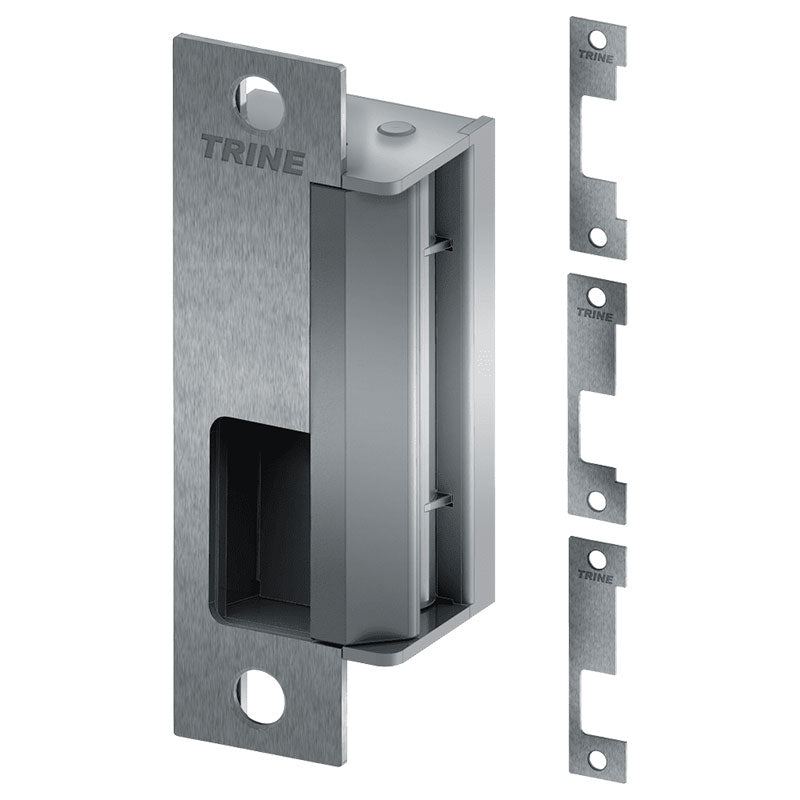

4100 Electric Strike For Cylindrical and Mortise Locks

$377.37
This item ships FREE! Usually Ships:  1-2 Business Days
  • For use with cylindrical and mortise locks without a deadbolt
  • Fail-Secure, 12-24VAC/DC
  • Includes the 4 most used faceplates

Available Options:

Clear

Product Overview

Trine 4100 Electric Strike For Cylindrical and Mortise Locks, Fail Secure, Fire-Rated, (4) 4-7/8" x 1-1/4" Faceplates for Cylindrical and Mortise Locks


THE ONE BOX SOLUTION FOR CYLINDRICAL & MORTISE LOCKSETS
Includes the 4 most used faceplates to make specifying and installing easy
Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.

  • Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force
  • Four popular faceplates included -- including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
  • 1-3/8” Shallow backset -- the 4100 low profile electric strike can be used in 2” fire rated frames with 1/2” sheetrock ingress
  • Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
  • The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712/732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.
  • Why cut for a deadbolt 100% of the time when they are only used 5% of the time.
  • Patented # US20110241361
  • Cutout Specification A115.1 (with Slight Jamb Modification)

Electric Strike Standards:



  • Class A, 3 Hour fire rated single door / frame configuration
  • WH recognized for UL10C, Fire Tests of Door Assemblies
  • UBC 7-2, Uniform building Code
  • CAN4 S104, Standard Method for Fire Tests of Door Assemblies
  • NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
  • NOTE: WH fire listing is void when using fail safe action.
  • UL LISTED - 1034 Burglary Resistant
  • UL294 (6th Edition) listed
  • ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
made-in-usa
Brand

Trine
Finishes

BLK Black Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US32D (630) Satin Stainless Steel
Usage

Heavy Duty
ANSI Grade

ANSI Grade 1
Fire Rating

Class A, 3 Hour Single door / frame configuration - UL10C, Fire Tests of Door Assemblies
Voltage

12-24VAC/DC
Lock Type Compatibility

Cylindrical Lock, Mortise Lock
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
