Product Overview

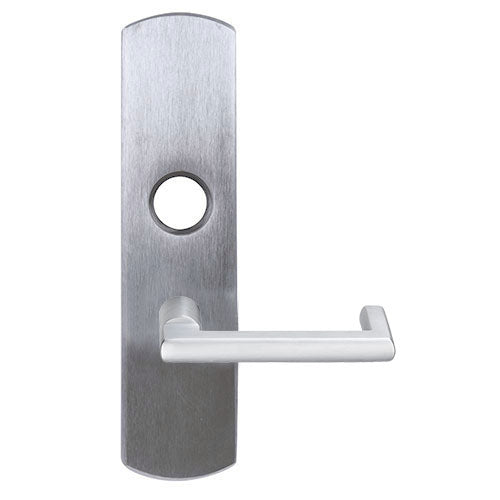

Von Duprin 996L Lever Trim, Classroom Function, Rim/Vertical Rod Devices, LON (Longitude) Lever Style
The 996L Breakaway trim has become the standard lever trim offering on the 98L/99L Series devices. The Breakaway design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly repairs from becoming necessary.
- ANSI Function: 08
- Escutcheon plate size: 2-3/4" x 10-3/4" x 27/32"
- LAT lever style
- Cylinder must be ordered separately - Requires 1-1/8" Rim Cylinder
| ANSI Grade |
ANSI Grade 1 |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Cylinder |
1-1/8" Rim Cylinder (Sold Separately) |
| Finish |
Bright ChromeBright BrassSatin BrassSatin ChromeSatin BronzeBlackDark Bronze |
| Finishes |
SPBLK (693) BlackUS3 (605) Bright BrassUS26D (626) Satin ChromeUS4 (606) Satin BrassUS26 (625) Bright ChromeUS10 (612) Satin BronzeSP313 (695) Dark Bronze |
| Function |
Entry / Classroom |
| Hand |
Field reversible-shipped RHR |
| Lever Design |
LON (Longitude) |
| Usage |
Heavy Duty |
Von Duprin 996L-R/V-LON (Longitude) Breakaway Lever Trim for 98/99 Series Exit Device
