Accentra (Formerly Yale)

Accentra (Formerly Yale) 1800F Fire-Rated Rim Exit Device

$273.02
Usually Ships:  1-2 Business Days
  • Medium Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 01, Exit Only (trim sold separately)
  • UL Listed Fire Exit Hardware, 3 Hour Rated

Available Options:

Clear

Product Overview

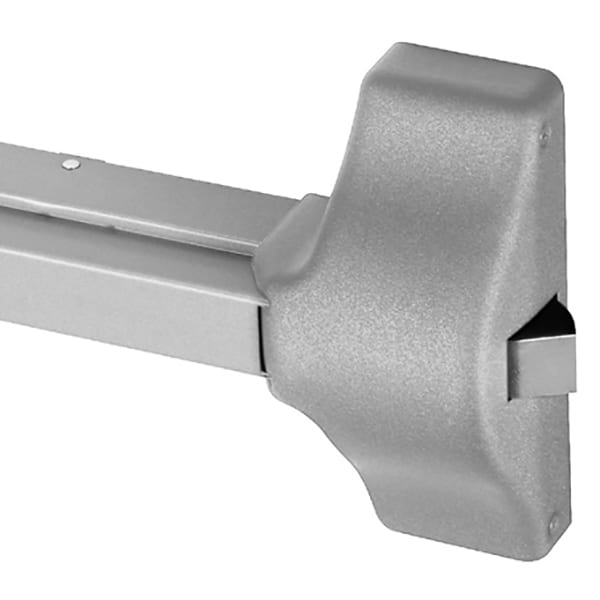

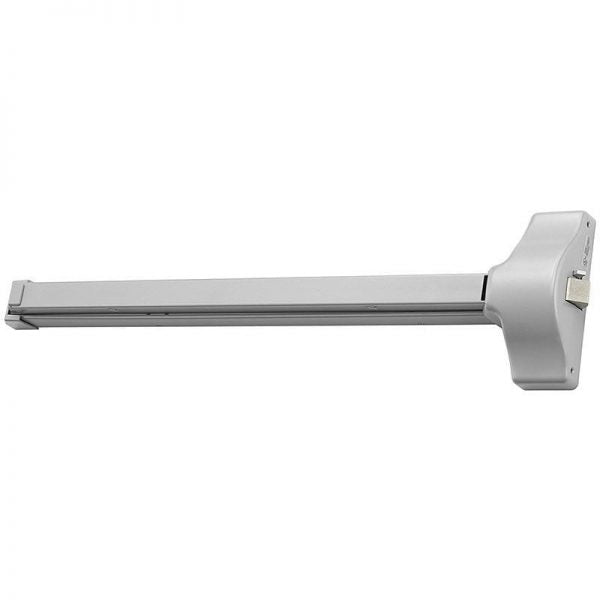

Accentra (formerly Yale) 1800F Flatbar Rim Exit Device, Fire-Rated, Exit Only

Accentra 1800 series exit devices are the ideal choice for economy commercial applications where consistent quality, ease of use, and installation are required. The 1800 devices are certified ANSI/BHMAA156.3, Grade-1, and their performance, construction, and versatility make them perfect for a variety of facilities. Ideal for back of the house where function and code compliance are the requirement at an economical price.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • UL/cUL Listed: GXHX/GXHX7 – Fire exit hardware (F) (4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)
  • Designed for wide stile doors
  • Non-handed for easy installation
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Dogging Feature

None
Door Applications

1-3/4" Metal wood or composite doors
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

AluminumDark BronzeBlack
Finishes

695 Dark Bronze693 Black689 Aluminum
Fire Rating

UL/cUL listed up to 3 Hours
Handing

Non Handed – Completely Reversible
Latchbolt

3/4" deadlocking stainless steel pullman-type
Length

48" (for 42" to 48" Doors)36" (for 30" to 36" Doors)
Minimum Stile Width

4-1/2"
Projections

2-1/2" active 1-3/4" dogged
Stile Type

Wide (Standard)
Strike

757F 793 optional (double door application panic only)
Usage

Medium Duty
Warranty

1 Year
