Trudoor

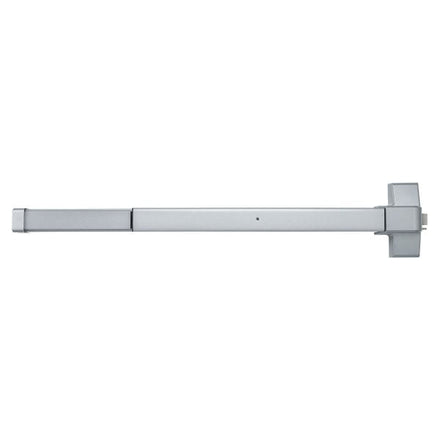

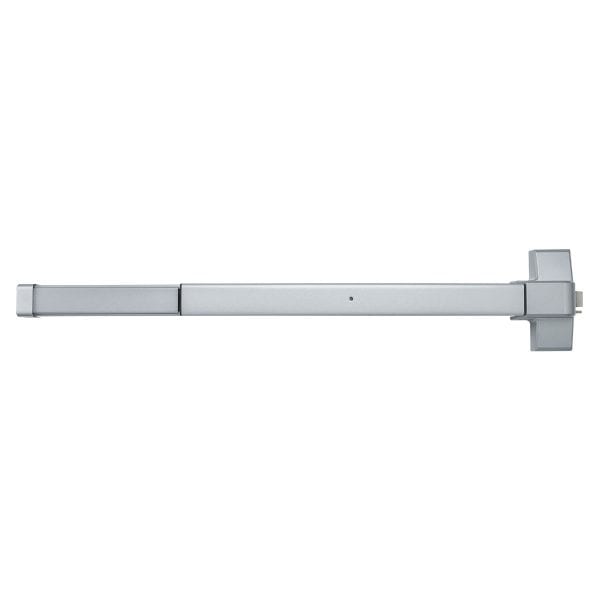

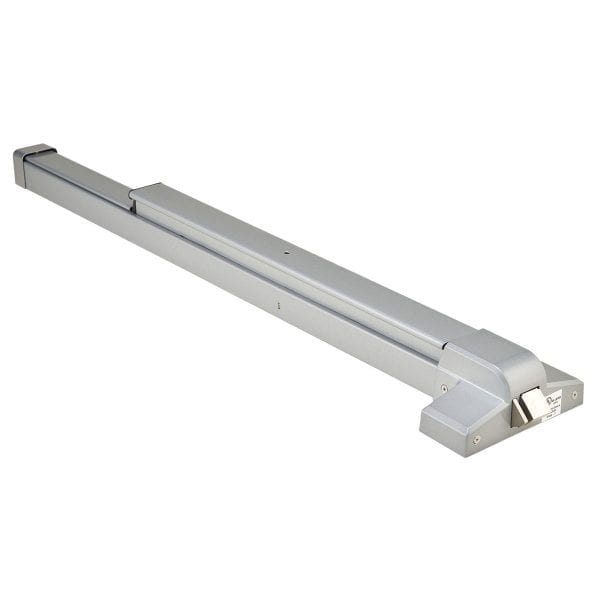

Trudoor TDE-2000R-EO Exit Only Panic Bar Rim Exit Device

$142.01
Usually Ships:  Same Day
  • Meets ANSI A156.3 Grade-1 standards
  • For use with metal or wood doors
  • Exit only (outside trim sold separately)

Available Options:

Clear

Product Overview

Trudoor TDE-2000R-EO Grade-1 Rim Exit Device, Exit Only

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • TDE-2000R-EO: UL Listed for Panic Exit Hardware
  • TDE-F2000R-EO: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Exit Only (Trudoor Exit Device Trim sold separately)
  • 5/32” hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

ul-listed







Cross Reference

The TDE-2000R can be specified as a substitute for: Cal-Royal 2200EO / 5000EO, Design Hardware 2000R, Dorma 8300, Falcon 19R-EO / 20R, Hager 4700, PDQ 4200, Von Duprin 22EO , Yale 1800 / 2100

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Brand

Trudoor
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

BlackAluminum
Finishes

AL - AluminumBLK - Matte Black
Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed
Handing

Non Handed – Completely Reversible
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Length

4ft (for doors 3'4" to 4'0")3ft (for doors 2'4" to 3'0")
Minimum Stile Width

4" w/ Standard Roller Strike
Model

TDE-2000R Panic Device (w/ Dogging Feature)TDE-F2000R Fire-Rated Device (No Dogging)
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Stile Type

Wide (Standard)
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Trim

None - Exit Only (Outside Trim Sold Separately)
Usage

Medium Duty
