Product Overview

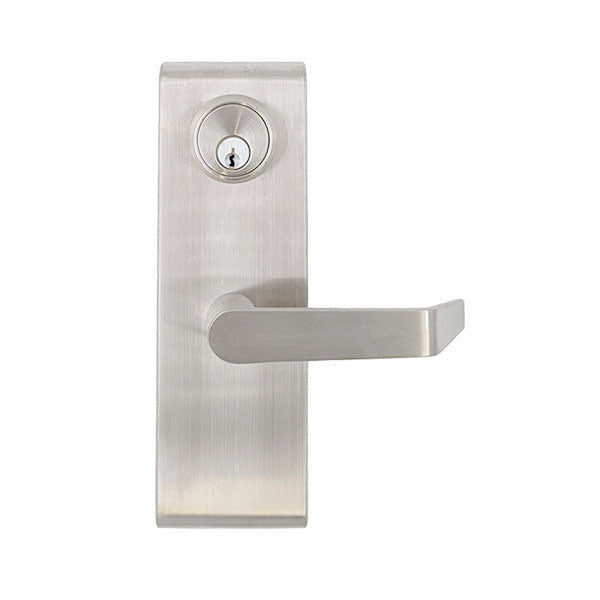

Trudoor TDE-08 Grade-1 Entry Escutcheon Lever Trim with Cylinder, Classroom (08) / Night Latch / Storeroom (09) Function, Satin Stainless Steel
- For use with Trudoor TDE 1000 and 2000 Series exit devices
- ANSI function: 08 (key locks/unlocks lever) or *09 (key retracts latch bolt)

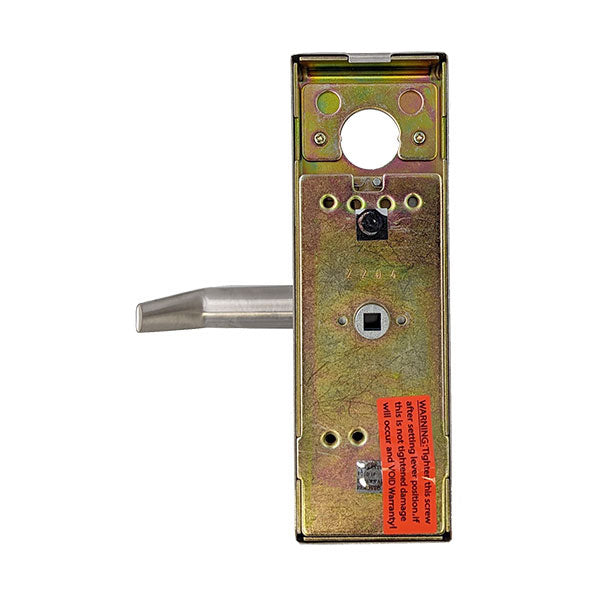

- Steel, zinc dichromated chassis, stainless steel exterior housing
- Thru-bolts to exit device for added strength
- 5″ solid stainless steel lever, 2-7/8″ total projection
- Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
- 1-3/4″ door thickness standard
- Includes thru bolt posts and 1/4″-20 machine screws for installation
- Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys
* Can be converted to 09 Night Latch function in the field by inverting the cylinder cam
| ANSI Grade |
Meets ANSI/BHMA A156.3 Grade 1 standards |
|---|---|
| Brand |
Trudoor |
| Cylinder |
1-1/8" mortise cylinder with straight cam (included) |
| Finish |
Stainless Steel |
| Finishes |
US32D (630) Satin Stainless Steel |
| Function |
Night Latch LeverEntry / Classroom |
| Handing |
Non-Handed Field selected at the time of installation |
| Keyway |
Schlage C Keyway |
| Usage |
Heavy Duty |
| Warranty |
Limited Lifetime Warranty |
