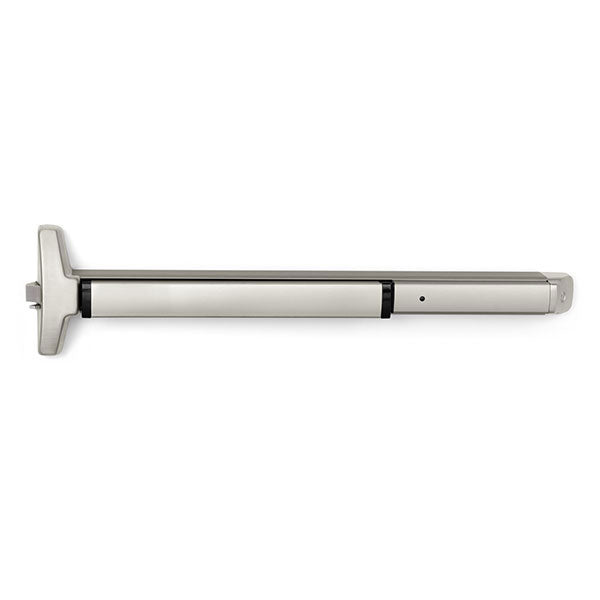

Accentra (Formerly Yale) 6200ED Narrow Stile Panic Rim Exit Device

$631.31
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Designed for narrow stile doors
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

Accentra (formerly Yale) 6000 Series Commercial Rim Exit Device for Narrow Stile Doors, 6200ED, Exit Only

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

The 6200ED is a narrow stile rim exit device compatible with the aesthetics and functional requirements of contemporary doors. The 6200ED comes in varied finishes and can be combined with a variety of trims to match any desired style.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Designed for narrow stile doors
  • 3/4" throw deadlocking stainless steel pullman latch
  • Non-handed for easy installation
  • Used with narrow stile trim
  • Unique design provides noise reduction and smooth operation of the touch bar
  • Attractive, modern design blends aluminum rail with architectural finishes
  • ANSI/BHMA Grade 1 certified for long life
  • Multiple security features provide added resistance against vandalism and authorized entry
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4″ Thick Doors
Fasteners

Machine screws or wood door screws standard for panic
Finish

Dark BronzeBlackStainless Steel
Finishes

BSP Black Suede Powder Coat613e Dark Oxidized Satin Bronze equivalent630 Satin Stainless Steel
Fire Rating

Non-Fire-Rated
Handing

Non Handed – Completely Reversible
Latchbolt

3/4" deadlocking stainless steel pullman-type
Length

48" (for 42" to 48" Doors)36" (for 30" to 36" Doors)24" (for 24" Doors)
Minimum Stile Width

3-1/8"
Projections

3-1/4" active 2-1/2" dogged
Stile Type

Narrow
Strike

759 standard; 793 optional for pairs panic only
Usage

Heavy Duty
Warranty

10 Years
