Product Overview

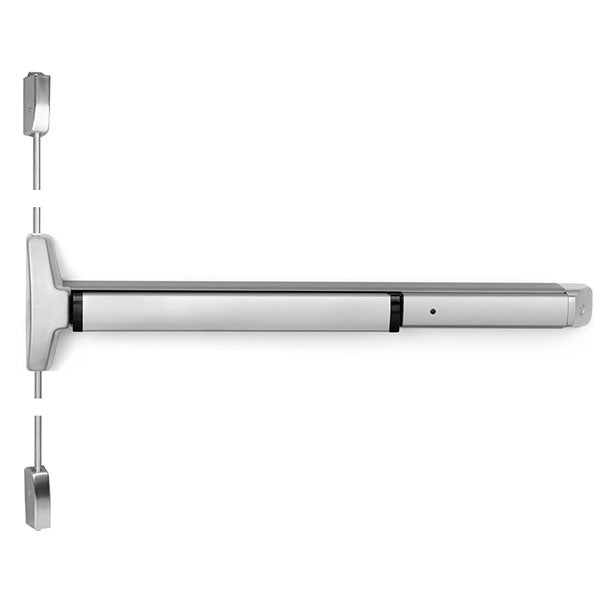

Accentra (formerly Yale) 6000 Series Wide Stile Surface Vertical Rod Exit Device for Narrow Stile Doors, 6210ED, Exit Only, 7ft. Height Doors
With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.
The 6210ED is a narrow stile surface vertical rod exit device to be used on narrow stile, aluminum and metal doors where two-point latching is desired.
- Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
- Designed for narrow stile doors
- Field reversible handing
- Bottom deadbolt for secure latching
- Fully adjustable roller strike
- Used with narrow stile trim
- Unique design provides noise reduction and smooth operation of the touch bar
- Attractive, modern design blends aluminum rail with architectural finishes
- ANSI/BHMA Grade 1 certified for long life
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.3 Grade 1 |
|---|---|
| Brand |
Accentra (Formerly Yale) |
| Device Type |
Surface Rod Device |
| Dogging Feature |
Half turn hex dogging standard |
| Door Applications |
1-3/4″ Thick Doors |
| Door Height |
up to 7'0" |
| Fasteners |
Machine screws or wood door screws standard for panic |
| Finish |
Dark BronzeBlackStainless Steel |
| Finishes |
630 Satin Stainless SteelBSP Black Suede Powder Coat613e Dark Oxidized Satin Bronze equivalent |
| Fire Rating |
Non-Fire-Rated |
| Handing |
Completely Reversible |
| Latchbolt |
3/4" pullman style with auto deadlatching; Bottom 5/8" deadbolt held retracted during door swing |
| Length |
24" (for 24" Doors)48" (for 42" to 48" Doors)36" (for 30" to 36" Doors) |
| Minimum Stile Width |
2-3/4" (70mm) does not include glass stop |
| Projections |
3-1/4" active 2-1/2" dogged |
| Stile Type |
Narrow |
| Strikes |
790 flush mount |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
