Accentra (Formerly Yale)

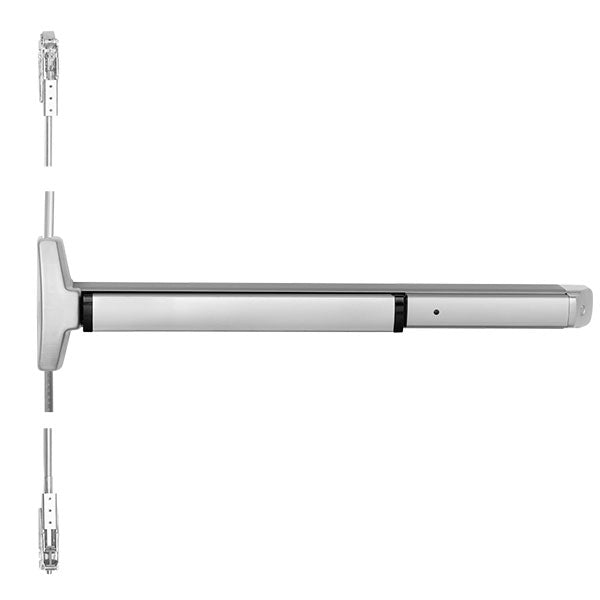

Accentra (Formerly Yale) 6220ED Narrow Stile Concealed Vertical Rod Exit Device

$721.03
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Designed for narrow stile doors
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

Accentra (formerly Yale) 6000 Series Wide Stile Concealed Vertical Rod Exit Device for Narrow Stile Doors, 6220ED, Exit Only, Up to 8ft. Height Doors

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

The 6220ED is a narrow stile concealed vertical rod exit device to be used on narrow stile, aluminum and metal doors where two-point latching is desired.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Designed for narrow stile doors
  • Field reversible handingBottom deadbolt for secure latching
  • Fully adjustable roller strike
  • Used with narrow stile trim
  • Unique design provides noise reduction and smooth operation of the touch bar
  • Attractive, modern design blends aluminum rail with architectural finishes
  • ANSI/BHMA Grade 1 certified for long life
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Device Type

Concealed Rod Device
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4″ Thick Doors
Door Height

Standard door height adjustable to 8'
Fasteners

Machine screws or wood door screws standard for panic
Finish

Dark BronzeBlackStainless Steel
Finishes

613e Dark Oxidized Satin Bronze equivalent630 Satin Stainless SteelBSP Black Suede Powder Coat
Fire Rating

Non-Fire-Rated
Handing

Completely Reversible
Latchbolt

3/4" pullman style with auto deadlatching; Bottom 5/8" deadbolt held retracted during door swing
Length

36" (for 30" to 36" Doors)24" (for 24" Doors)48" (for 42" to 48" Doors)
Minimum Stile Width

2-3/4" (70mm) does not include glass stop
Projections

3-1/4" active 2-1/2" dogged
Stile Type

Narrow
Strikes

790 flush mount
Usage

Heavy Duty
Warranty

10 Years
