Accentra (Formerly Yale)

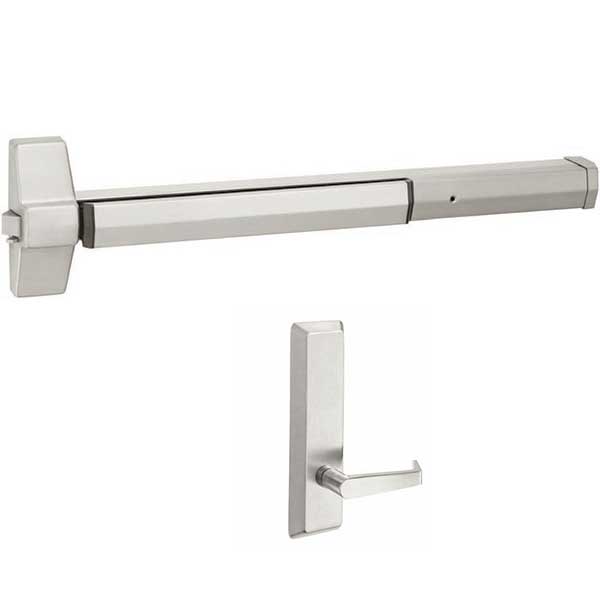

Accentra (Formerly Yale) 7100 x AU628F Panic Rim Exit Device with Passage Lever Trim

$1,417.35
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (Passage)
  • Includes AU-628F Lever Trim

Available Options:

Clear

Product Overview

Accentra (formerly Yale) 7100/7100F Rim Exit Device, AU-628F Passage Lever Trim

Accentra 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation, and aesthetics. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. When the beauty of your facility matters almost as much as life safety.

The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood, or composite materials. Designed for application in high-use areas.

  • ANSI Function 14 (Passage): Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Steel chassis and heavy-duty components for superior strength, robustness and lower maintenance
  • Electroplated ferrous components provide corrosion resistance
  • Sleek design with clean lines offers a modern look
  • 7100F: UL/cUL Listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted
  • Windstorm certified (refer to local codes)
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

AU-628F Lever Trim

  • ANSI Function: 14
  • AU (Agusta) lever design
  • Trim through-bolts to exit device for strength
  • Field reversible – ships as RHR
  • Dimensions: 3″ x 10-1/4″ x 13/16″
  • Projection: 2-5/8″
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4" Metal wood or composite doors
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

Stainless Steel
Finishes

630 Satin Stainless Steel
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

UL/cUL Listed for use on fire doors up to 3 hours
Handing

Completely Reversible
Latchbolt

3/4" deadlocking stainless steel pullman-type
Length

48" (for 42" to 48" Doors)36" (for 30" to 36" Doors)
Lever Design

AU (Augusta)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active 2-3/4" dogged
Stile Type

Wide (Standard)
Strike

757F 793 optional (double door application panic only)
Usage

Heavy Duty
Warranty

5-year limited
