Product Overview

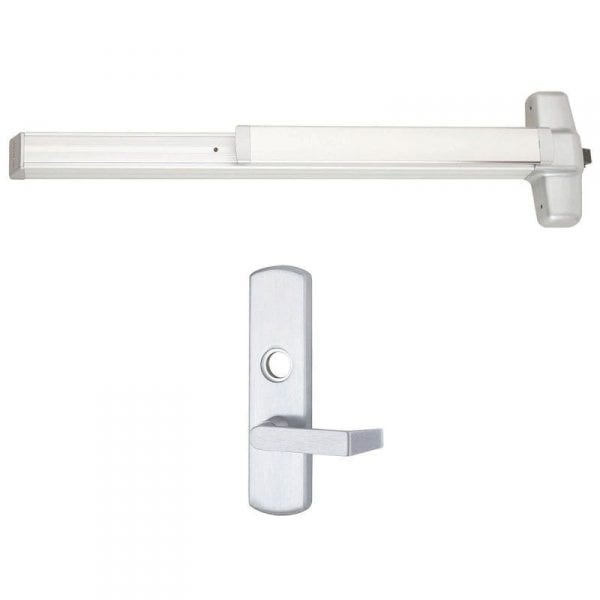

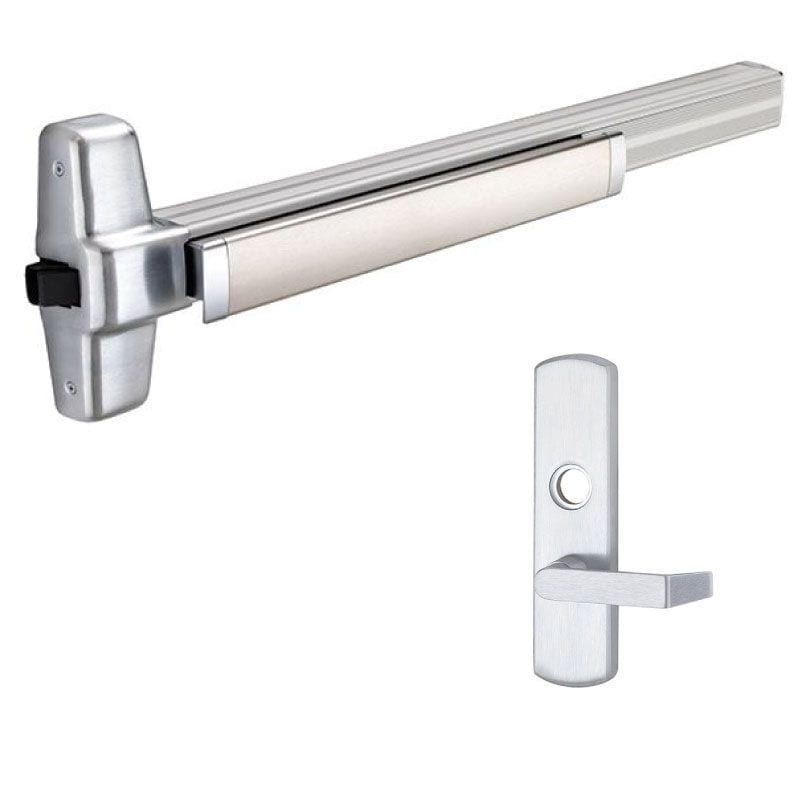

Von Duprin 99L Grade 1 Rim Exit Device with Lever Trim, Wide Stile Pushpad, Classroom Function, 06 Lever with Escutcheon, Field Reversible
High-performance, wide stile rim exit device with heavy-duty lever trim for high use and abuse applications
Often regarded as one of the world's finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.
- Designed for high use and abuse in commercial and institutional applications

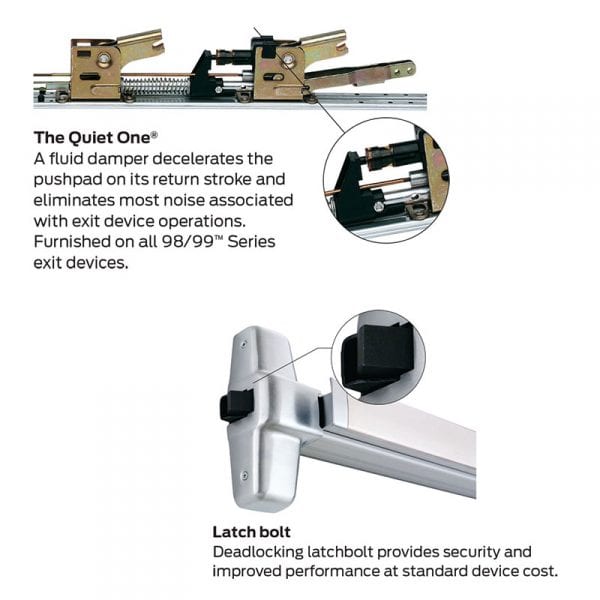

- Deadlocking Latchbolt Standard

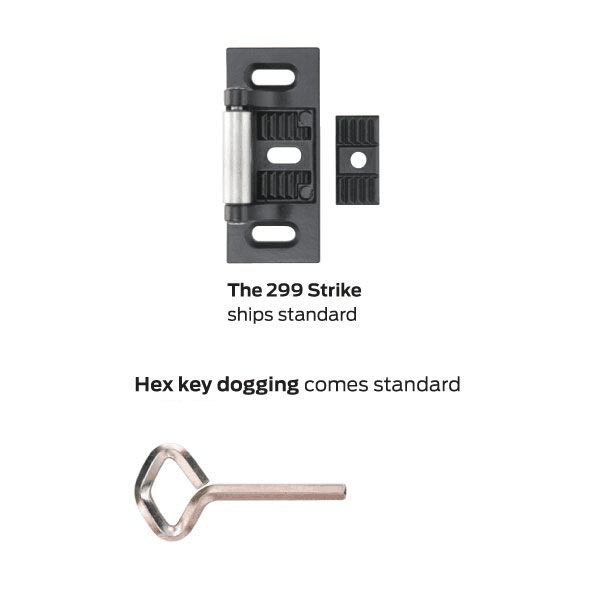

- 299 Roller Strike Standard
- Stock Sizes: 3' and 4' - Cut to size in field
996L Breakaway Lever Trim has become the standard lever trim offering on 99L Series devices. The Breakaway design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly repairs from becoming necessary.
- ANSI Function: 08
- Escutcheon plate size: 2-3/4" x 10-3/4" x 27/32"
- Projection: 2-7/8"
- #06 lever style furnished standard
- Field reversible - ships as RHR
- Requires rim cylinder (sold separately)
| ANSI Function |
F08 |
|---|---|
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Cylinder |
1-1/8" Rim Cylinder (Sold Separately) |

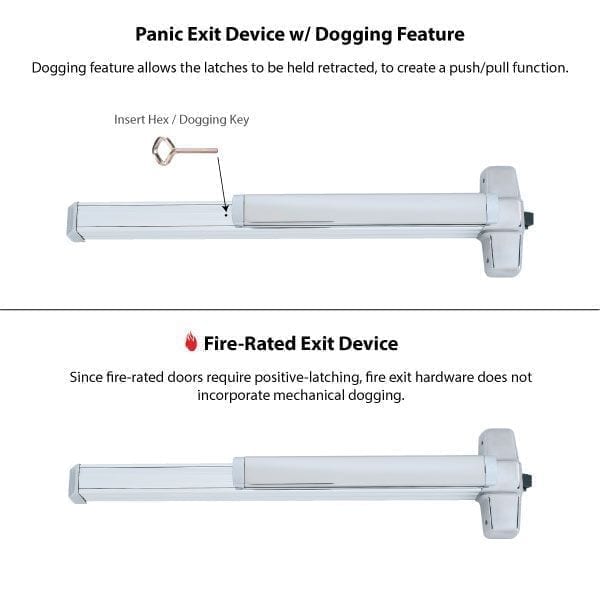

| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4″ Thick Doors |
| Fasteners |
Includes screws for metal and wood doors |
| Finish |
Satin ChromeAnodized AluminumDark BronzeBlack |
| Finishes |
US19 (315) Flat BlackUS28 (628) Anodized Aluminum313 Duranodic Dark BronzeUS26D (626) Satin Chrome |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
UL Listed A or B label Fire-Rated (3 Hours) |
| Hand |
Device Non-Handed - Lever Ships as RHR (Field Reversible) |
| Includes Trim |
Yes |
| Latchbolt |
Deadlatching 3/4" throw |
| Length |
3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |
| Strike |
299 roller strike standard 299F strike with fire-rated device |
| Trim |
996L (Entry - Key Locks & Unlock Lever) |
| Usage |
Heavy Duty |
