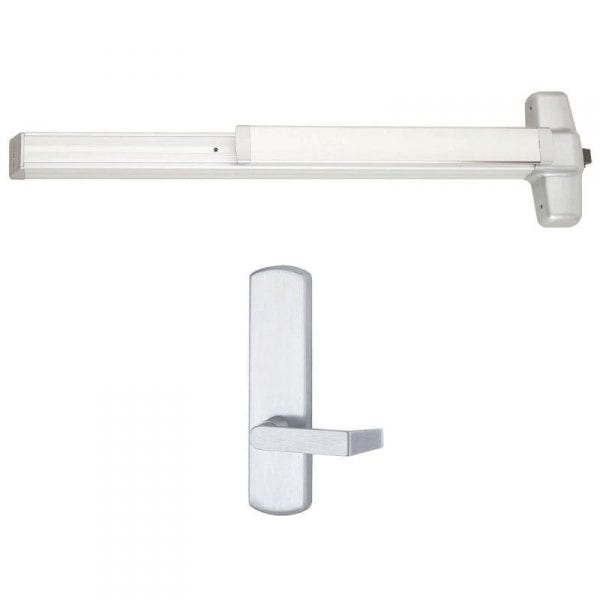

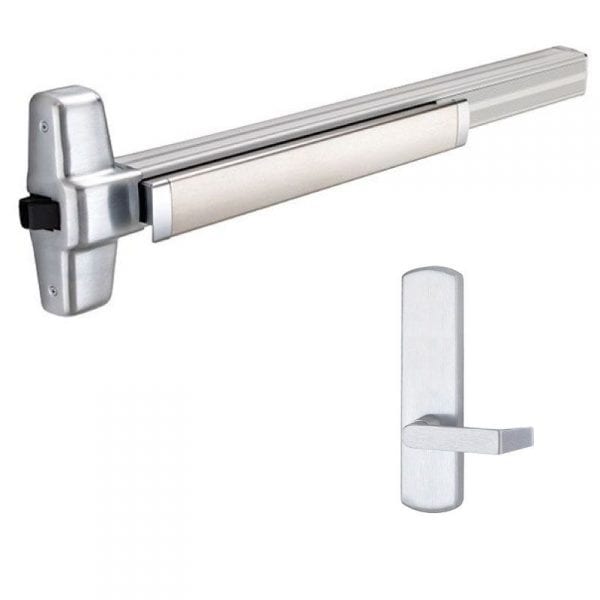

Von Duprin 99L-BE Rim Exit Device with Passage Lever

$1,813.02
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 14 (lever always unlocked and operable)
  • Includes 996L-BE-R/V-06 lever

Available Options:

Clear

Product Overview

Von Duprin 99L-BE Grade 1 Rim Exit Device with Lever Trim, Wide Stile Pushpad, Passage Function, 06 Lever with Escutcheon, Field Reversible

High-performance, wide stile rim exit device with heavy-duty lever trim for high use and abuse applications

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

  • Designed for high use and abuse in commercial and institutional applications
  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3' and 4' - Cut to size in field

996L-BE Blank Escutcheon Lever Trim

  • ANSI Function: 14 - Lever always operable (no cylinder)
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard
  • Field reversible - ships as RHR

ANSI Function

F14
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Doors
Fasteners

Includes screws for metal and wood doors
Finish

BlackSatin ChromeAnodized AluminumDark Bronze
Finishes

313 Duranodic Dark BronzeUS26D (626) Satin ChromeUS19 (315) Flat BlackUS28 (628) Anodized Aluminum
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed A or B label Fire-Rated (3 Hours)
Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)
Includes Trim

Yes
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Strike

299 roller strike standard 299F strike with fire-rated device
Trim

996L-BE (Passage - Lever Always Operable No Cylinder)
Usage

Heavy Duty
