Von Duprin 99DT Rim Exit Device with Dummy Pull

$1,490.94
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 02 (pull when dogged)
  • Include 990DT dummy pull

Available Options:

Clear

Product Overview

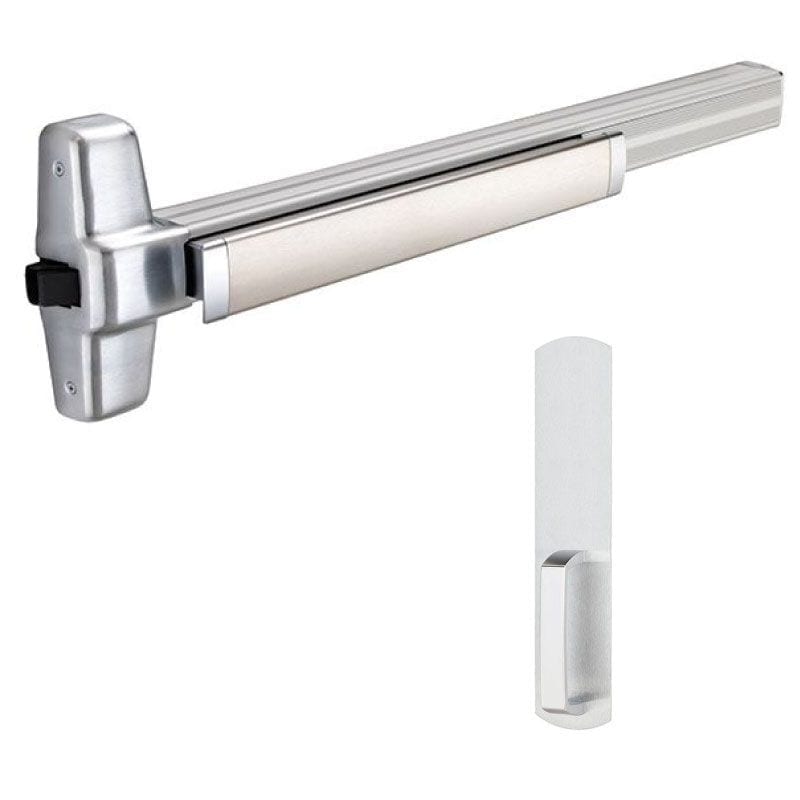

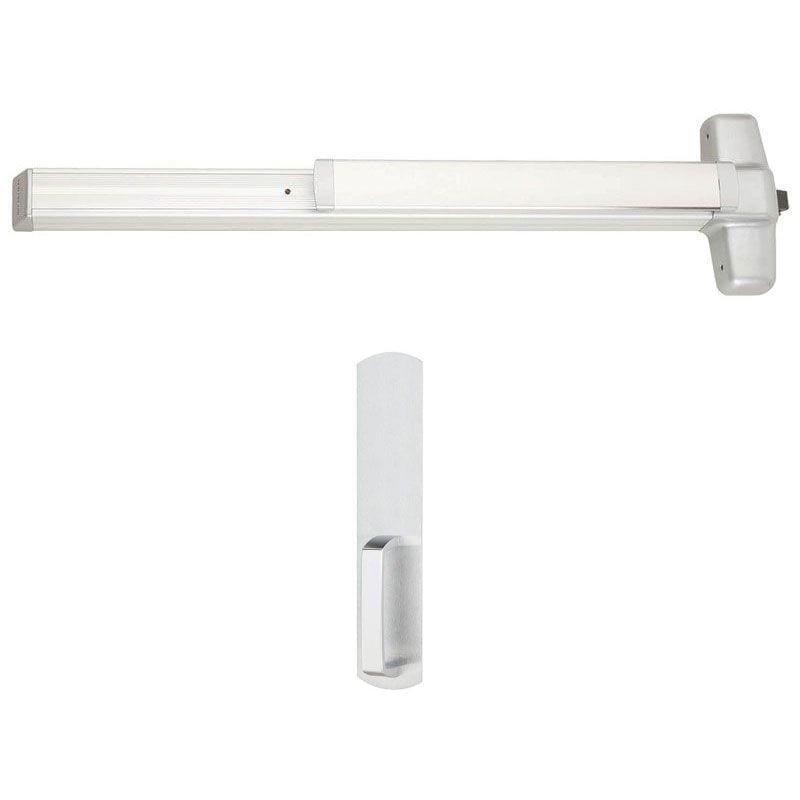

Von Duprin 99DT Grade 1 Rim Exit Device with Dummy Pull, Wide Stile Pushpad, Field Reversible

High-performance, wide stile rim exit device with heavy-duty pull trim for high use and abuse applications

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3' and 4' - Cut to size in field

990DT Dummy Pull Trim

  • ANSI Function: 02
  • Escutcheon plate size: 3" x 14-13/16" x 3/32"
  • Projection: 2"
  • Pull center to center: 5-1/2"

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4″ Thick Doors
Fasteners

Includes screws for metal and wood doors
Finish

BlackSatin ChromeAnodized AluminumDark Bronze
Finishes

US19 (315) Flat BlackUS28 (628) Anodized Aluminum313 Duranodic Dark BronzeUS26D (626) Satin Chrome
Fire Rating

Non-Fire-Rated
Hand

Non-handed
Includes Trim

Yes
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Strike

299 roller strike standard
Trim

990DT (Dummy Pull - Pull When Dogged)
Usage

Heavy Duty
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions_db05679c-0f5f-46bb-959a-6c957861b25f Von_Duprin_990DT_EO_Trim_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device
