Von Duprin

Von Duprin 99L-NL Rim Exit Device with Night Latch Lever

$1,773.42
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 09 (night latch – key retracts latchbolt)
  • Includes 996L-NL-R/V-06 lever (cylinder sold separately)

Available Options:

Clear

Product Overview

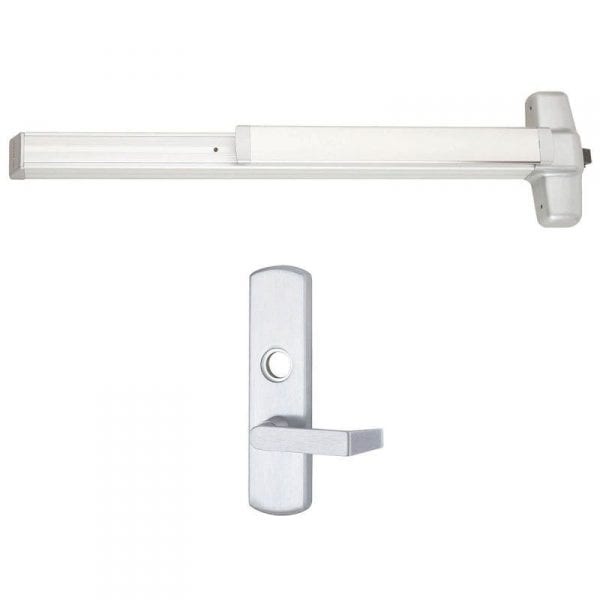

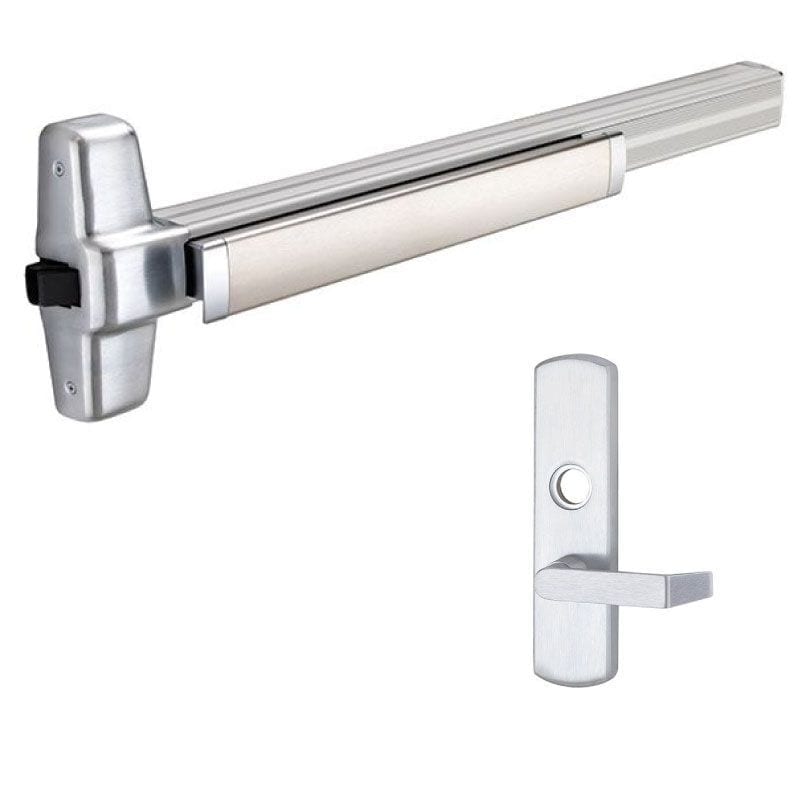

Von Duprin 99L-NL Grade 1 Rim Exit Device with Lever Trim, Wide Stile Pushpad, Night Latch Function, 06 Lever with Escutcheon, Field Reversible

High-performance, wide stile rim exit device with heavy-duty lever trim for high use and abuse applications

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

  • Designed for high use and abuse in commercial and institutional applications
  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3' and 4' - Cut to size in field

996L-NL Night Latch Lever Trim

  • ANSI Function: 09 (key retracts latchbolt, outside lever always locked - similar to storeroom function lock)
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard
  • Field reversible - ships as RHR
  • Requires rim cylinder (sold separately)

ANSI Function

F09
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Doors
Fasteners

Includes screws for metal and wood doors
Finish

Satin ChromeAnodized AluminumDark BronzeBlack
Finishes

US19 (315) Flat BlackUS28 (628) Anodized Aluminum313 Duranodic Dark BronzeUS26D (626) Satin Chrome
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed A or B label Fire-Rated (3 Hours)
Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)
Includes Trim

Yes
Latchbolt

Deadlatching 3/4" throw
Length

3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors)
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Strike

299 roller strike standard 299F strike with fire-rated device
Trim

996L-NL (Night Latch - Key Retracts Latchbolt)
Usage

Heavy Duty
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions_db05679c-0f5f-46bb-959a-6c957861b25f Von_Duprin-996L-NL-Installation-Instructions How to Install Von Duprin 98/99 Rim Exit Device
