Von Duprin

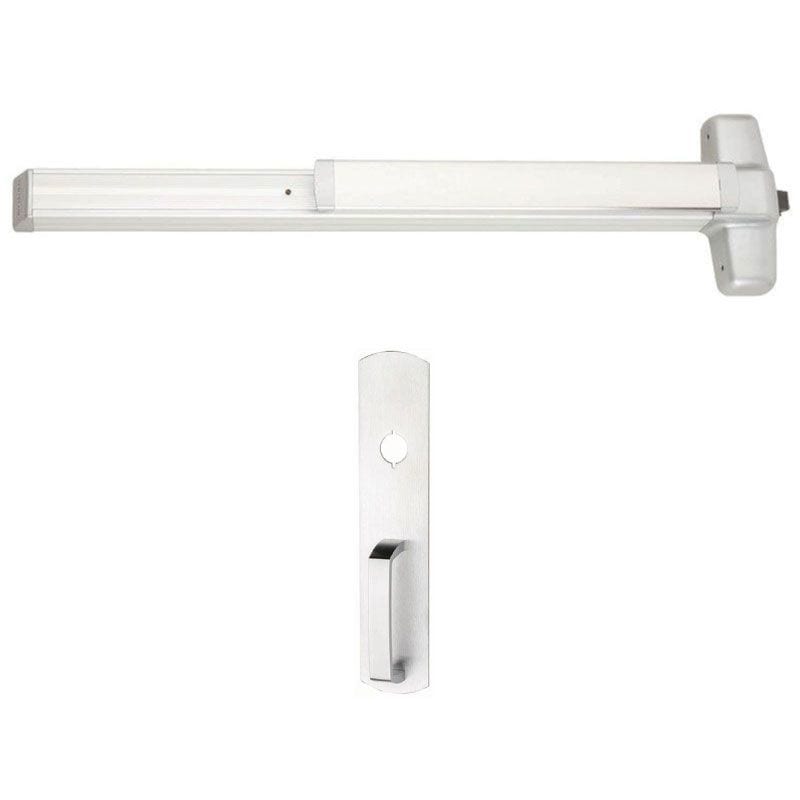

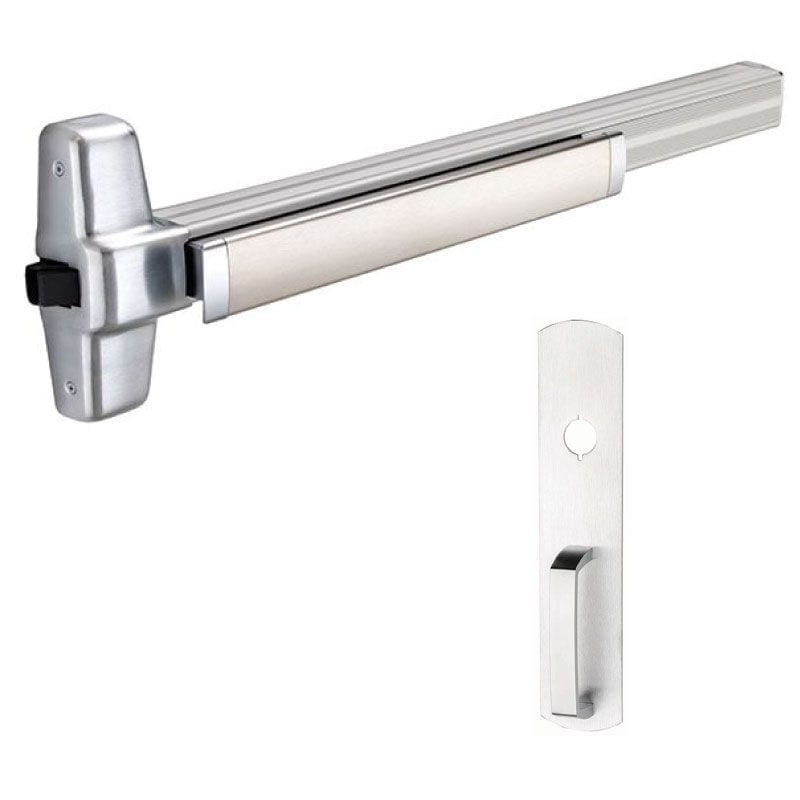

Von Duprin 99NL Rim Exit Device with Night Latch Pull

$1,505.46
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 03 (night latch - key retracts latchbolt)
  • Includes 990NL-R/V pull (cylinder sold separately)

Available Options:

Clear

Product Overview

Von Duprin 99NL Grade 1 Rim Exit Device with Night Latch Pull, Wide Stile Pushpad, Field Reversible

High-performance, wide stile rim exit device with heavy-duty pull trim for high use and abuse applications

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3' and 4' - Cut to size in field

990NL Night Latch Lever Trim

  • ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key - Key is removable only when it's locked)
  • Escutcheon plate size: 3" x 14-13/16" x 3/32"
  • Projection: 2"
  • Pull center to center: 5-1/2"
  • Rim cylinder must be ordered separately

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Doors
Fasteners

Includes screws for metal and wood doors
Finish

Satin ChromeAnodized AluminumDark BronzeBlack
Finishes

313 Duranodic Dark BronzeUS26D (626) Satin ChromeUS19 (315) Flat BlackUS28 (628) Anodized Aluminum
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed A or B label Fire-Rated (3 Hours)
Hand

Non-handed
Includes Trim

Yes
Latchbolt

Deadlatching 3/4" throw
Length

3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors)
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Strike

299 roller strike standard 299F strike with fire-rated device
Trim

990NL (Night Latch - Key Retracts Latchbolt)
Usage

Heavy Duty
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions_db05679c-0f5f-46bb-959a-6c957861b25f Von_Duprin_990TP_TP-BE_NL_Trim_for_Rim_and_Vertical_Rod_Devices_Installation__Instructions How to Install Von Duprin 98/99 Rim Exit Device
