Von Duprin

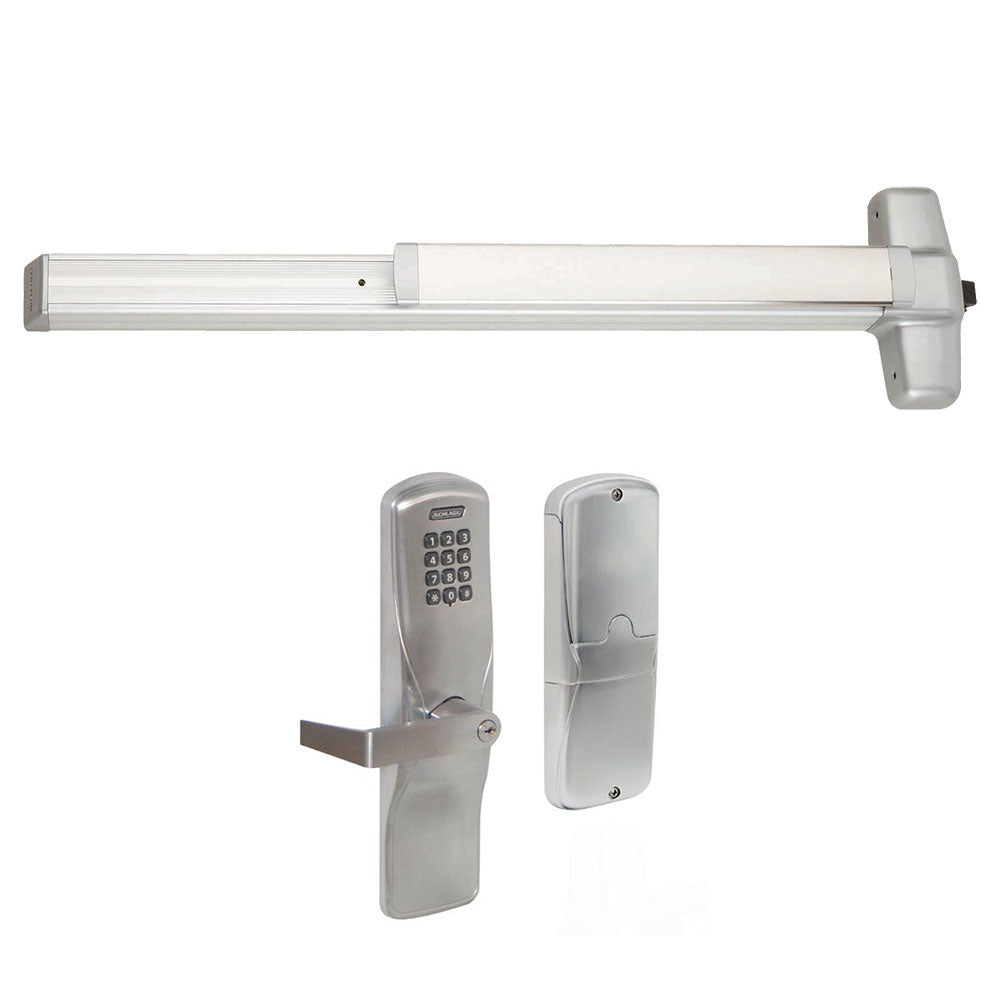

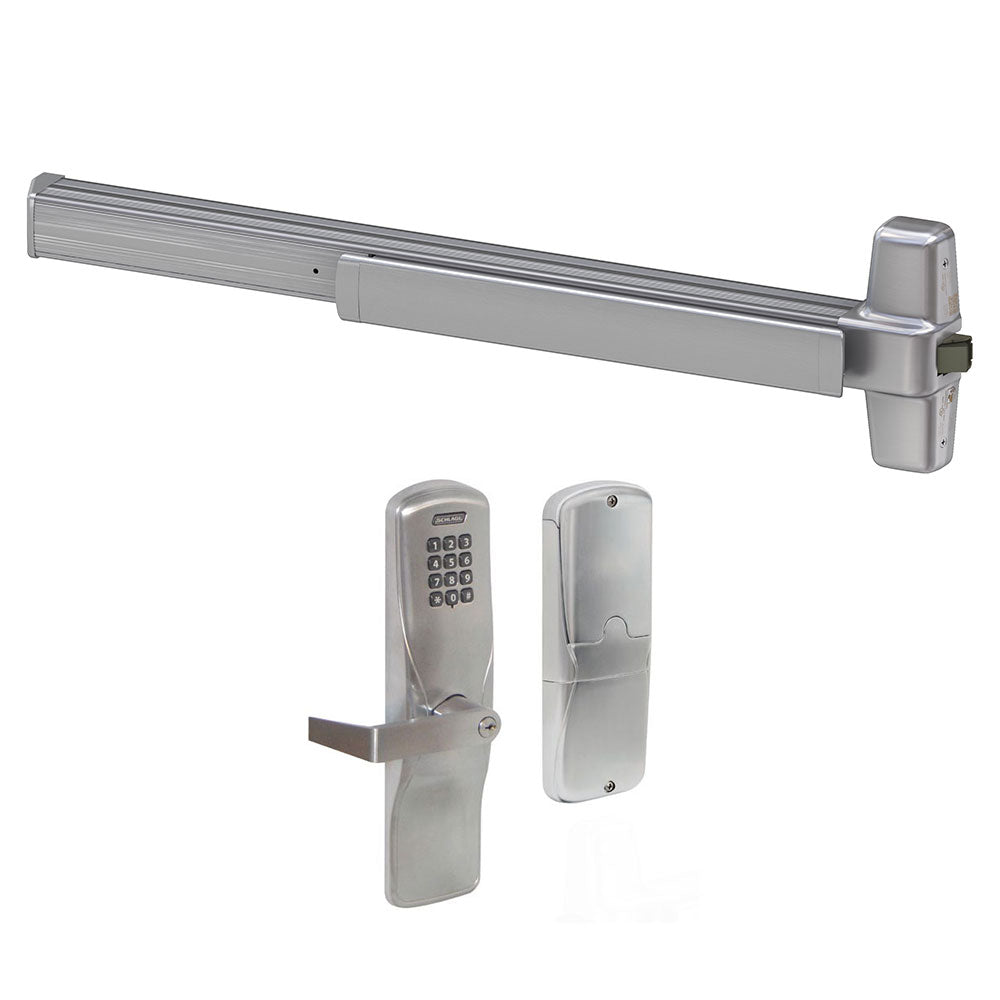

Von Duprin 99 Rim Exit Device with CO-100-993R-70 Electronic Keypad Lever

$2,000.92
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Includes Schlage CO-100-993R-70-KP electronic keypad lever
  • Up to 500 unique PIN codes, mechanical key override

Available Options:

Clear

Product Overview

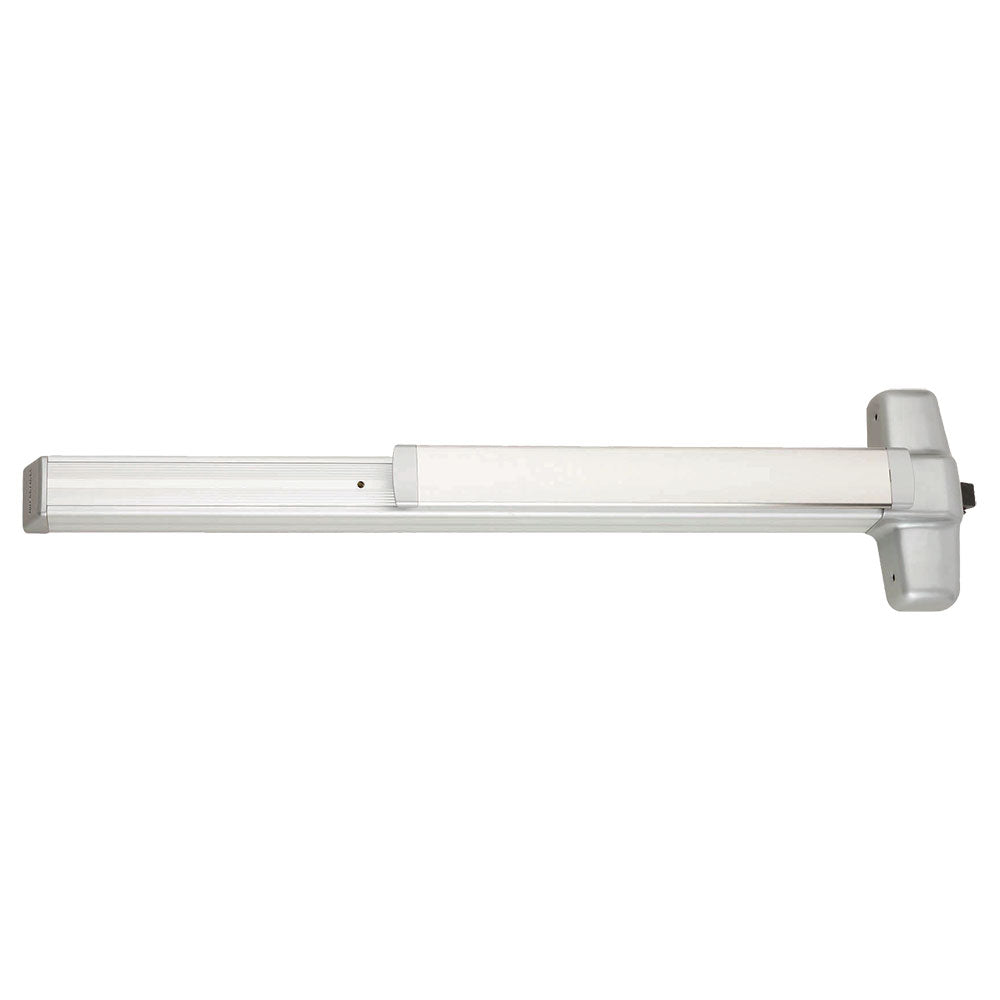

Von Duprin 99 Series Grade 1 Rim Exit Device with Keypad Lever Trim, Wide Stile Pushpad, Field Reversible

Often regarded as one of the world's finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3' and 4' - Cut to size in field

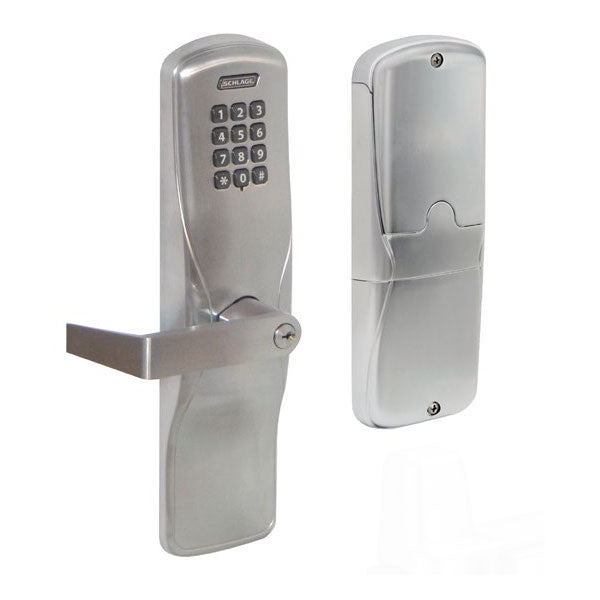

Schlage CO-100-993R-70-KP-RHO Keypad Electronic Rim Exit Device Trim - US26D Satin Chrome

The CO Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to 99 Series exit devices.

  • 4 AA batteries included - up to 2 year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified
  • Key Override (Schlage C Keyway)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Doors
Fasteners

Includes screws for metal and wood doors
Finish

Anodized AluminumSatin Chrome
Finishes

US28 (628) Anodized AluminumUS26D (626) Satin Chrome
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed A or B label Fire-Rated (3 Hours)
Hand

Device Non-Handed - Lever Field Reversible
Includes Trim

Yes
Keyway

Schlage C Keyway
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Strike

299 roller strike standard 299F strike with fire-rated device
Trim

Schlage CO-100-993R-70-KP-RHO - US26D
Usage

Heavy Duty
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions_db05679c-0f5f-46bb-959a-6c957861b25f Schlage_CO-Series_for_Exit_Device_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device How to Install Von Duprin 98/99 Rim Exit Device
