Falcon

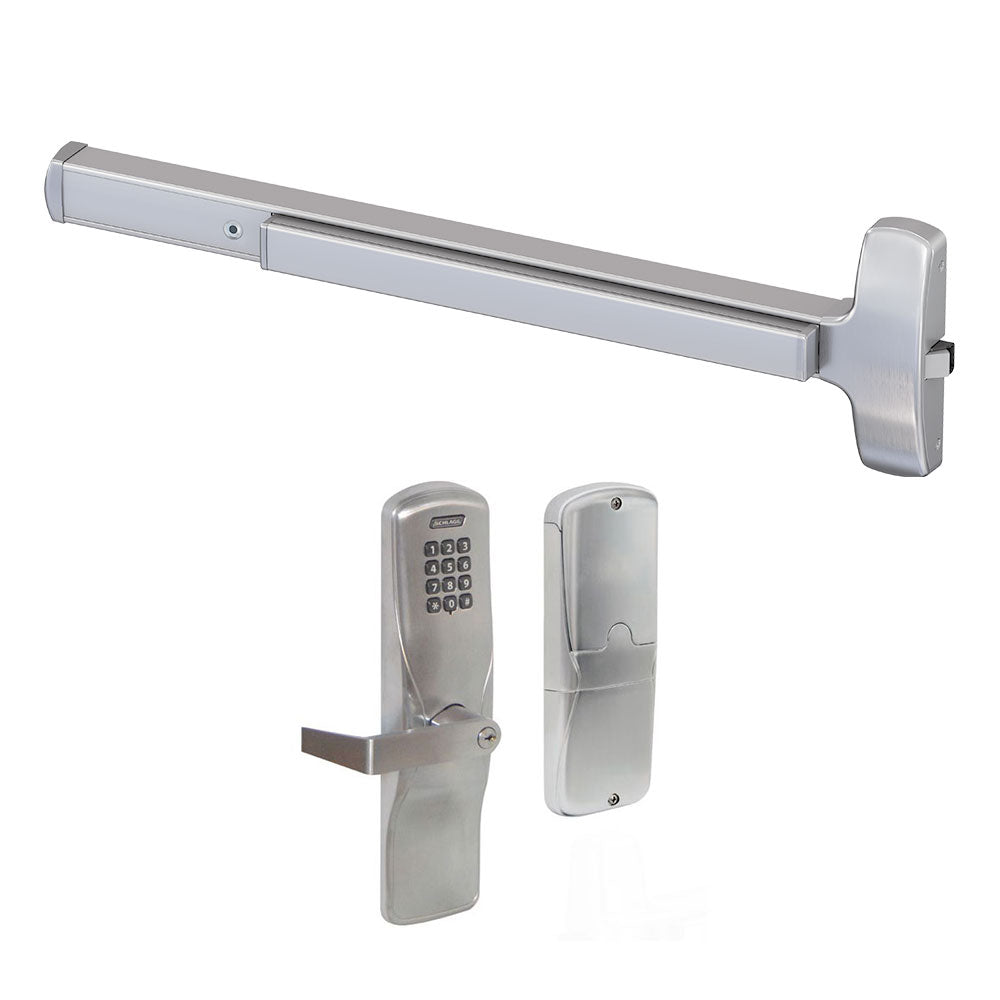

Falcon 25-R-CO-100 Rim Exit Device with CO-100-993R-70 Electronic Keypad Lever

$1,261.57
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes Schlage CO-100-993R-70 Electronic Keypad Lever
  • Up to 500 Unique PIN Codes - Mechanical Key Override

Available Options:

Clear

Product Overview

Falcon 25-R Series panic rim exit device with keypad lever trim is for use with single doors and double doors with a mullion.

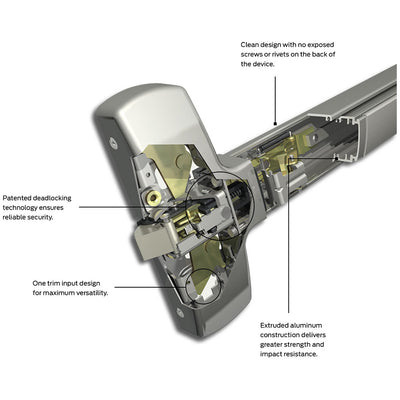

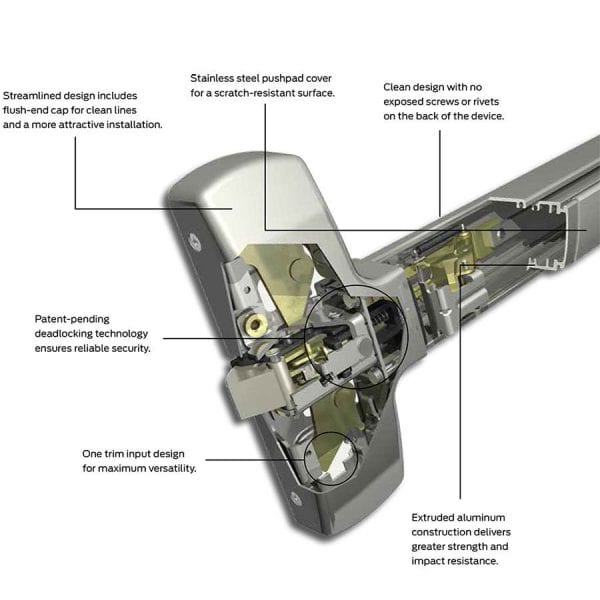

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.

  • Deadlocking latchbolt standard
  • Stock Sizes: 3′ and 4′ – Cut to size in the field

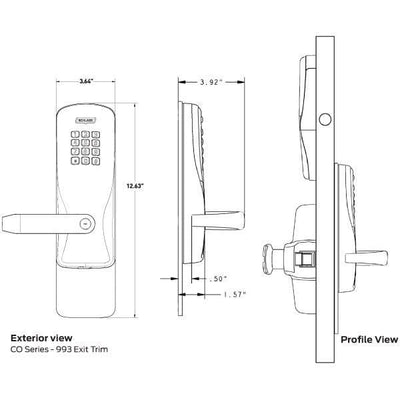

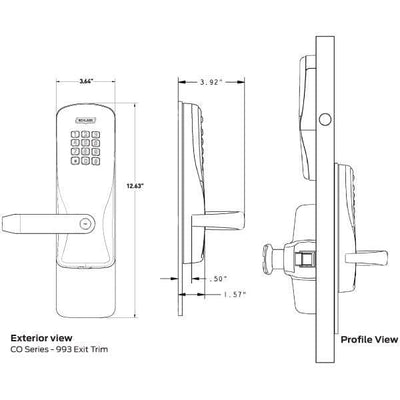

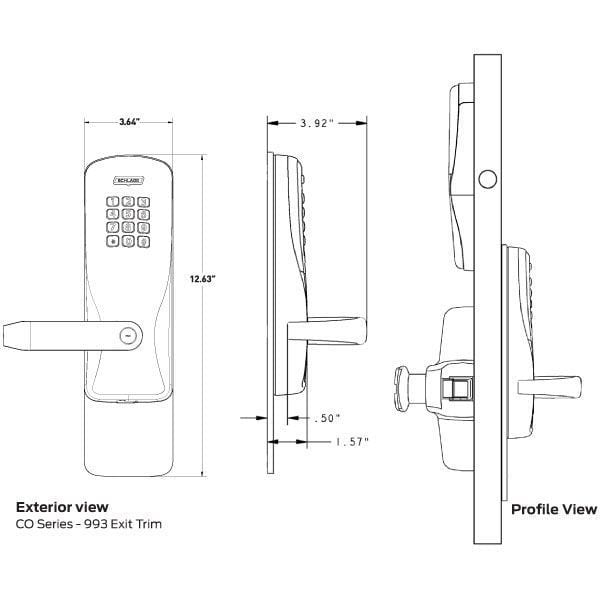

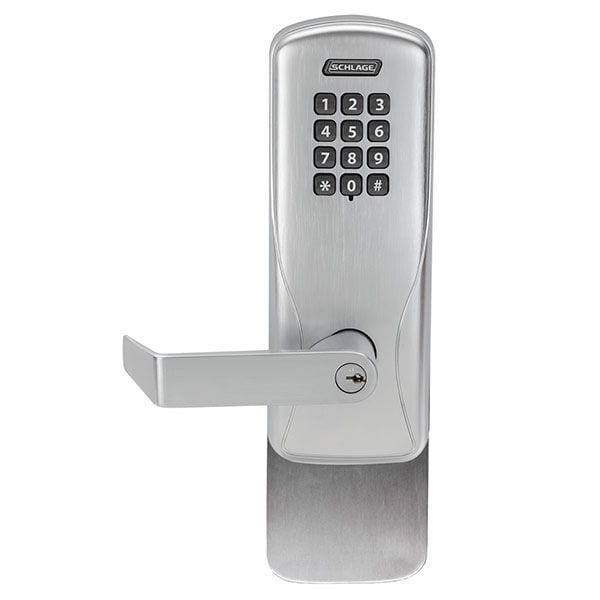

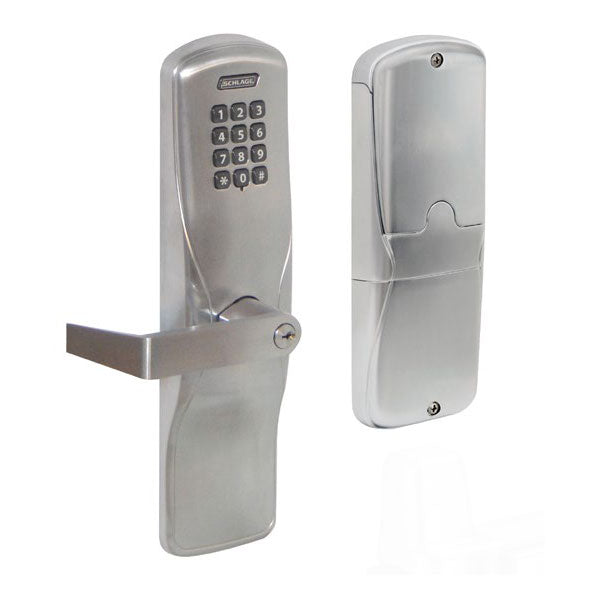

Schlage CO-100-993R-70-KP-RHO Keypad Electronic Rim Exit Device Trim - US26D Satin Chrome

The CO Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to 25 Series exit devices.

  • 4 AA batteries included - up to 2 year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified
  • Key Override (Schlage C Keyway)
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Metal or Wood Doors
Fasteners

All mounting screws are concealed sheet metal screws and machine screws standard
Finish

Anodized AluminumSatin Chrome
Finishes

US28 (628) Anodized AluminumUS26D (626) Satin Chrome
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

3 Hour Fire-Rated
Hand

Device Non-Handed - Lever Field Reversible
Keyway

Schlage C Keyway
Latchbolt

Stainless steel 3/4" throw - Deadlocking
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'8" to 3'0" Doors)
Minimum Stile Width

4" w/ Standard Roller Strike
Projections

2-3/4" maximum 2" dogged
Stile Type

Wide (Standard)
Strike

299 roller strike standard 299F strike with fire-rated device
Trim

Schlage CO-100-993R-70-KP-RHO - US26D
Usage

Heavy Duty
Falcon_25-R_F-25-R_Installation_Instructions Schlage_CO-Series_for_Exit_Device_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device
