Accentra (Formerly Yale)

Accentra (Formerly Yale) PBR 8802FL Privacy, Bedroom, or Bath Mortise Lock with Pacific Beach Lever, Standard Rose

$322.97
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI Function: F19 – Privacy
  • PBR Pacific Beach Lever

Available Options:

Clear

Product Overview

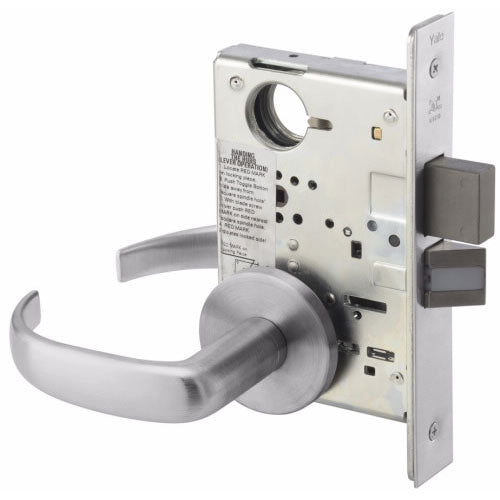

Accentra (formerly Yale) PBR8802FL ANSI/BHMA Grade 1 Certified Mortise Lock, Privacy Function, Sectional Pacific Beach PBR Lever/Rose Trim, 626 Satin Chrome Finish

Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

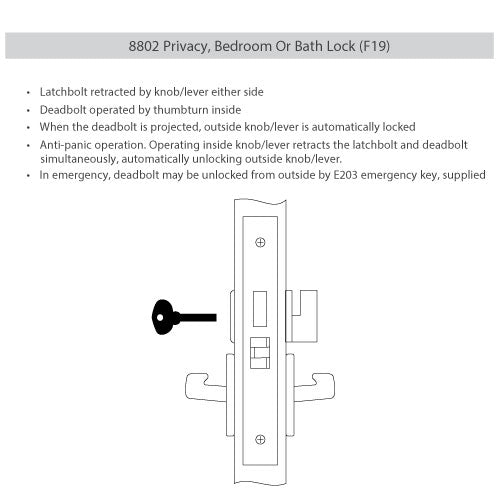

ANSI F19 – Privacy, Bedroom or Bath – Latchbolt retracted by lever either side. Deadbolt operated by thumbturn inside. When the deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever. In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied.

  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing

codes

ANSI Function

F19
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13 Series 1000
Armored Front

8" x 1-1/4"
Backset

2-3/4"
Brand

Accentra (Formerly Yale)
Case

wrought steel zinc dichromated
Door Thickness

1-3/4"
Finish

Satin Chrome
Finishes

626 Satin Chrome
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Latchbolt

3/4" throw stainless steel one-piece anti-friction
Lever Design

PBR (Pacific Beach)
Lock Function

Privacy
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Usage

Heavy Duty
Warranty

10 Years
Yale-8800-Installation-Instructions How to Install Von Duprin 98/99 Rim Exit Device
