Accentra (Formerly Yale)

Accentra (Formerly Yale) AU-NTT613-NR nexTouch Push Button Keypad Rim Exit Device Trim, Augusta Lever

$735.93
This item ships FREE! Usually Ships:  1-2 Business Days
  • Standalone electronic rim exit device trim (exit device not included)
  • Compatible with Yale, Von Duprin, Sargent, Corbin Russwin, and more
  • Up to 500 unique PIN codes, mechanical key override

Available Options:

Clear

Product Overview

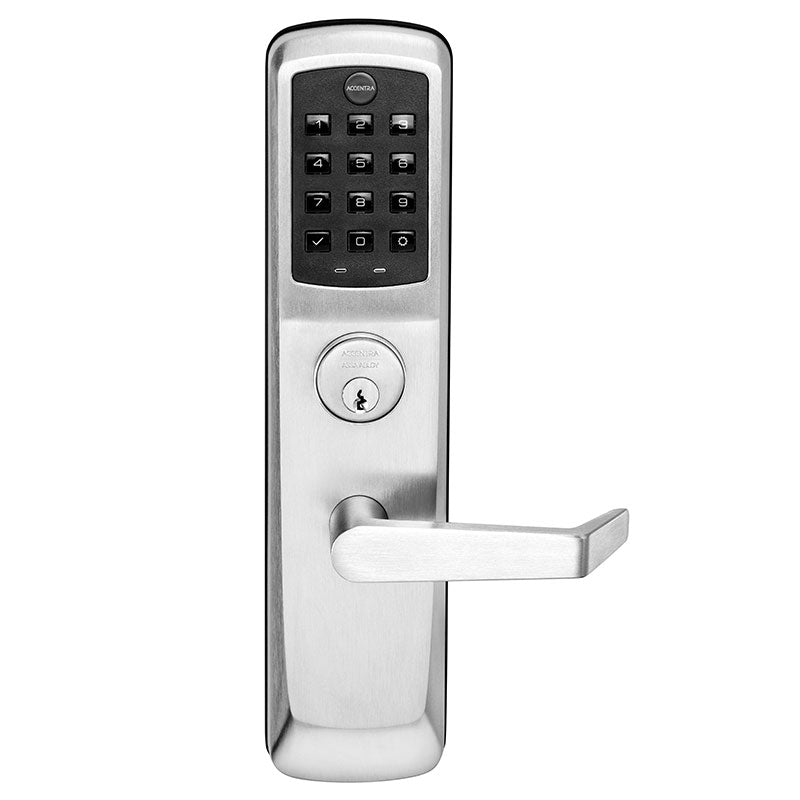

Accentra (Formerly Yale) AU-NTT613-NR Nextouch Keypad Exit Trim, Pushbutton Keypad, Augusta Lever, Cylinder Override

Formerly known as AU-NTT612-NR (Generation 2)
Formerly known as AU-NTT610-NR (Generation 1)

Whether for a new opening or an existing door, the Yale nexTouch Keypad Exit Trim is the perfect way to upgrade almost any exit device for easy, key-free access. Perfect for a variety of applications, including delivery doors, stairwells, or on an existing exit device, Yale nexTouch Keypad Exit Trim offers a new level of convenience to your commercial facility.

Benefits

  • Easy Traffic Control: Engineered to provide an easy-to-use access control solution to protect your facility and personnel
  • Retrofit-friendly: Able to be installed in place of mechanical exit trim on many pushpad exit devices, including competitor models
  • Key-free Convenience: Reduces investment and maintenance costs associated with managing keys
  • ANSI/BHMA: Grade 1 certification ensures long life and reliability

Features

  • Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance

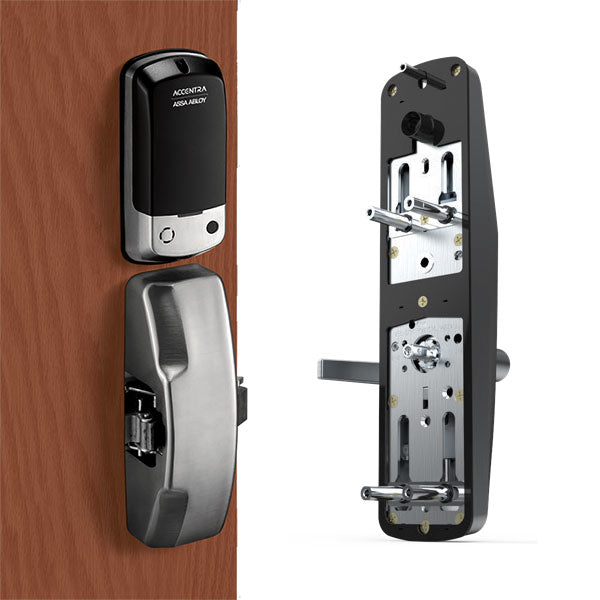

  • Patented adjustable mounting posts enable retrofit onto many exit device models without any additional hardware
  • Up to 500 user codes in keypad only operation
  • 9V battery power backup prevents lockout even if the batteries fail
  • Keypad lockout feature: Deters tampering by disabling the keypad for a default of 180 seconds after five (5) successive failed attempts.

Device Compatibility

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Cylinder

K660 SFIC Housing (less core)2553 Schlage C KeywayLess Cylinder (no cylinder)2153 Accentra/Yale E1R Para Keyway
Cylinder Format

Small Format Interchangeable Core (SFIC)Conventional
Door Thickness

1-3/4"
Finish

Dark BronzeBlackSatin Chrome
Finishes

626 Satin ChromeBSP Black Suede Powder Coat613e Dark Oxidized Satin Bronze equivalent
Fire Rating

UL and cUL Listed – up to 3 Hours
Handing

Easily Re-handed in the field – Shipped as RHR
Keyway

Schlage C KeywayAccentra/Yale E1R (Para) Keyway
Lever Design

AU (Augusta)
Lock Function

Exit Device Trim
Lock Type

Exit Device Trim
Power

Battery-operated with low power indicator or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low.
Usage

Heavy Duty
Warranty

3 Year Limited
