Product Overview

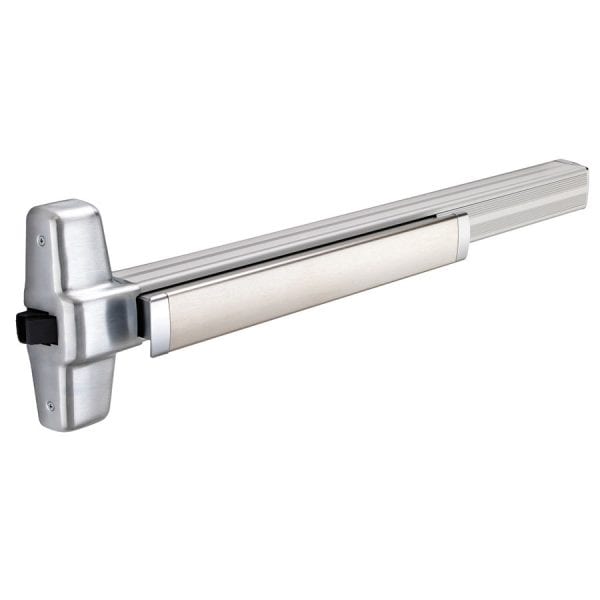

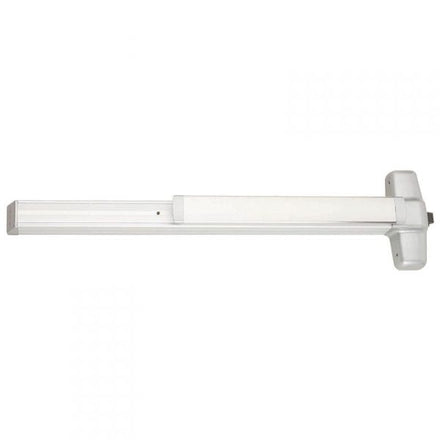

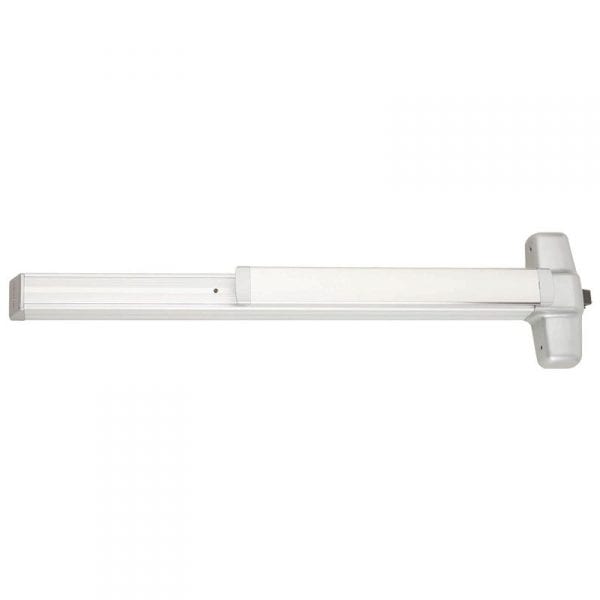

Von Duprin 99EO Grade-1 Rim Exit Device, Wide Stile Pushpad, Panic Rated, Exit Only, Hex Key Dogging
High-performance, wide stile heavy-duty rim exit device for high use and abuse applications
Often regarded as one of the world's finest panic bar exit devices, the 99 Series has been certified to the highest industry standards and is used in schools, hospitals, government buildings, and other commercial and institutional applications.
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
- For use with single doors or double doors with mullions
- Deadlocking latchbolt standard
- Stock Sizes: 3' and 4' - can be cut to size in the field

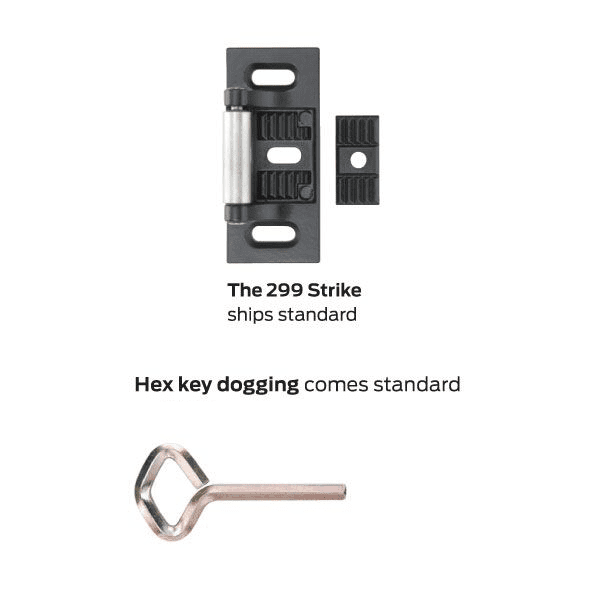

- 299 Roller Strike Standard
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Dogging Feature |
Half turn hex dogging standard |
| Door Applications |
1-3/4″ Thick Doors |
| Fasteners |
Includes screws for metal and wood doors |
| Finish |
Satin BrassBright BrassSatin BronzeAnodized AluminumSatin ChromeBright ChromeBlackDark BronzeSatin Chrome AM (Antimicrobial)Aged Bronze |
| Finishes |
313 Duranodic Dark BronzeUS4 (606) Satin BrassUS26 (625) Bright ChromeUS26D (626) Satin ChromeUS26D-AM (626AM) Satin Chrome AntimicrobialUS10 (612) Satin BronzeUS28 (628) Anodized Aluminum643e Aged BronzeUS19 (315) Flat BlackUS3 (605) Bright Brass |
| Fire Rating |
Non-Fire-Rated |
| Hand |
Non-handed |
| Includes Trim |
No |
| Latchbolt |
Deadlatching 3/4" throw |

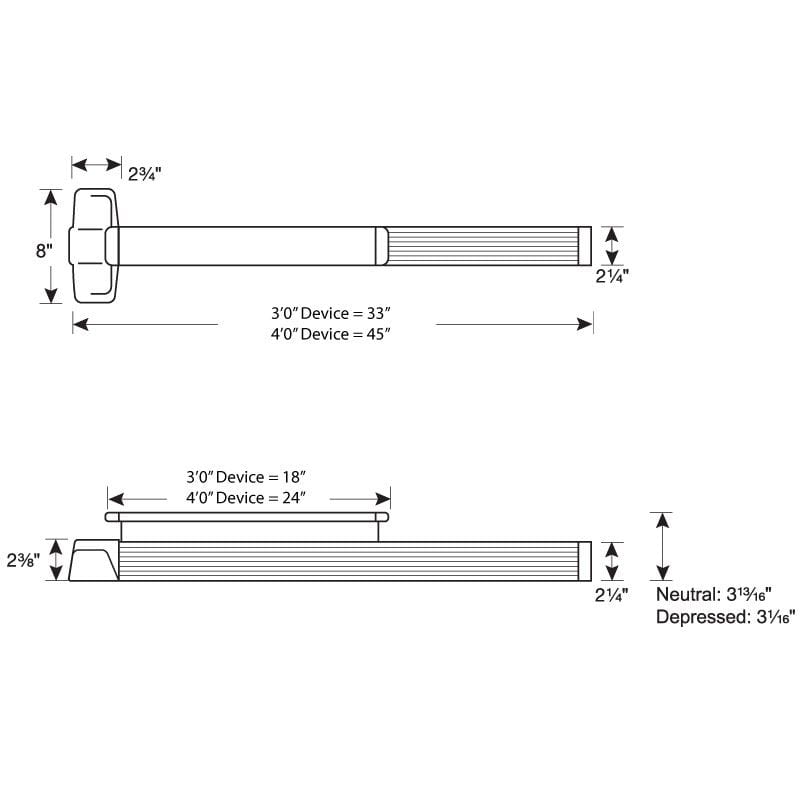

| Length |
4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |
| Strike |
299 roller strike standard |
| Usage |
Heavy Duty |
