Schlage

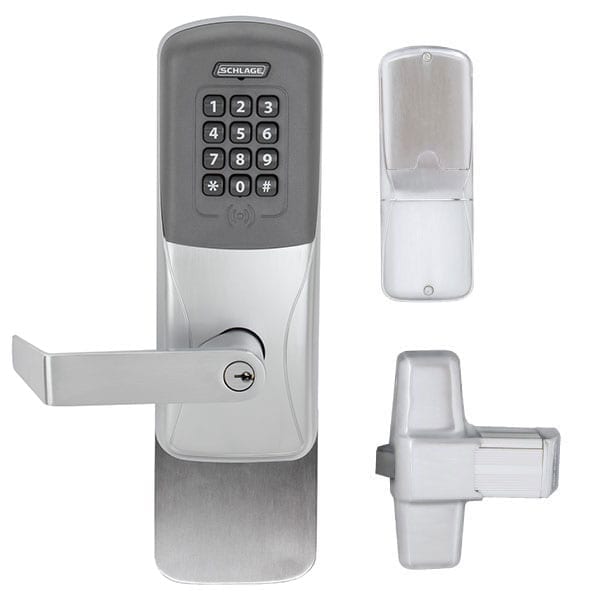

Schlage CO-200-993R-70-PRK-RHO Electronic Rim Exit Device Trim with Proximity Card Reader and Keypad

$1,502.33
This item ships FREE! Usually Ships:  1-2 Business Days
  • Standalone Electronic Exit Device Trim
  • Computer or Manually Programmable
  • Proximity Reader, Keypad, and Key Override

Available Options:

Clear

Product Overview

Schlage CO-200-993R-70-PRK-RHO CO-200 Standalone Electronic Lock, Rim/Concealed Exit Device Trim, Classroom Function, Proximity Reader and Keypad, Rhodes Style Lever, With Schlage Standard Cylinder

The CO Series offers 993 Exit Trim for use with compatible exit devices in retrofit or new construction applications. The 993 Exit Trim was designed to suite with CO Series cylindrical and mortise locksets to ensure that the facility remains aesthetically consistent. The CO Series 993 Exit Trim utilizes universal hardware to simplify the installation of offline trim to a variety of exit devices, including rim style from Von Duprin and Falcon.

70 - Storeroom Function: Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status.

  • Panic Device Sold Separately
  • 4 AA batteries included - up to 2-year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Stores up to 2,000 users with audit trail of up to 2,000 events (Depending on access control software capability)
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified

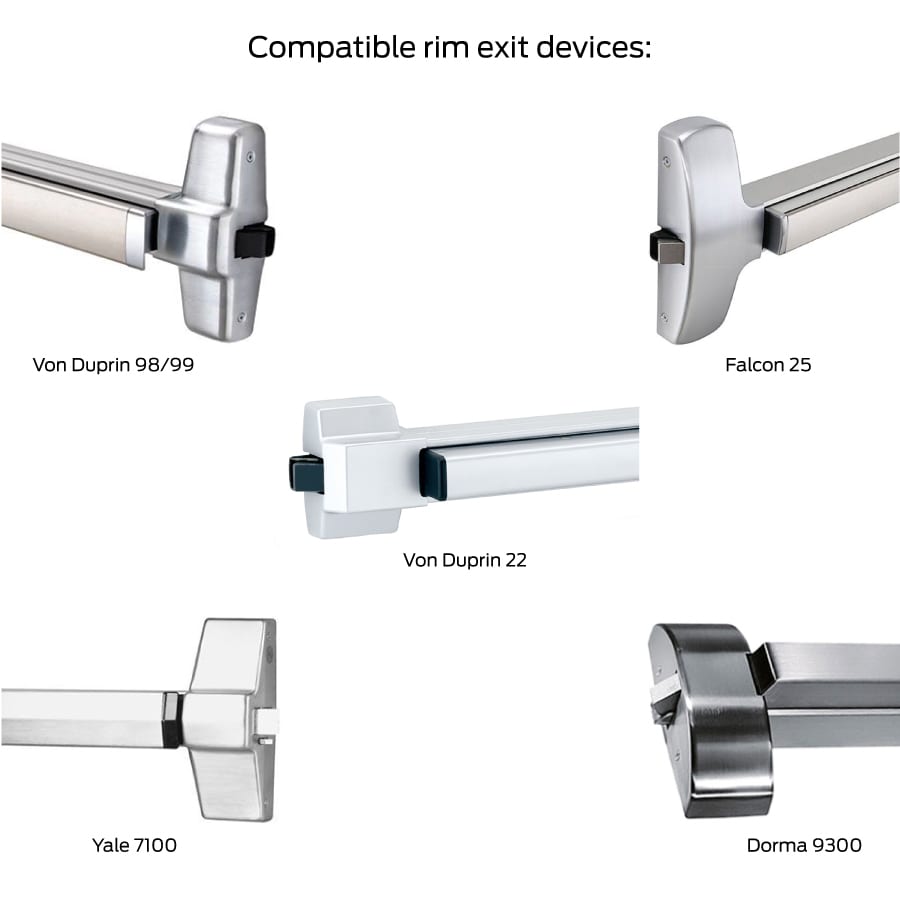

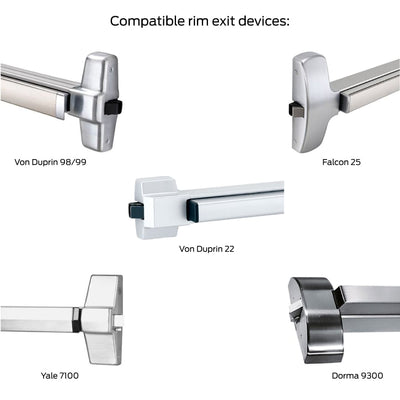

Device Combability:

Battery Life

Up to 2 yrs with 4 AA batteries
Brand

Schlage
Certifications

ANSI/BHMA A156.25 ANSI/BHMA Grade 1 UL 294
Cylinder Format

Conventional
Door Thickness

1-3/4"
Finish

Satin ChromeAged Bronze
Finishes

626 Satin Chrome643e Aged Bronze
Fire Rating

UL Listed
Handing

Non-Handed
Keyway

Schlage S123 KeywaySchlage C Keyway
Lever Design

RHO (Rhodes)
Lock Function

Exit Device Trim
Lock Type

Exit Device Trim
Power

4 AA batteries
Reader Type

ProximityKeypad
Usage

Heavy Duty
Users

Up to 2000
Schlage_CO-Series_for_Exit_Device_Installation_Instructions_102297 Schlage_CO-200_Offline_Lock_User_Guide_-_English_104209 How to Install Von Duprin 98/99 Rim Exit Device
